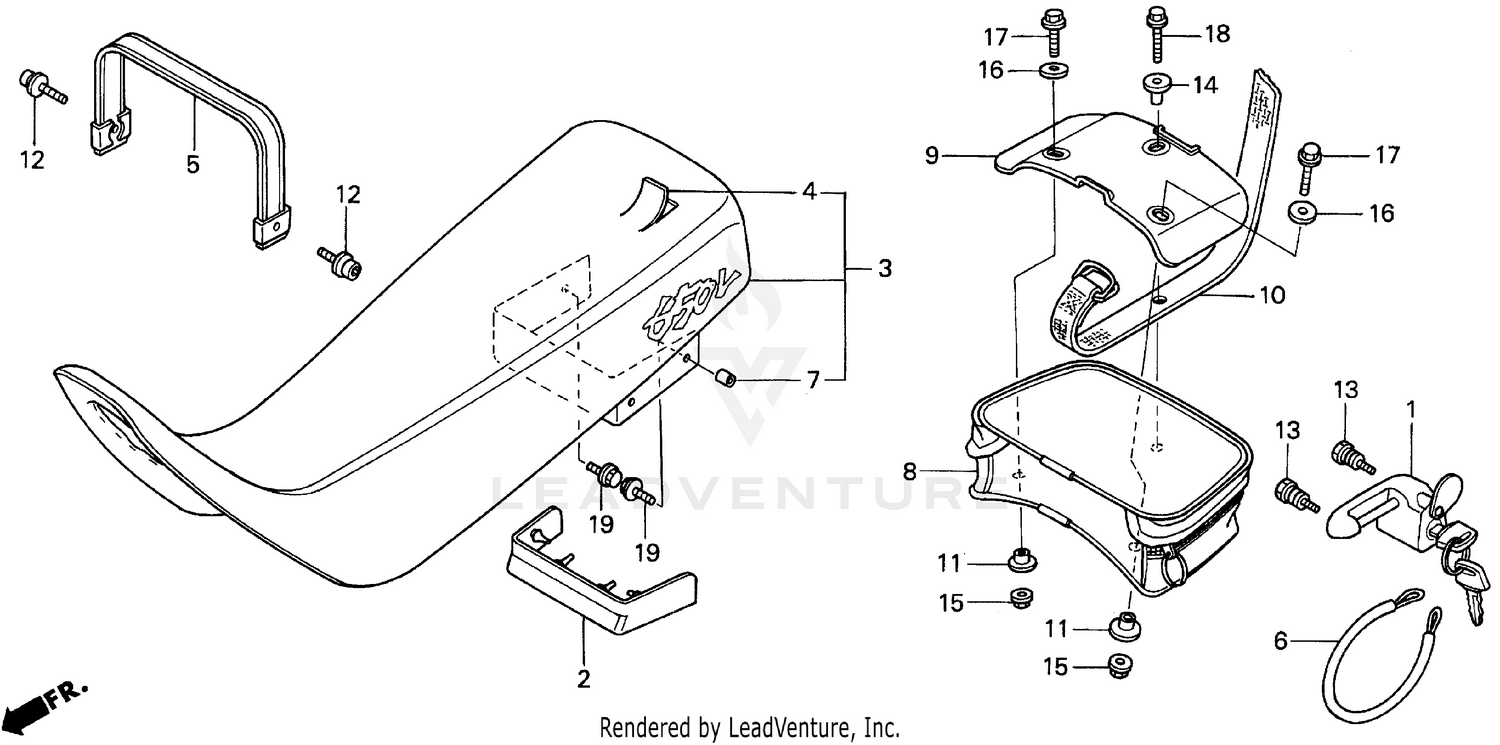

Seat Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
HOLDER ASSY., HELMET
50710-382-671
|
$82.36 | ||
|
Available to order. Add to View Price |
|||
|
#2
RUBBER, SEAT (LOWER)
77120-MK2-670
|
$26.31 | ||
|
Available to order. Add to View Price |
|||
|
#3
SEAT (TYPE1)
77200-MY6-A10ZA
Superseded by 77200-MY6-A20ZA
|
$438.11 | ||
|
Available to order. Add to View Price |
|||
|
#3
SEAT (TYPE1)
77200-MY6-770
Superseded by 77200-MY6-A20ZA
|
$438.11 | ||
|
Unavailable |
|||
|
#3
SEAT (TYPE1)
77200-MY6-700
Superseded by 77200-MY6-A20ZA
|
$438.11 | ||
|
Unavailable |
|||
|
#4
COVER, SEAT
77201-MY6-309
|
$162.35 | ||
|
Unavailable |
|||
|
#5
SEAT BELT
77210-MY6-670
|
$36.11 | ||
|
Available to order. Add to View Price |
|||
|
#6
WIRE, TAIL BAG LOCK
77236-KV6-000
|
$13.62 | ||
|
Available to order. Add to View Price |
|||
|
#7
COLLAR, RR. FENDER
80108-ME4-000
|
$3.09 | ||
|
Available to order. Add to View Price |
|||
|
#8
BAG, TAIL
83501-MY6-670
Superseded by 83501-MY6-A90
|
$135.13 | ||
|
Available to order. Add to View Price |
|||
|
#9
PLATE, TAIL BAG (LOWER)
83502-KN5-670
|
$21.07 | ||
|
Available to order. Add to View Price |
|||
|
#10
BAND, TAIL BAG
83506-KZ1-600
|
$18.89 | ||
|
Available to order. Add to View Price |
|||
|
#11
COLLAR C
90003-438-850
|
$6.35 | ||
|
Available to order. Add to View Price |
|||
|
#12
BOLT-WASHER (6X20)
90104-MY6-700
|
$4.40 | ||
|
Available to order. Add to View Price |
|||
|
#13
BOLT, HELMET HOLDER SETTING
90107-449-000
|
$4.20 | ||
|
Available to order. Add to View Price |
|||
|
#14
COLLAR (6.3X13.5)
90503-KE1-000
|
$5.62 | ||
|
Available to order. Add to View Price |
|||
|
#15
NUT, FLANGE (6MM)
94050-06000
|
$0.68 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#16
WASHER, PLAIN (6MM)
94103-06000
|
$1.03 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#17
BOLT, FLANGE (6X20)
96300-06020-00
|
$1.47 | ||
|
Available to order. Add to View Price |
|||
|
#18
BOLT, FLANGE (6X25)
96300-06025-00
|
$1.67 | ||
|
Available to order. Add to View Price |
|||
|
#19
BOLT, FLANGE (8X14)
96300-08014-00
|
$2.05 | ||
|
Available to order. Add to View Price |
|||
