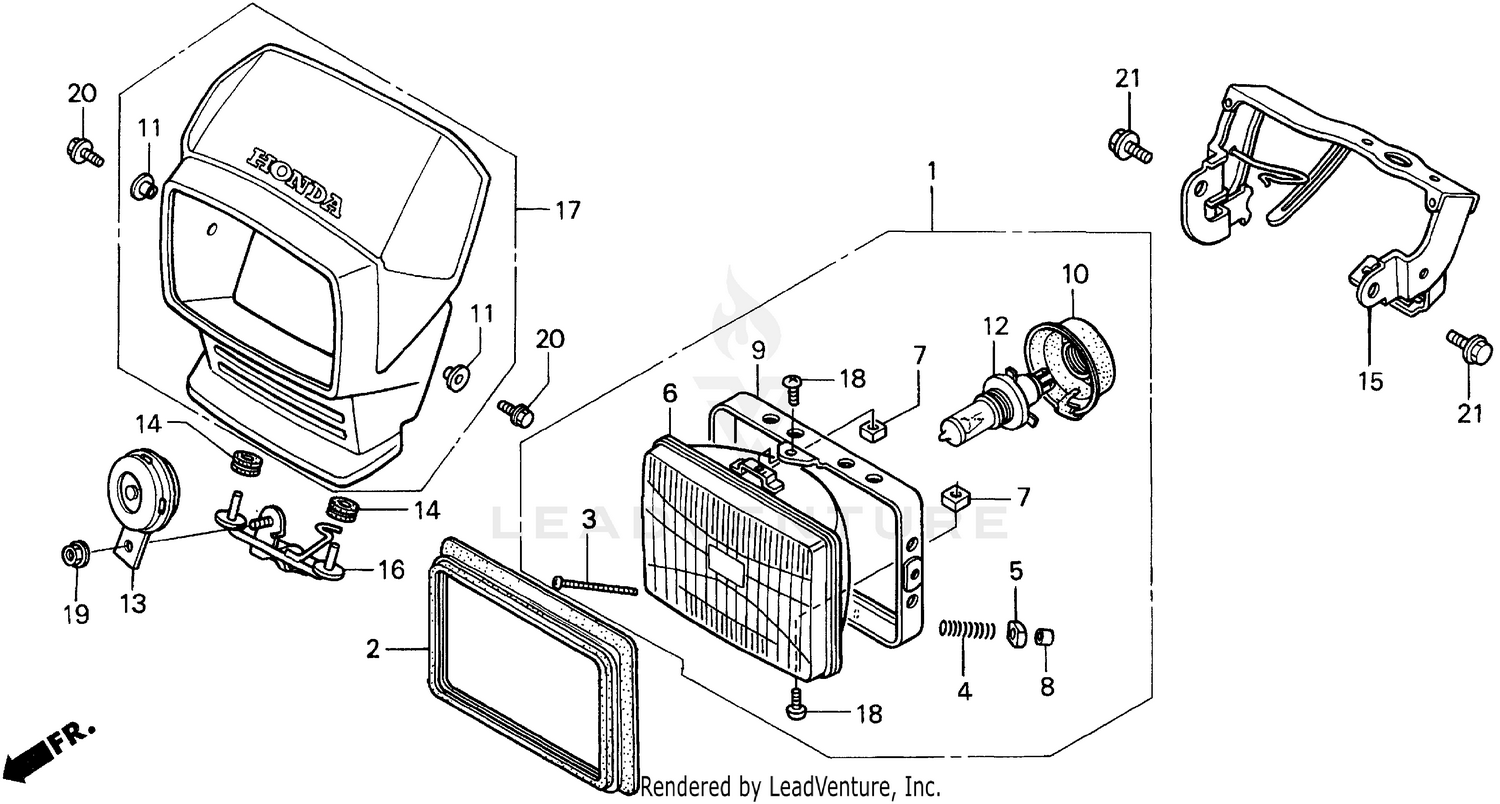

Headlight Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
HEADLIGHT ASSY. (12V 60/55W) (COO)
33100-KV6-671
Superseded by 33100-MGW-305
|
$202.64 | ||
|
Available to order. Add to View Price |
|||
|
#1
HEADLIGHT ASSY. (12V 60/55W) (COO)
33100-KV6-672
Superseded by 33100-MGW-305
|
$202.64 | ||
|
Unavailable |
|||
|
#2
GASKET, HEADLIGHT
33102-MG2-000
|
$35.55 | ||
|
Available to order. Add to View Price |
|||
|
#3
SCREW, BEAM ADJUSTING
33103-MG2-671
|
$5.96 | ||
|
Available to order. Add to View Price |
|||
|
#4
SPRING, HEADLIGHT BEAM ADJUSTING
33107-MG2-671
|
$3.33 | ||
|
Available to order. Add to View Price |
|||
|
#5
NUT, BEAM ADJUSTING (STANLEY)
33117-415-003
|
$2.55 | ||
|
Available to order. Add to View Price |
|||
|
#6
HEADLIGHT UNIT (COO)
33120-KV6-671
Superseded by 33120-MGW-305
|
$85.15 | ||
|
Available to order. Add to View Price |
|||
|
#6
HEADLIGHT UNIT (COO)
33120-KV6-672
Superseded by 33120-MGW-305
|
$85.15 | ||
|
Unavailable |
|||
|
#7
NUT, UNIT HOLDER
33128-471-003
|
$1.85 | ||
|
Available to order. Add to View Price |
|||
|
#8
COVER, SCREW
33136-426-830
|
$2.15 | ||
|
Available to order. Add to View Price |
|||
|
#9
RING, MOUNTING
33153-KV6-671
|
$45.75 | ||
|
Available to order. Add to View Price |
|||
|
#10
COVER, RUBBER
33180-471-902
|
$13.64 | ||
|
Available to order. Add to View Price |
|||
|
#11
COLLAR A, TAILLIGHT
33712-GC2-000
|
$3.82 | ||
|
Available to order. Add to View Price |
|||
|
#12
BULB, HEADLIGHT (12V 60/55W) (STANLEY)
34901-MC7-601
Superseded by 34901-MC7-602
|
$45.05 | ||
|
Available to order. Add to View Price |
|||
|
#12
BULB, HEADLIGHT (12V 60/55W) (STANLEY)
34901-MC7-601AH
Superseded by 34901-MC7-602
|
$45.05 | ||
|
Unavailable |
|||
|
#13
HORN ASSY. (HIGH)
38110-KL3-672
Superseded by 38110-KL3-673
|
$39.85 | ||
|
Available to order. Add to View Price |
|||
|
#14
GROMMET, IGNITION COVER
53133-KB4-000
|
$2.58 | ||
|
Available to order. Add to View Price |
|||
|
#15
BRACKET, HEADLIGHT
61314-MY6-670
|
$175.36 | ||
|
Available to order. Add to View Price |
|||
|
#16
STAY, FR. VISOR (LOWER)
61318-MY6-670
|
$29.53 | ||
|
Available to order. Add to View Price |
|||
|
#17
VISOR SET, FR. *NH138* (WL) (SHASTA WHITE)
87125-MY6-700ZA
|
$101.05 | ||
|
Available to order. Add to View Price |
|||
|
#18
SCREW, PAN (5X10)
93500-05010-0G
|
$0.95 | ||
|
Unavailable |
|||
|
#19
NUT, FLANGE (8MM)
94050-08070
|
$1.71 | ||
|
Available to order. Add to View Price |
|||
|
#20
BOLT, FLANGE (6X14)
96300-06014-00
|
$1.07 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#21
BOLT, FLANGE (8X12)
96300-08012-00
|
$3.24 | ||
|
Available to order. Add to View Price |
|||
