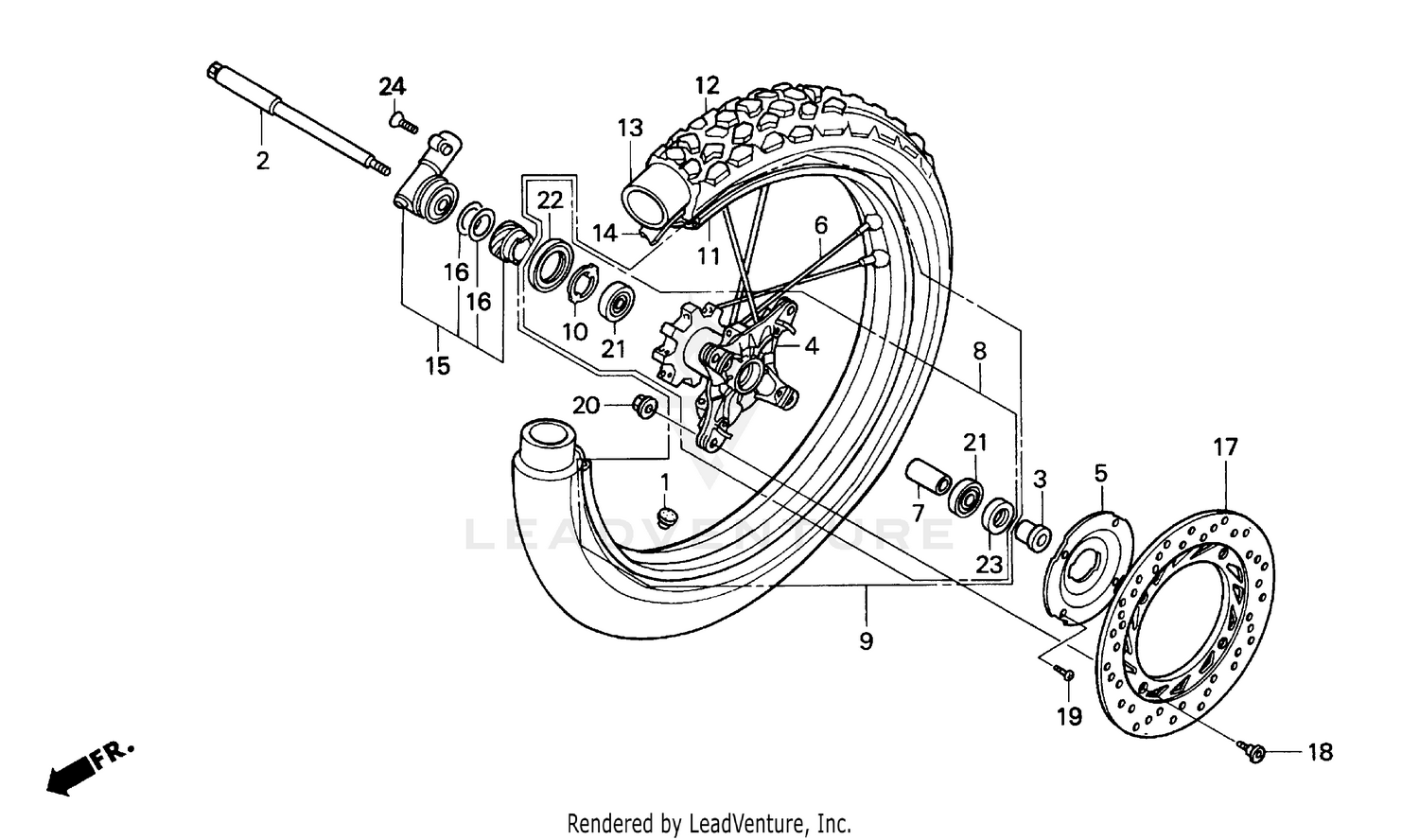

Front Wheel Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CAP, RIM HOLE
42717-329-000
|
$5.27 | ||
|
Available to order. Add to View Price |
|||
|
#2
AXLE, FR. WHEEL
44301-KAE-870
|
$77.60 | ||
|
Available to order. Add to View Price |
|||
|
#3
COLLAR, FR. WHEEL
44311-KAE-870
|
$18.69 | ||
|
Available to order. Add to View Price |
|||
|
#4
HUB, FR. WHEEL
44601-MY6-670
|
$205.11 | ||
|
Unavailable |
|||
|
#5
COVER, FR. HUB
44610-MN9-010
|
$16.42 | ||
|
Available to order. Add to View Price |
|||
|
#6
SPOKE SET, FR.
44610-MY6-405
|
$6.05 | ||
|
Available to order. Add to View Price |
|||
|
#7
COLLAR, FR. AXLE DISTANCE
44620-KAE-870
|
$15.58 | ||
|
Available to order. Add to View Price |
|||
|
#9
WHEEL SUB-ASSY., FR.
44650-MY6-305
|
$806.26 | ||
|
Available to order. Add to View Price |
|||
|
#10
RETAINER, GEAR BOX
44680-MA0-000
|
$9.31 | ||
|
Available to order. Add to View Price |
|||
|
#11
RIM, FR. WHEEL (DAIDO)
44701-MY6-671
Superseded by 44701-MY6-672
|
$321.13 | ||
|
Available to order. Add to View Price |
|||
|
#11
RIM, FR. WHEEL (DAIDO)
44701-MY6-672
|
$321.13 | ||
|
Unavailable |
|||
|
#12
TIRE, FR.
44711-MY6-671
Superseded by 44711-MY6-679
|
$139.69 | ||
|
Available to order. Add to View Price |
|||
|
#12
TIRE, FR.
44711-MY6-673
Superseded by 44711-MY6-679
|
$139.69 | ||
|
Unavailable |
|||
|
#12
TIRE, FR.
44711-MY6-675
Superseded by 44711-MY6-679
|
$139.69 | ||
|
Unavailable |
|||
|
#13
TUBE, TIRE (2.75/3.00-21) (INOUE)
0Y400-33100
Superseded by 44712-446-631
|
$12.96 | ||
|
Available to order. Add to View Price |
|||
|
#13
TUBE, TIRE (2.75/3.00-21) (INOUE)
08400-33100
Superseded by 44712-446-631
|
$12.96 | ||
|
Unavailable |
|||
|
#13
TUBE, TIRE (2.75/3.00-21) (INOUE)
08400-34010
Superseded by 44712-446-631
|
$12.96 | ||
|
Unavailable |
|||
|
#13
TUBE, TIRE (2.75/3.00-21) (INOUE)
44712-MC4-005
Superseded by 44712-446-631
|
$12.96 | ||
|
Unavailable |
|||
|
#13
TUBE, TIRE (2.75/3.00-21) (INOUE)
44712-340-003
Superseded by 44712-446-631
|
$12.96 | ||
|
Unavailable |
|||
|
#13
TUBE, TIRE (2.75/3.00-21) (INOUE)
44712-400-004
Superseded by 44712-446-631
|
$12.96 | ||
|
Unavailable |
|||
|
#13
TUBE, TIRE (2.75/3.00-21) (INOUE)
44712-437-971
Superseded by 44712-446-631
|
$12.96 | ||
|
Unavailable |
|||
|
#13
TUBE, TIRE (2.75/3.00-21) (INOUE)
44712-446-003
Superseded by 44712-446-631
|
$12.96 | ||
|
Unavailable |
|||
|
#13
TUBE, TIRE (2.75/3.00-21) (INOUE)
44712-446-631
|
$12.96 | ||
|
Unavailable |
|||
|
#14
FLAP, TIRE (1.40/1.60-21) (DUNLOP)
44713-400-004
|
$7.44 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#15
BOX ASSY., SPEEDOMETER GEAR
44800-MY6-771
|
$125.58 | ||
|
Available to order. Add to View Price |
|||
|
#16
WASHER, SPEEDOMETER GEAR
44809-402-000
|
$2.67 | ||
|
Available to order. Add to View Price |
|||
|
#17
DISK, FR. BRAKE
45351-MN9-020
|
$303.62 | ||
|
Available to order. Add to View Price |
|||
|
#18
BOLT, RR. DISK (8X22)
90105-ML0-730
|
$7.60 | ||
|
Available to order. Add to View Price |
|||
|
#19
SCREW, OVAL (4X10)
90204-MM9-000
|
$2.73 | ||
|
Available to order. Add to View Price |
|||
|
#20
NUT, FLANGE (8MM)
90309-ML4-901
Superseded by 90309-MR1-770
|
$3.91 | ||
|
Available to order. Add to View Price |
|||
|
#20
NUT, FLANGE (8MM)
90309-MR1-770
|
$3.91 | ||
|
Unavailable |
|||
|
#21
BEARING, RADIAL BALL (6003-SH2)
91065-KA3-832
|
$18.49 | ||
|
Available to order. Add to View Price |
|||
|
#22
DUST SEAL (40X50X5) (ARAI)
91258-410-013
|
$11.87 | ||
|
Available to order. Add to View Price |
|||
|
#23
DUST SEAL (24X37X7) (NOK)
91259-KS6-831
|
$11.15 | ||
|
Available to order. Add to View Price |
|||
|
#24
SCREW, OVAL (5X20)
93700-05020-0G
|
$0.60 | ||
|
Available to order. Add to View Price |
|||
