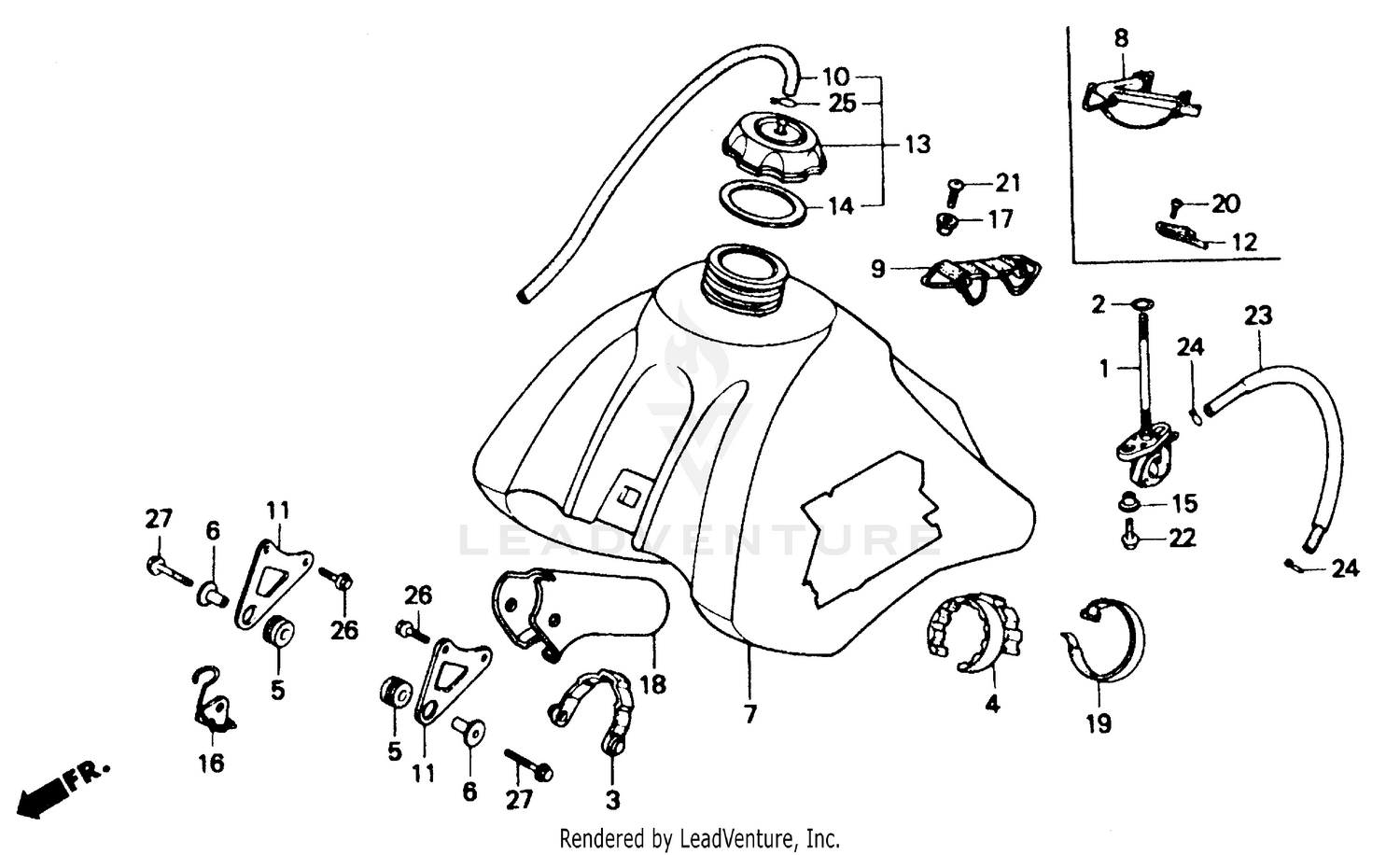

Fuel Tank Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
PETCOCK ASSY.
16950-MN1-871
|
$103.15 | ||
|
Available to order. Add to View Price |
|||
|
#1
PETCOCK ASSY.
16950-MN1-870
Superseded by 16950-MN1-871
|
$103.15 | ||
|
Unavailable |
|||
|
#2
O-RING (11.8X3.55)
16997-467-000
|
$2.53 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#3
RUBBER A, TANK SETTING
17503-MK2-670
|
$22.24 | ||
|
Available to order. Add to View Price |
|||
|
#4
RUBBER B, TANK SETTING
17504-MN1-670
|
$16.07 | ||
|
Available to order. Add to View Price |
|||
|
#5
RUBBER, TANK SETTING
17508-KN5-670
|
$2.96 | ||
|
Available to order. Add to View Price |
|||
|
#5
RUBBER, TANK MOUNTING
17508-MN1-670
Superseded by 17508-KN5-670
|
$2.96 | ||
|
Unavailable |
|||
|
#6
COLLAR, TANK SETTING
17509-MN1-670
|
$8.74 | ||
|
Available to order. Add to View Price |
|||
|
#7
TANK SUB-ASSY., FUEL *R119* (WL) (FLASH RED)
17520-MN1-870ZA
|
$458.89 | ||
|
Unavailable |
|||
|
#9
BAND, RR. TANK
17516-MN1-670
|
$21.87 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#10
TUBE, FUEL CAP BREATHER
17521-429-000
|
$8.76 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#11
PLATE, FR. TANK
17522-MN1-670
|
$17.76 | ||
|
Available to order. Add to View Price |
|||
|
#13
CAP ASSY., FUEL TANK
17620-KT1-780
|
$38.56 | ||
|
Available to order. Add to View Price |
|||
|
#14
GASKET, FUEL CAP
17624-KT1-780
Superseded by 17624-KT1-781
|
$6.05 | ||
|
Available to order. Add to View Price |
|||
|
#15
COLLAR, TANK SETTING
17626-MN1-670
|
$3.10 | ||
|
Available to order. Add to View Price |
|||
|
#16
GUIDE, CLUTCH CABLE
22878-MK2-670
|
$9.62 | ||
|
Unavailable |
|||
|
#17
COLLAR B, TAILLIGHT
33713-GC2-000
|
$4.24 | ||
|
Available to order. Add to View Price |
|||
|
#18
COVER, MAIN PIPE HEAT
50180-MK2-670
|
$25.10 | ||
|
Unavailable |
|||
|
#19
BAND, WIRE
90130-KA4-000
|
$3.05 | ||
|
Unavailable |
|||
|
#21
SCREW, PAN (6X16)
93500-06016-0A
|
$1.20 | ||
|
Available to order. Add to View Price |
|||
|
#22
BOLT, FLANGE (6X14)
96001-06014-00
|
$1.88 | ||
|
Available to order. Add to View Price |
|||
|
#23
TUBE, FUEL (7.3MM)
17524-MN1-670
|
$9.25 | ||
|
Unavailable |
|||
|
#24
CLIP, TUBE (B12)
95002-02120
|
$2.03 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#25
CLIP, TUBE (C9)
95002-50000
|
$1.32 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#26
BOLT, FLANGE (6X20)
96300-06020-00
|
$1.47 | ||
|
Available to order. Add to View Price |
|||
|
#27
BOLT, FLANGE (6X30)
96300-06030-00
|
$2.29 | ||
|
Available to order. Add to View Price |
|||
