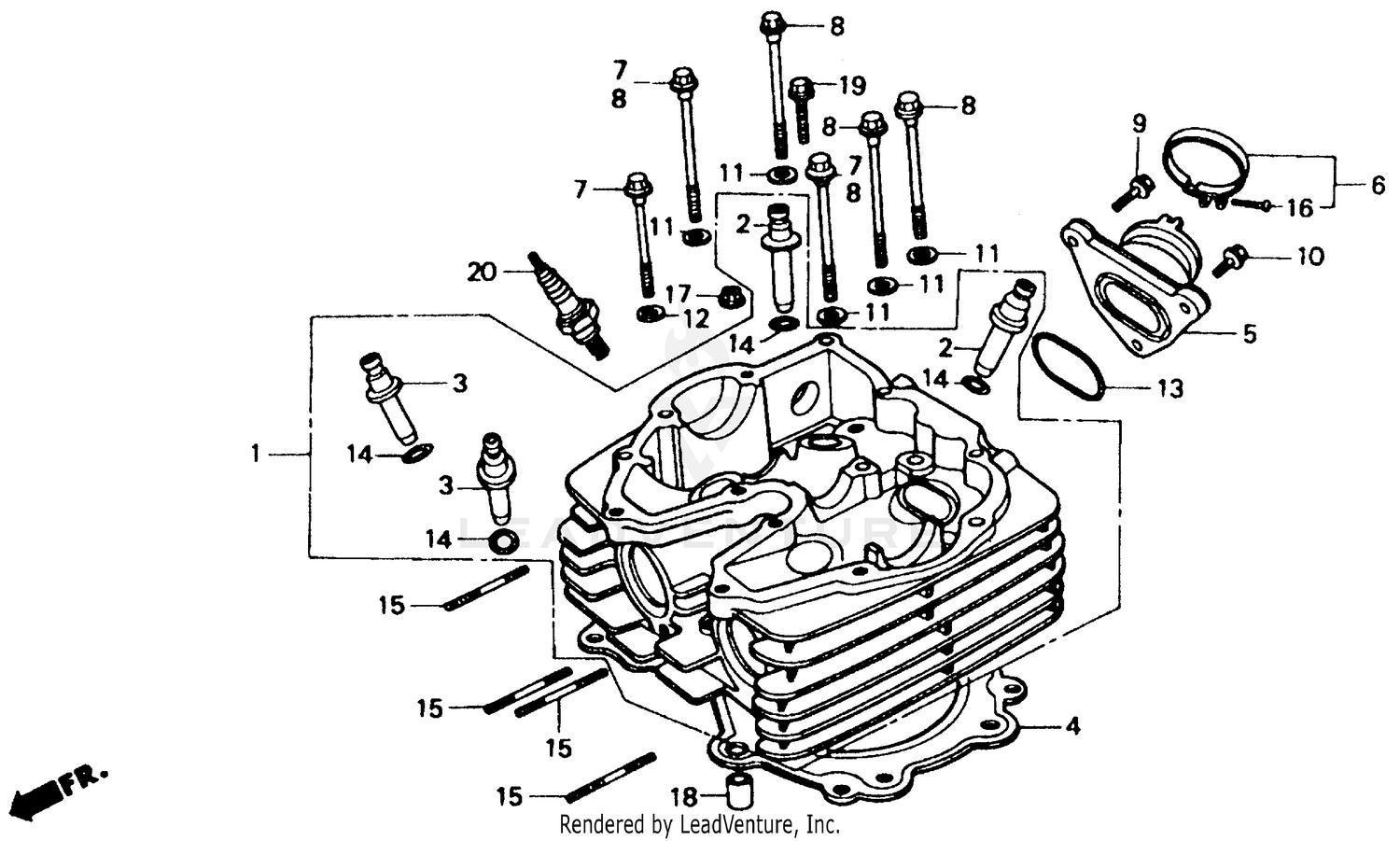

Cylinder Head 88-92 Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CYLINDER HEAD
12200-MN1-671
|
$682.53 | ||
|
Unavailable |
|||
|
#2
GUIDE, IN. VALVE (OS)
12231-MG2-306
|
$21.87 | ||
|
Available to order. Add to View Price |
|||
|
#3
GUIDE, EX. VALVE (OS)
12241-MG2-306
|
$21.87 | ||
|
Available to order. Add to View Price |
|||
|
#4
GASKET, CYLINDER HEAD
12251-MN1-671
|
$49.16 | ||
|
Available to order. Add to View Price |
|||
|
#5
INSULATOR, CARBURETOR
16211-MN1-671
|
$71.91 | ||
|
Available to order. Add to View Price |
|||
|
#6
BAND, CARBURETOR INSULATOR
16219-MN1-670
|
$8.97 | ||
|
Unavailable |
|||
|
#7
BOLT, FLANGE (9X83)
90081-MN9-000
|
$18.69 | ||
|
Available to order. Add to View Price |
|||
|
#8
BOLT, FLANGE (9X110)
90082-MN9-000
|
$21.95 | ||
|
Available to order. Add to View Price |
|||
|
#9
BOLT, FLANGE SOCKET (6X25)
90091-KF0-000
|
$4.65 | ||
|
Available to order. Add to View Price |
|||
|
#10
BOLT, SPECIAL FLANGE SOCKET (6X20)
90097-MN1-670
|
$3.98 | ||
|
Available to order. Add to View Price |
|||
|
#11
WASHER, PLAIN (9MM)
90501-MN1-670
|
$5.24 | ||
|
Available to order. Add to View Price |
|||
|
#12
WASHER, PLAIN (9MM)
90502-MN9-000
|
$10.91 | ||
|
Available to order. Add to View Price |
|||
|
#13
O-RING, SPECIAL (ARAI)
91301-MK4-601
|
$15.40 | ||
|
Available to order. Add to View Price |
|||
|
#14
O-RING (10X1.6)
91301-200-000
|
$3.78 | ||
|
Available to order. Add to View Price |
|||
|
#15
BOLT, STUD (8X40)
92700-08040-0B
|
$2.22 | ||
|
Available to order. Add to View Price |
|||
|
#16
SCREW, PAN (5X28)
93500-05028-0G
|
$0.78 | ||
|
Available to order. Add to View Price |
|||
|
#17
NUT, FLANGE (6MM)
94050-06000
|
$0.68 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#18
PIN, DOWEL (12X20)
94301-12200
|
$2.58 | ||
|
Available to order. Add to View Price |
|||
|
#19
BOLT, FLANGE (6X32)
96000-06032-00
Superseded by 96001-06032-00
|
$1.60 | ||
|
Available to order. Add to View Price |
|||
|
#19
BOLT, FLANGE (6X32)
96001-06032-00
|
$1.60 | ||
|
Unavailable |
|||
|
#20
SPARK PLUG (DPR7EA-9) (NGK)
98069-57916
|
$2.91 | ||
|
Unavailable |
|||
|
#20
SPARK PLUG (X22EPR-U9) (DENSO)
98069-57926
|
$2.80 | ||
|
Available to order. Add to View Price |
|||
|
#20
SPARK PLUG (DPR8EA-9) (NGK)
98069-58916
|
$2.91 | ||
|
Unavailable |
|||
|
#20
SPARK PLUG (X24EPR-U9) (DENSO)
98069-58926
|
$2.80 | ||
|
Unavailable |
|||
|
#20
SPARK PLUG (DPR9EA-9) (NGK)
98069-59916
|
$2.91 | ||
|
Unavailable |
|||
|
#20
SPARK PLUG (X27EPR-U9) (DENSO)
98069-59926
|
$2.80 | ||
|
Available to order. Add to View Price |
|||
