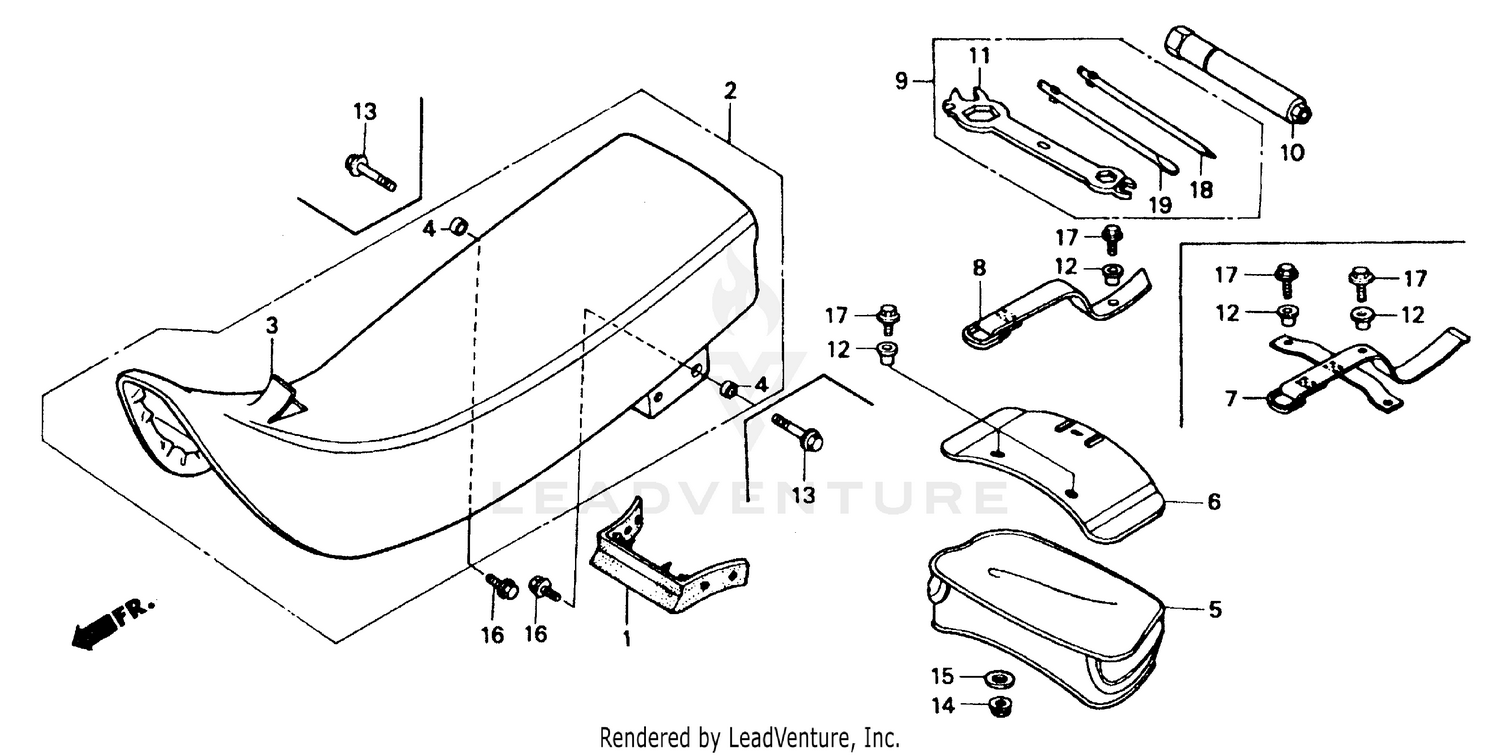

Seat Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
RUBBER, SEAT (LOWER)
77120-MK2-670
|
$26.31 | ||
|
Available to order. Add to View Price |
|||
|
#2
SEAT ASSY.
77200-KN5-670
Superseded by 77200-KN5-P00
|
$251.01 | ||
|
Unavailable |
|||
|
#4
COLLAR, RR. FENDER
80108-ME4-000
|
$3.09 | ||
|
Available to order. Add to View Price |
|||
|
#5
BAG, TAIL
83501-KN5-670
|
$57.87 | ||
|
Unavailable |
|||
|
#6
PLATE, TAIL BAG (LOWER)
83502-KN5-670
|
$21.07 | ||
|
Available to order. Add to View Price |
|||
|
#7
BAND, TAIL BAG
83506-KN5-670
|
$23.00 | ||
|
Unavailable |
|||
|
#9
TOOL SET
89010-KF0-000
|
$27.00 | ||
|
Unavailable |
|||
|
#10
WRENCH, PLUG
89216-MB0-000
|
$32.07 | ||
|
Available to order. Add to View Price |
|||
|
#11
WRENCH, EYE (24MM)
89225-KF0-000
|
$55.01 | ||
|
Unavailable |
|||
|
#12
COLLAR C
90003-438-850
|
$6.35 | ||
|
Available to order. Add to View Price |
|||
|
#13
BOLT, FLANGE (8X12)
90190-MG3-000
|
$4.49 | ||
|
Available to order. Add to View Price |
|||
|
#14
NUT, FLANGE (6MM)
94050-06000
|
$0.68 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#15
WASHER, PLAIN (6MM)
94103-06000
|
$1.03 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#17
BOLT, FLANGE (6X20)
96300-06020-00
|
$1.47 | ||
|
Available to order. Add to View Price |
|||
|
#18
DRIVER 1, PLUS SCREW (NO.2)
99003-10000
|
$4.12 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#19
DRIVER 3, MINUS SCREW (NO.2)
99003-30000
|
$4.12 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
