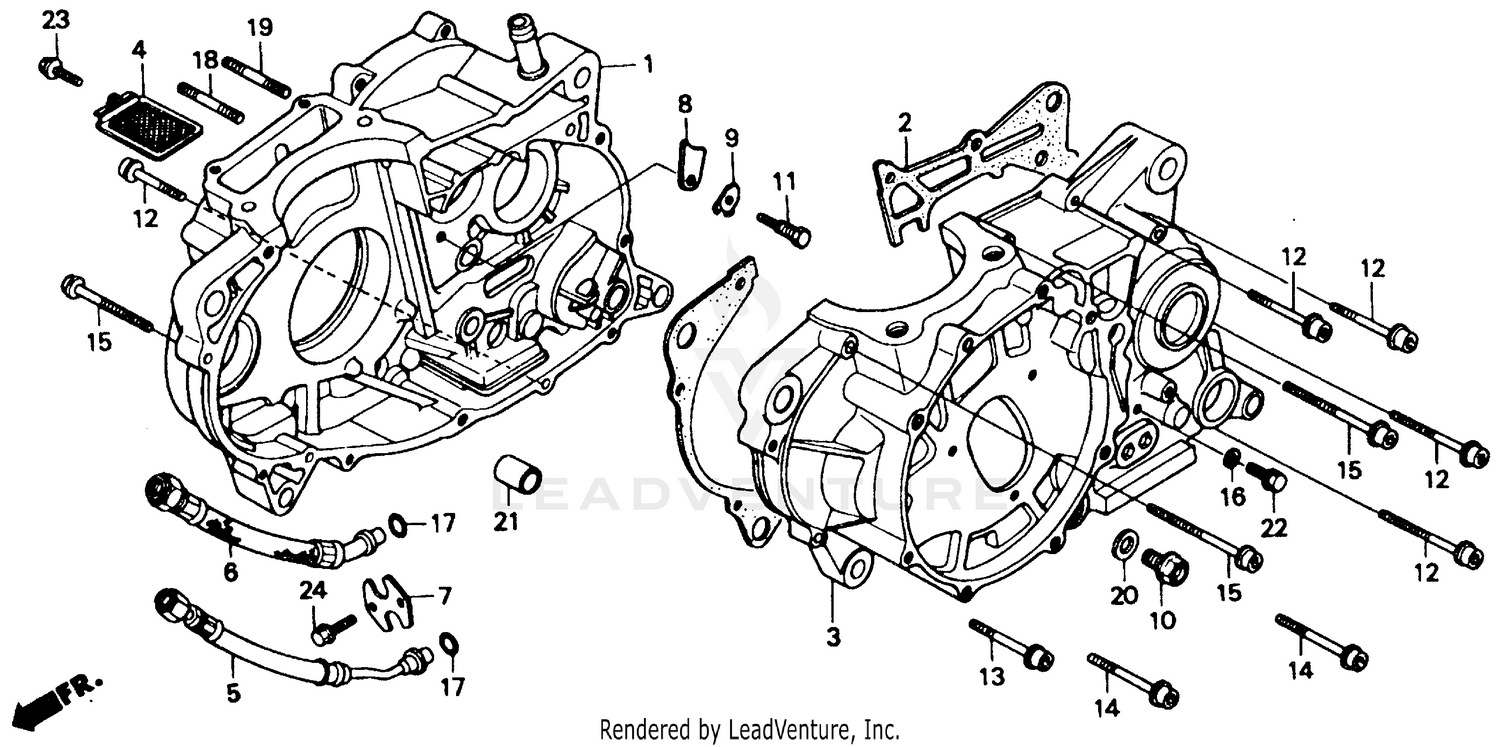

Crankcase Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CRANKCASE, R.
11100-MK2-000
Superseded by 11100-MK2-020
|
$401.95 | ||
|
Unavailable |
|||
|
#1
CRANKCASE, R.
11100-MK2-010
Superseded by 11100-MK2-020
|
$401.95 | ||
|
Unavailable |
|||
|
#1
CRANKCASE, R.
11100-MK2-020
|
$401.95 | ||
|
Unavailable |
|||
|
#2
GASKET, CRANKCASE
11191-MK2-000
Superseded by 11191-MN1-702
|
$29.16 | ||
|
Available to order. Add to View Price |
|||
|
#2
GASKET, CRANKCASE
11191-MK2-306
Superseded by 11191-MN1-702
|
$29.16 | ||
|
Unavailable |
|||
|
#2
GASKET, CRANKCASE
11191-MN9-920
Superseded by 11191-MN1-702
|
$29.16 | ||
|
Unavailable |
|||
|
#2
GASKET, CRANKCASE
11191-MN1-700
Superseded by 11191-MN1-702
|
$29.16 | ||
|
Unavailable |
|||
|
#3
CRANKCASE, L.
11200-MK2-000
|
$443.77 | ||
|
Unavailable |
|||
|
#4
SCREEN, OIL FILTER (KOYO)
15421-MG3-000
Superseded by 15421-MN1-671
|
$13.36 | ||
|
Available to order. Add to View Price |
|||
|
#4
SCREEN, OIL FILTER (KOYO)
15421-MG3-003
Superseded by 15421-MN1-671
|
$13.36 | ||
|
Unavailable |
|||
|
#4
SCREEN, OIL FILTER (KOYO)
15421-MN1-671
|
$13.36 | ||
|
Unavailable |
|||
|
#5
HOSE, OIL (A) (NOT AVAILABLE)
15610-MG3-003
|
$59.78 | ||
|
Unavailable |
|||
|
#6
HOSE B
15620-MG3-003
|
$41.04 | ||
|
Unavailable |
|||
|
#7
PLATE
15630-MG3-000
|
$8.04 | ||
|
Unavailable |
|||
|
#8
PLATE
23521-MG3-000
|
$4.07 | ||
|
Available to order. Add to View Price |
|||
|
#9
WASHER, LOCK (8MM)
23523-MG2-790
|
$3.65 | ||
|
Available to order. Add to View Price |
|||
|
#10
BOLT, SPECIAL (12MM)
90015-KA3-711
|
$8.16 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#11
BOLT, SPECIAL (8MM)
90088-MG3-000
|
$7.20 | ||
|
Available to order. Add to View Price |
|||
|
#12
BOLT, FLANGE SOCKET (6X32)
90091-MG3-000
|
$4.65 | ||
|
Available to order. Add to View Price |
|||
|
#13
BOLT, FLANGE SOCKET (6X40)
90093-KF0-000
|
$5.45 | ||
|
Available to order. Add to View Price |
|||
|
#14
BOLT, FLANGE SOCKET (6X45)
90093-MG3-000
|
$5.58 | ||
|
Available to order. Add to View Price |
|||
|
#15
BOLT, FLANGE SOCKET (6X50)
90094-MG3-000
|
$3.12 | ||
|
Unavailable |
|||
|
#16
WASHER, SPECIAL (10MM)
90544-KE6-843
|
|||
|
Unavailable |
|||
|
#16
WASHER, SEALING (14MM)
90544-KF0-000
|
$4.09 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#17
GASKET, RUBBER (10.5MM)
91302-MG2-790
Superseded by 91302-MG2-792
|
$5.09 | ||
|
Available to order. Add to View Price |
|||
|
#17
GASKET, RUBBER (10.5MM)
91302-MG2-791
Superseded by 91302-MG2-792
|
$5.09 | ||
|
Unavailable |
|||
|
#17
GASKET, RUBBER (10.5MM)
91302-MG2-792
|
$5.09 | ||
|
Unavailable |
|||
|
#18
BOLT, STUD (6X25)
92700-06035-0E
Superseded by 92900-06025-0E
|
$1.18 | ||
|
Available to order. Add to View Price |
|||
|
#18
BOLT, STUD (6X25)
92900-06025-0E
|
$1.18 | ||
|
Unavailable |
|||
|
#19
BOLT, STUD (6X35)
92900-06035-0E
|
$1.85 | ||
|
Available to order. Add to View Price |
|||
|
#20
WASHER, DRAIN PLUG (12MM)
94109-12000
|
$1.28 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#21
PIN, DOWEL (14X20)
94301-14200
|
$2.58 | ||
|
Available to order. Add to View Price |
|||
|
#22
BOLT, FLANGE (10X20)
95700-10016-07
Superseded by 95701-10020-00
|
$2.28 | ||
|
Available to order. Add to View Price |
|||
|
#22
BOLT, FLANGE (10X20)
95700-10020
Superseded by 95701-10020-00
|
$2.28 | ||
|
Unavailable |
|||
|
#22
BOLT, FLANGE (10X20)
95700-10020-00
Superseded by 95701-10020-00
|
$2.28 | ||
|
Unavailable |
|||
|
#22
BOLT, FLANGE (10X20)
95701-10020-00
|
$2.28 | ||
|
Unavailable |
|||
|
#23
BOLT, FLANGE (6X12)
96000-06012-00
Superseded by 96001-06012-00
|
$1.88 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#23
BOLT, FLANGE (6X12)
96001-06012-00
|
$1.88 | ||
|
Unavailable |
|||
|
#24
BOLT, FLANGE (6X16)
96000-06016-07
Superseded by 96001-06016-07
|
$1.20 | ||
|
Available to order. Add to View Price |
|||
|
#24
BOLT, FLANGE (6X16)
96001-06016-07
|
$1.20 | ||
|
Unavailable |
|||
