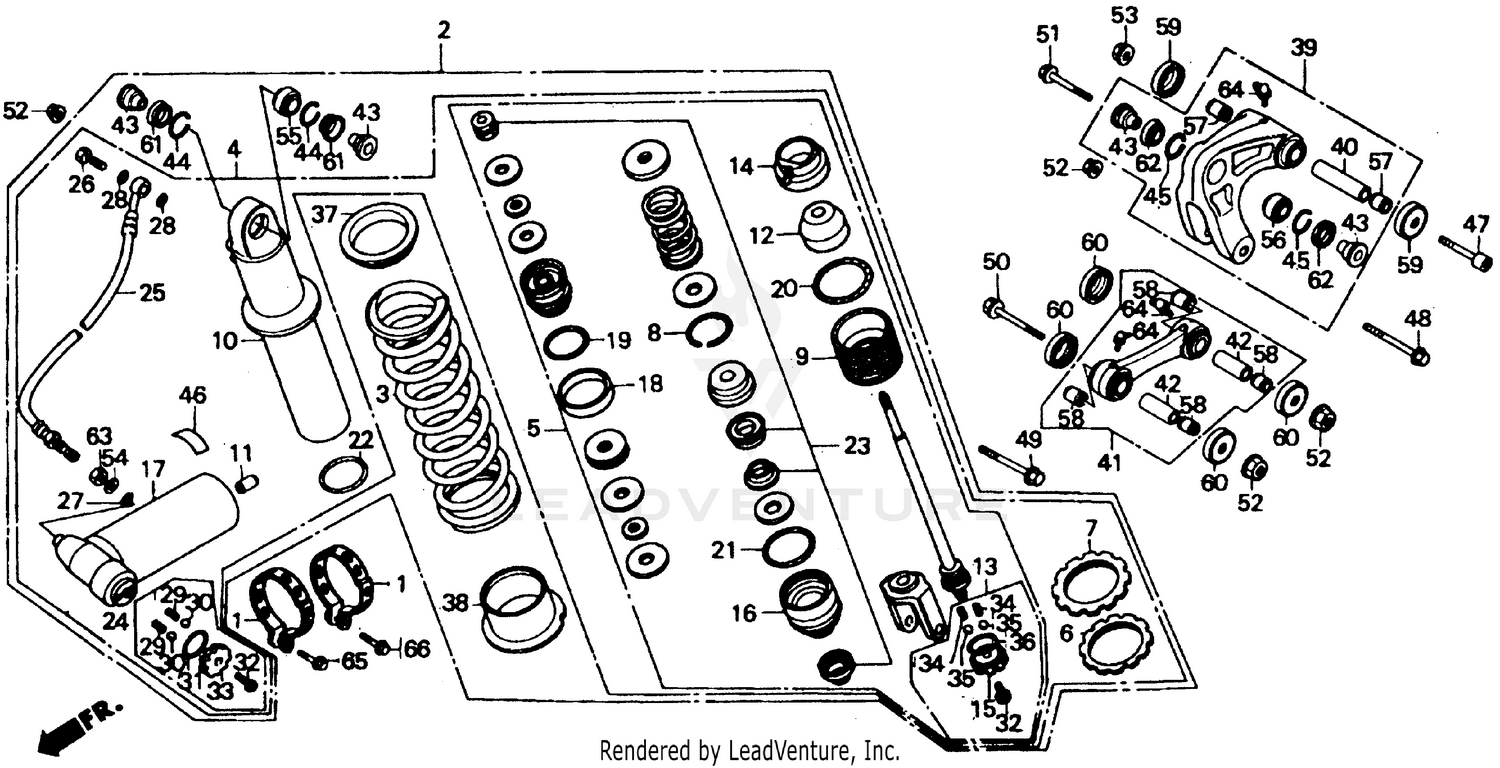

Shock Absorber 85-87 Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
BAND, SUB-TANK
50252-MK2-770
|
$18.22 | ||
|
Unavailable |
|||
|
#2
SHOCK ABSORBER ASSY., RR.
52400-MK2-771
|
$1,154.29 | ||
|
Unavailable |
|||
|
#3
SPRING, RR. SHOCK ABSORBER
52401-MK2-003
|
|||
|
Unavailable |
|||
|
#4
DAMPER, RR.
52410-MK2-771
|
$820.62 | ||
|
Unavailable |
|||
|
#5
ROD, PISTON
52421-MK2-771
|
$244.06 | ||
|
Unavailable |
|||
|
#6
ADJUSTER, SPRING
52422-KN5-003
|
$26.03 | ||
|
Unavailable |
|||
|
#7
NUT, ADJUSTER
52423-KA3-711
|
$25.55 | ||
|
Unavailable |
|||
|
#8
RING D, STOPPER
52423-MK2-771
|
$2.79 | ||
|
Unavailable |
|||
|
#9
SEAT, SPRING
52424-MK2-771
|
$26.03 | ||
|
Unavailable |
|||
|
#10
CASE, SHOCK ABSORBER
52425-MK2-771
|
$285.01 | ||
|
Unavailable |
|||
|
#11
CAP, AIR VALVE
52425-381-771
|
$6.35 | ||
|
Available to order. Add to View Price |
|||
|
#12
RUBBER, STOPPER (NOT AVAILABLE)
52427-MK2-771
|
$4.00 | ||
|
Unavailable |
|||
|
#13
PLATE SET, ADJUSTING (NOT AVAILABLE)
52428-KN5-003
|
$21.08 | ||
|
Unavailable |
|||
|
#14
PLATE, END
52428-MK2-771
|
$14.20 | ||
|
Unavailable |
|||
|
#15
PLATE, ADJUSTING
52429-KN5-003
|
$8.21 | ||
|
Unavailable |
|||
|
#16
CASE, ROD GUIDE (NOT AVAILABLE)
52429-MK2-771
|
$18.05 | ||
|
Unavailable |
|||
|
#17
TANK ASSY., RESERVOIR (NOT AVAILABLE)
52430-MK2-003
|
$118.34 | ||
|
Unavailable |
|||
|
#18
RING, PISTON
52431-KF0-003
|
$12.14 | ||
|
Available to order. Add to View Price |
|||
|
#19
O-RING C (2.0X29.5)
52432-KF0-003
|
$3.78 | ||
|
Available to order. Add to View Price |
|||
|
#20
O-RING (2.0X47.5)
52432-MK2-771
|
$3.35 | ||
|
Unavailable |
|||
|
#21
O-RING D (3.5X29.7)
52434-KF0-003
|
$2.86 | ||
|
Unavailable |
|||
|
#22
RING, STOPPER
52435-KF0-003
|
$3.96 | ||
|
Available to order. Add to View Price |
|||
|
#23
OIL SEAL SET
52436-MK2-771
|
$14.70 | ||
|
Unavailable |
|||
|
#24
PLATE SET, ADJUSTING
52438-KN5-003
|
$26.52 | ||
|
Unavailable |
|||
|
#25
HOSE, JOINT
52440-MK2-003
|
$78.94 | ||
|
Unavailable |
|||
|
#26
BOLT, OIL (10X22)
52441-KA3-711
|
$8.32 | ||
|
Unavailable |
|||
|
#27
O-RING (9.8X1.9)
52441-MA0-003
|
$2.04 | ||
|
Unavailable |
|||
|
#28
WASHER, SPECIAL (10MM)
52442-KA3-711
|
$2.75 | ||
|
Available to order. Add to View Price |
|||
|
#29
SPRING, CLICK
52445-KN5-003
|
$3.81 | ||
|
Unavailable |
|||
|
#30
BALL (NOT AVAILABLE)
52446-KF0-003
|
$2.19 | ||
|
Unavailable |
|||
|
#31
O-RING (2X23.5)
52447-KF0-003
|
$3.86 | ||
|
Unavailable |
|||
|
#32
SCREW
52448-KF0-003
|
$3.31 | ||
|
Available to order. Add to View Price |
|||
|
#33
PLATE, ADJUSTING (NOT AVAILABLE)
52449-KF0-771
|
$11.54 | ||
|
Unavailable |
|||
|
#34
SPRING, CLICK
52455-KF0-003
|
$5.67 | ||
|
Available to order. Add to View Price |
|||
|
#35
BALL
52456-KF0-003
|
$3.75 | ||
|
Available to order. Add to View Price |
|||
|
#36
SEAL, RING
52457-KN5-003
|
$8.20 | ||
|
Available to order. Add to View Price |
|||
|
#37
SEAT B, SPRING
52458-KN5-003
|
$13.06 | ||
|
Unavailable |
|||
|
#38
SEAT C, SPRING (SHOWA)
52459-KN5-003
|
$18.22 | ||
|
Unavailable |
|||
|
#39
ARM ASSY., SHOCK ABSORBER
52460-MK2-010
|
$310.43 | ||
|
Unavailable |
|||
|
#39
ARM ASSY., SHOCK ABSORBER
52460-MM0-620
|
$321.06 | ||
|
Available to order. Add to View Price |
|||
|
#40
COLLAR, CUSHION ARM PIVOT
52463-KN5-000
|
$23.18 | ||
|
Available to order. Add to View Price |
|||
|
#41
ROD ASSY., SHOCK CONNECTING
52470-MK2-770
|
$235.69 | ||
|
Available to order. Add to View Price |
|||
|
#42
COLLAR, CUSHION CONNECTING ROD
52473-KN5-000
|
$14.75 | ||
|
Available to order. Add to View Price |
|||
|
#43
COLLAR, SHOCK ABSORBER
52486-KN5-003
|
$6.59 | ||
|
Unavailable |
|||
|
#44
RING, STOPPER
52487-KA4-831
|
$4.93 | ||
|
Available to order. Add to View Price |
|||
|
#45
RING, STOPPER
52487-KN5-000
|
$3.73 | ||
|
Available to order. Add to View Price |
|||
|
#46
LABEL, RR. DAMPER CAUTION (NOT AVAILABLE)
87516-MA0-003
|
$4.73 | ||
|
Unavailable |
|||
|
#47
BOLT, SOCKET (12X100)
90128-KN5-000
Superseded by 90128-MV1-000
|
$11.16 | ||
|
Unavailable |
|||
|
#48
BOLT, FLANGE (10X77)
90129-KF0-000
|
$18.00 | ||
|
Available to order. Add to View Price |
|||
|
#49
BOLT, FLANGE (10X71)
90129-KAS-900
|
$11.80 | ||
|
Available to order. Add to View Price |
|||
|
#49
BOLT, FLANGE (10X71)
90150-MK2-770
Superseded by 90129-KAS-900
|
$11.80 | ||
|
Unavailable |
|||
|
#50
BOLT, FLANGE (10X69)
90151-KF0-000
Superseded by 90151-KV6-910
|
$13.38 | ||
|
Unavailable |
|||
|
#51
BOLT, FLANGE (10X48)
90153-MK2-770
|
$6.89 | ||
|
Unavailable |
|||
|
#52
NUT, U (10MM)
90304-GE8-003
|
$4.62 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#53
NUT, FLANGE (12MM)
90306-KF0-003
|
$4.84 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#54
WASHER
90401-KF0-003
Superseded by 90501-MT2-000
|
$2.35 | ||
|
Available to order. Add to View Price |
|||
|
#54
WASHER
90501-MT2-000
|
$2.35 | ||
|
Unavailable |
|||
|
#55
BEARING, SPHERICAL (14MM)
91077-KA4-831
Superseded by 91077-KN5-004
|
$25.84 | ||
|
Available to order. Add to View Price |
|||
|
#55
BEARING, SPHERICAL (14MM)
91077-KN5-004
|
$25.84 | ||
|
Unavailable |
|||
|
#56
BEARING, SPHERICAL (14MM)
91077-KN5-004
|
$25.84 | ||
|
Unavailable |
|||
|
#57
BEARING, CUSHION ARM (NTN)
91078-KN5-003
|
$34.45 | ||
|
Available to order. Add to View Price |
|||
|
#58
BEARING, CONNECTING ROD
91079-KN5-003
|
$15.40 | ||
|
Available to order. Add to View Price |
|||
|
#59
SEAL, CUSHION ARM
91261-KN5-003
|
$12.25 | ||
|
Available to order. Add to View Price |
|||
|
#60
SEAL, CUSHION CONNECTING ROD PIVOT
91262-KN5-003
|
$12.25 | ||
|
Available to order. Add to View Price |
|||
|
#61
DUST SEAL B
91351-KN5-003
|
$3.54 | ||
|
Unavailable |
|||
|
#62
DUST SEAL B
91351-KN5-004
|
$5.09 | ||
|
Available to order. Add to View Price |
|||
|
#63
NUT, HEX. (12MM)
94002-12000-0S
|
$2.20 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#64
NIPPLE, GREASE (B.T6S)
96201-80000
|
$2.93 | ||
|
Available to order. Add to View Price |
|||
|
#65
BOLT, FLANGE (6X20)
96300-06020-00
|
$1.47 | ||
|
Available to order. Add to View Price |
|||
|
#66
BOLT, FLANGE (6X25)
96300-06025-00
|
$1.67 | ||
|
Available to order. Add to View Price |
|||
