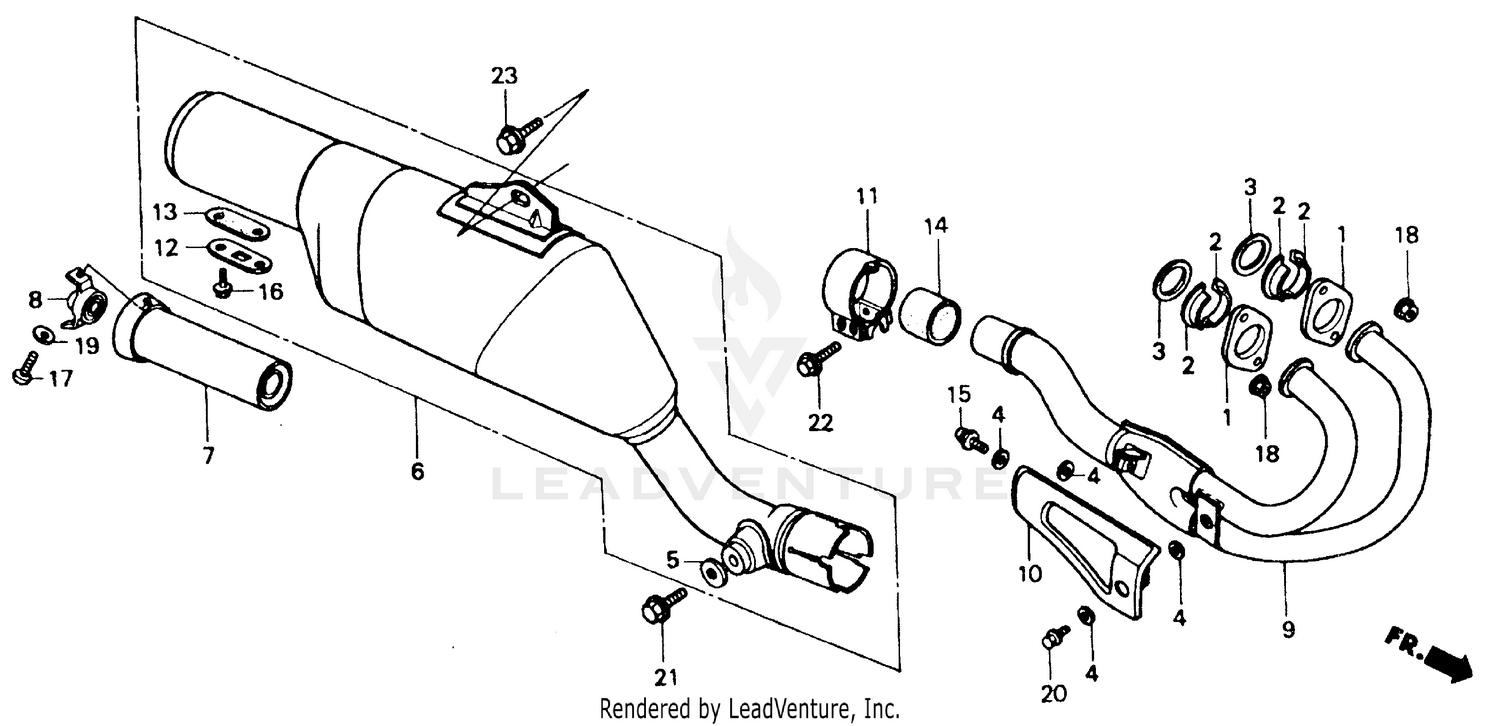

Exhaust Muffler 85-87 Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
JOINT, EX. PIPE
18231-MG3-000
|
$27.16 | ||
|
Unavailable |
|||
|
#2
COLLAR, EX. PIPE JOINT
18233-435-000
|
$10.33 | ||
|
Available to order. Add to View Price |
|||
|
#3
GASKET, EX. PIPE
18291-MN5-650
|
$4.75 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#3
GASKET, EX. PIPE
18291-216-000
Superseded by 18291-MN5-650
|
$4.75 | ||
|
Unavailable |
|||
|
#4
GASKET, PROTECTOR
18292-KF9-900
Superseded by 18292-MM9-740
|
$3.80 | ||
|
Available to order. Add to View Price |
|||
|
#4
GASKET, PROTECTOR
18292-MM9-740
|
$3.80 | ||
|
Unavailable |
|||
|
#4
GASKET, PROTECTOR
18292-415-000
Superseded by 18292-MM9-740
|
$3.80 | ||
|
Unavailable |
|||
|
#5
GASKET B, MUFFLER
18295-KS3-920
Superseded by 18295-KV6-920
|
$9.20 | ||
|
Unavailable |
|||
|
#5
GASKET B, MUFFLER
18295-KZ1-670
Superseded by 18295-KV6-920
|
$9.20 | ||
|
Unavailable |
|||
|
#5
GASKET B, MUFFLER
18295-429-000
Superseded by 18295-KV6-920
|
$9.20 | ||
|
Unavailable |
|||
|
#6
MUFFLER (NOT AVAILABLE)
18310-MK2-770
Superseded by 18310-MK2-680
|
$436.65 | ||
|
Unavailable |
|||
|
#7
PIPE, TAIL
18311-MA0-010
|
$81.31 | ||
|
Available to order. Add to View Price |
|||
|
#9
PIPE, EX.
18320-MK2-670
Superseded by 18320-MK2-671
|
$186.90 | ||
|
Unavailable |
|||
|
#10
PROTECTOR, EX. PIPE
18325-MK2-670
|
$42.75 | ||
|
Unavailable |
|||
|
#11
BAND, MUFFLER
18371-MA0-770
Superseded by 18376-KV0-000
|
$26.26 | ||
|
Unavailable |
|||
|
#11
BAND, MUFFLER
18376-KV0-000
|
$26.26 | ||
|
Unavailable |
|||
|
#12
LID, MUFFLER
18373-429-010
|
$11.09 | ||
|
Available to order. Add to View Price |
|||
|
#13
GASKET, MUFFLER LID
18374-MN1-880
|
$5.27 | ||
|
Available to order. Add to View Price |
|||
|
#13
GASKET, MUFFLER LID
18374-429-000
Superseded by 18374-MN1-880
|
$5.27 | ||
|
Unavailable |
|||
|
#14
GASKET, MUFFLER
18391-429-000
Superseded by 18391-429-010
|
$18.44 | ||
|
Available to order. Add to View Price |
|||
|
#14
GASKET, MUFFLER
18391-429-010
|
$18.44 | ||
|
Unavailable |
|||
|
#15
SCREW-WASHER (6X12)
90136-MC7-000
|
$5.85 | ||
|
Available to order. Add to View Price |
|||
|
#16
BOLT-WASHER (6X12)
93401-06012-07
|
$1.70 | ||
|
Available to order. Add to View Price |
|||
|
#16
BOLT-WASHER (6X12)
93411-06012-07
Superseded by 93401-06012-07
|
$1.70 | ||
|
Unavailable |
|||
|
#16
BOLT-WASHER (6X12)
93481-06012-07
Superseded by 93401-06012-07
|
$1.70 | ||
|
Unavailable |
|||
|
#17
SCREW-WASHER (6X12)
93891-06012-07
|
$1.02 | ||
|
Available to order. Add to View Price |
|||
|
#18
NUT, FLANGE (8MM)
94050-08000
|
$0.98 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#20
BOLT, FLANGE (6X12)
95700-06012-02
Superseded by 95701-06012-02
|
$2.20 | ||
|
Available to order. Add to View Price |
|||
|
#20
BOLT, FLANGE (6X12)
95701-06012-02
|
$2.20 | ||
|
Unavailable |
|||
|
#21
BOLT, FLANGE (8X16)
96300-08016-00
|
$1.60 | ||
|
Available to order. Add to View Price |
|||
|
#22
BOLT, FLANGE (8X40)
96300-08040-00
|
$2.44 | ||
|
Available to order. Add to View Price |
|||
|
#23
BOLT, FLANGE (10X16)
96300-10016-00
|
$1.59 | ||
|
Unavailable |
|||
