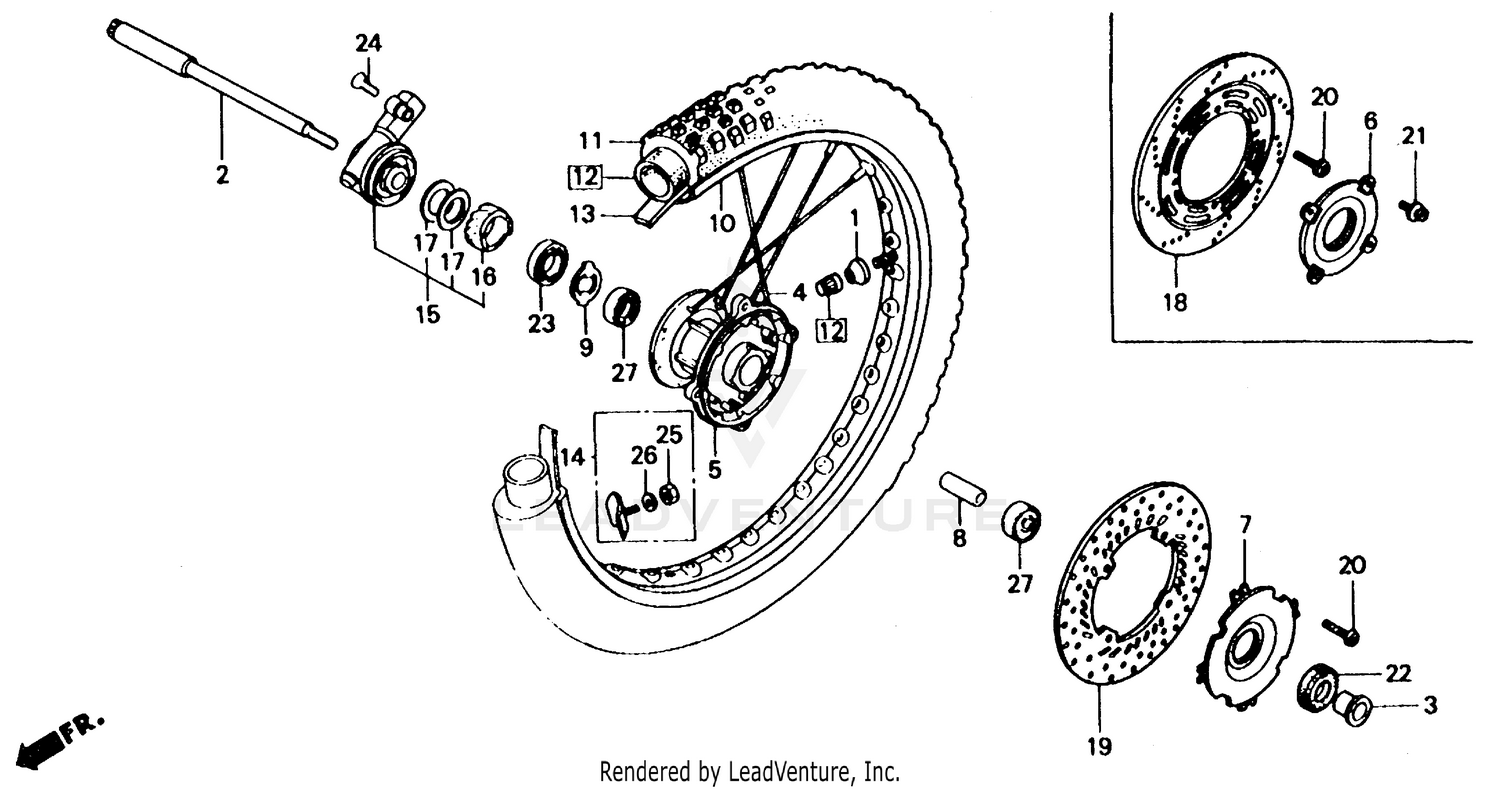

Front Wheel Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CAP, VALVE
42714-KA3-710
|
$12.67 | ||
|
Available to order. Add to View Price |
|||
|
#2
AXLE, FR. WHEEL
44301-KBR-000
|
$71.76 | ||
|
Available to order. Add to View Price |
|||
|
#2
AXLE, FR. WHEEL
44301-KF0-000
Superseded by 44301-KBR-000
|
$71.76 | ||
|
Unavailable |
|||
|
#3
COLLAR, FR. WHEEL
44311-MG3-000
|
$21.84 | ||
|
Available to order. Add to View Price |
|||
|
#4
SPOKE SET A (9X228.5)
446A0-MG3-000
|
$4.88 | ||
|
Available to order. Add to View Price |
|||
|
#5
HUB, FR. WHEEL
44601-MG2-830
|
$214.26 | ||
|
Unavailable |
|||
|
#6
COVER, FR. HUB
44610-KL3-770
|
$14.71 | ||
|
Available to order. Add to View Price |
|||
|
#8
COLLAR, FR. WHEEL DISTANCE
44620-MG3-000
|
$16.29 | ||
|
Available to order. Add to View Price |
|||
|
#9
RETAINER, GEAR BOX
44680-MA0-000
|
$9.31 | ||
|
Available to order. Add to View Price |
|||
|
#10
RIM, FR. WHEEL
44701-MK2-P00
|
$248.53 | ||
|
Unavailable |
|||
|
#10
RIM, FR. WHEEL
44701-MK2-771
Superseded by 44701-MK2-P00
|
$248.53 | ||
|
Unavailable |
|||
|
#11
TIRE, FR. (80/100-21) (ED11) (BS)
44711-KT0-672
|
$75.67 | ||
|
Unavailable |
|||
|
#11
TIRE, FR. (80/100-21) (51M VE35F) (INOUE)
44711-MK2-771
|
$85.19 | ||
|
Available to order. Add to View Price |
|||
|
#11
TIRE, FR. (80/100-21) (ED11) (BS)
44711-MK2-772
Superseded by 44711-KT0-672
|
$75.67 | ||
|
Unavailable |
|||
|
#12
TUBE, TIRE (2.75/3.00-21) (INOUE)
44712-446-631
|
$12.96 | ||
|
Available to order. Add to View Price |
|||
|
#12
TUBE, TIRE (2.75/3.00-21) (INOUE)
0Y400-33100
Superseded by 44712-446-631
|
$12.96 | ||
|
Unavailable |
|||
|
#12
TUBE, TIRE (2.75/3.00-21) (INOUE)
08400-33100
Superseded by 44712-446-631
|
$12.96 | ||
|
Unavailable |
|||
|
#12
TUBE, TIRE (2.75/3.00-21) (INOUE)
08400-34010
Superseded by 44712-446-631
|
$12.96 | ||
|
Unavailable |
|||
|
#12
TUBE, TIRE (2.75/3.00-21) (INOUE)
44712-MC4-005
Superseded by 44712-446-631
|
$12.96 | ||
|
Unavailable |
|||
|
#12
TUBE, TIRE (2.75/3.00-21) (INOUE)
44712-340-003
Superseded by 44712-446-631
|
$12.96 | ||
|
Unavailable |
|||
|
#12
TUBE, TIRE (2.75/3.00-21) (INOUE)
44712-437-971
Superseded by 44712-446-631
|
$12.96 | ||
|
Unavailable |
|||
|
#12
TUBE, TIRE (2.75/3.00-21) (INOUE)
44712-446-003
Superseded by 44712-446-631
|
$12.96 | ||
|
Unavailable |
|||
|
#13
FLAP, TIRE (1.4X21) (INOUE) (NOT AVAILABLE)
44713-446-631
|
$3.79 | ||
|
Unavailable |
|||
|
#13
FLAP, TIRE (1.60-21) (BS) (NA USE ALT:44713-MG7-003)
44713-329-003
|
$3.21 | ||
|
Available to order. Add to View Price |
|||
|
#14
STOPPER, BEAD (1.60)
44715-MA0-770
|
$44.58 | ||
|
Available to order. Add to View Price |
|||
|
#15
BOX ASSY., SPEEDOMETER GEAR
44800-KF0-013
Superseded by 44800-KF0-023
|
$135.04 | ||
|
Available to order. Add to View Price |
|||
|
#15
BOX ASSY., SPEEDOMETER GEAR
44800-KF0-023
|
$135.04 | ||
|
Unavailable |
|||
|
#16
GEAR, SPEEDOMETER
44806-KF0-000
|
$42.89 | ||
|
Available to order. Add to View Price |
|||
|
#17
WASHER, SPEEDOMETER GEAR
44809-402-000
|
$2.67 | ||
|
Available to order. Add to View Price |
|||
|
#18
DISK, FR. BRAKE
45351-KBB-900
|
$286.55 | ||
|
Available to order. Add to View Price |
|||
|
#18
DISK, FR. BRAKE
45351-KE1-760
Superseded by 45351-KBB-900
|
$286.55 | ||
|
Unavailable |
|||
|
#20
BOLT, DISK (6X17)
90105-KN5-000
|
$4.89 | ||
|
Available to order. Add to View Price |
|||
|
#21
SCREW-WASHER (4X8)
90204-KA3-730
Superseded by 90204-KPS-900
|
$0.87 | ||
|
Available to order. Add to View Price |
|||
|
#22
OIL SEAL (21X37X7) (ARAI)
90755-229-003
|
$6.35 | ||
|
Available to order. Add to View Price |
|||
|
#22
OIL SEAL (21X37X7) (ARAI)
90755-229-005
Superseded by 90755-229-003
|
$6.35 | ||
|
Unavailable |
|||
|
#23
DUST SEAL (40X50X5) (ARAI)
91258-410-003
Superseded by 91258-410-013
|
$11.87 | ||
|
Available to order. Add to View Price |
|||
|
#23
DUST SEAL (40X50X5) (ARAI)
91258-410-006
Superseded by 91258-410-013
|
$11.87 | ||
|
Unavailable |
|||
|
#23
DUST SEAL (40X50X5) (ARAI)
91258-410-013
|
$11.87 | ||
|
Unavailable |
|||
|
#24
SCREW, OVAL (5X20)
93700-05020-0A
|
$0.53 | ||
|
Unavailable |
|||
|
#25
NUT, HEX. (8MM)
94001-08000-0S
|
$1.37 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#26
WASHER, SPRING (8MM)
94111-08000
|
$1.03 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#27
BEARING, RADIAL BALL (6202U)
96140-62020-10
|
$13.15 | ||
|
Available to order. Add to View Price |
|||
