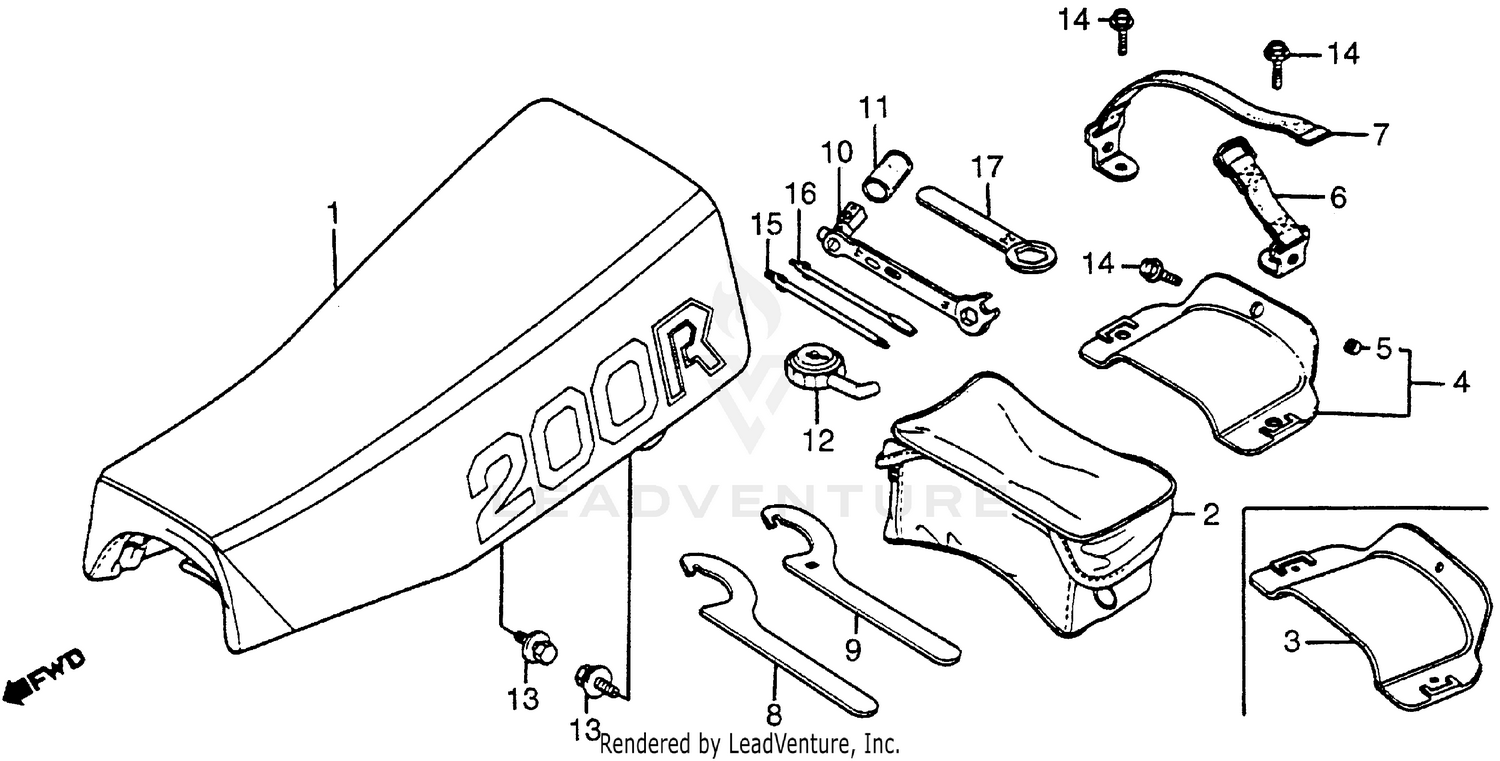

Seat Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
SEAT
77200-KA2-000
Superseded by 77200-KA2-405
|
$228.94 | ||
|
Unavailable |
|||
|
#2
BAG, TOOL
83501-KA2-000
Superseded by 83501-KB2-000
|
$98.87 | ||
|
Unavailable |
|||
|
#4
PLATE, TOOL BAG (LOWER)
83502-KA2-680
|
$18.96 | ||
|
Unavailable |
|||
|
#5
COLLAR, TOOL BAG PLATE
83503-KA2-680
|
$2.68 | ||
|
Available to order. Add to View Price |
|||
|
#6
BAND A, CARRIER (NOT AVAILABLE)
83505-MA0-000
|
$14.54 | ||
|
Unavailable |
|||
|
#7
BAND B, CARRIER (NOT AVAILABLE)
83506-MA0-000
|
$15.26 | ||
|
Unavailable |
|||
|
#8
SPANNER A, PIN
89201-KA4-810
Superseded by 89201-KA4-811
|
$50.27 | ||
|
Available to order. Add to View Price |
|||
|
#8
SPANNER A, PIN
89201-KA4-811
|
$50.27 | ||
|
Unavailable |
|||
|
#9
SPANNER B, PIN
89202-KA4-810
Superseded by 89202-KA4-811
|
$49.02 | ||
|
Available to order. Add to View Price |
|||
|
#9
SPANNER B, PIN
89202-KA4-811
|
$49.02 | ||
|
Unavailable |
|||
|
#10
WRENCH, EYE (24MM) (NOT AVAILABLE)
89225-MA0-770
|
$16.35 | ||
|
Unavailable |
|||
|
#11
PROTECTOR, EYE WRENCH (NOT AVAILABLE)
89226-446-770
|
$0.68 | ||
|
Unavailable |
|||
|
#12
GAUGE, AIR PRESSURE
89301-KA4-811
|
$87.09 | ||
|
Available to order. Add to View Price |
|||
|
#13
BOLT-WASHER (8X16)
93404-08016-08
|
$1.95 | ||
|
Available to order. Add to View Price |
|||
|
#13
BOLT-WASHER (8X16)
93494-08016-08
Superseded by 93404-08016-08
|
$1.95 | ||
|
Unavailable |
|||
|
#14
BOLT, FLANGE (6X14)
95700-06014-08
Superseded by 95701-06014-08
|
$1.70 | ||
|
Unavailable |
|||
|
#14
BOLT, FLANGE (6X14)
95701-06014-08
|
$1.70 | ||
|
Unavailable |
|||
