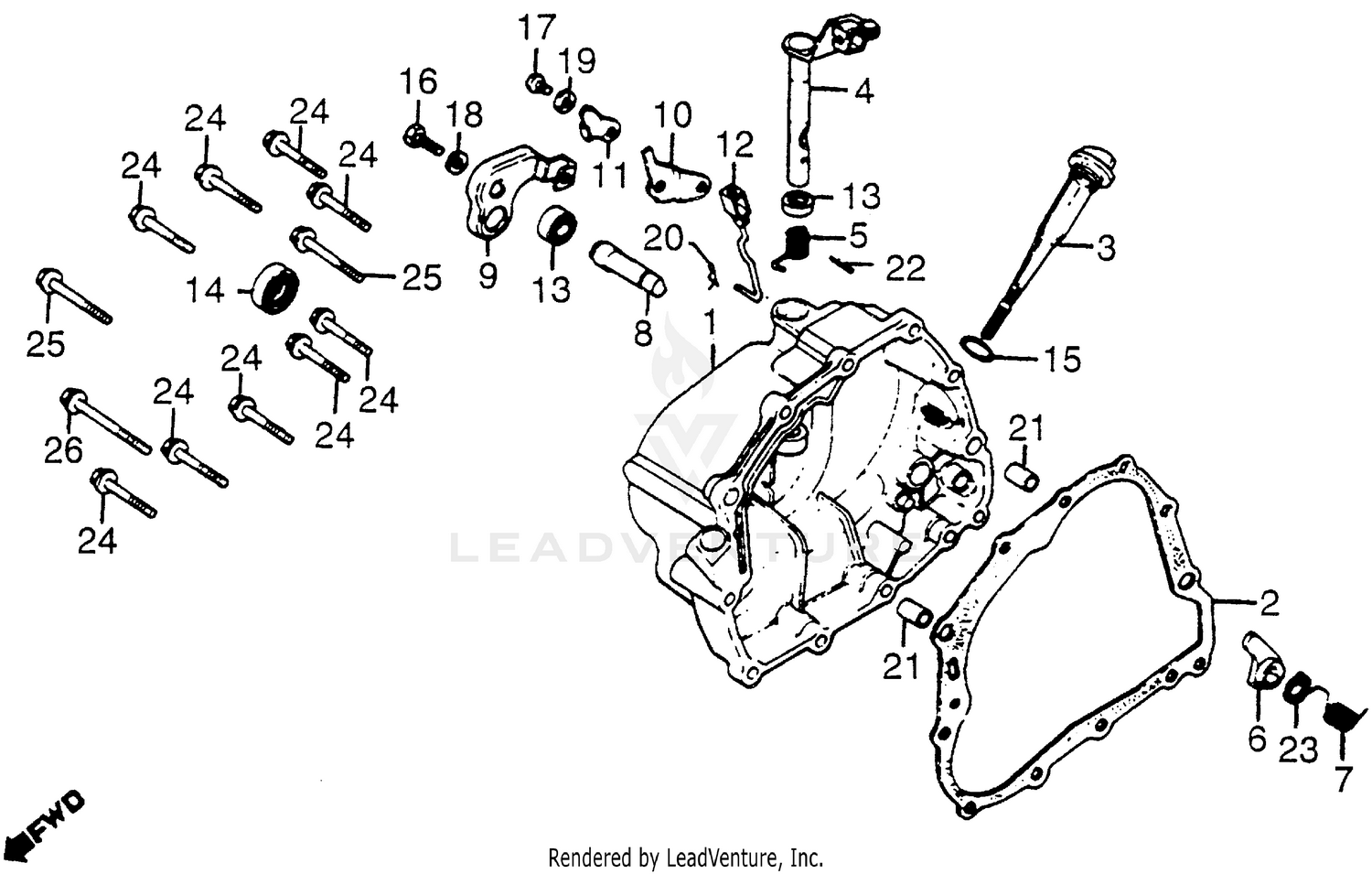

Right Crankcase Cover Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
COVER, R. CRANKCASE
11330-KA2-000
|
$185.70 | ||
|
Unavailable |
|||
|
#2
GASKET, R. COVER
11393-KT0-710
Superseded by 11393-KVC-902
|
$18.85 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#2
GASKET, R. COVER
11393-437-000
Superseded by 11393-KVC-902
|
$18.85 | ||
|
Unavailable |
|||
|
#2
GASKET, R. COVER
11393-437-010
Superseded by 11393-KVC-902
|
$18.85 | ||
|
Unavailable |
|||
|
#2
GASKET, R. COVER
11393-437-306
Superseded by 11393-KVC-902
|
$18.85 | ||
|
Unavailable |
|||
|
#3
DIPSTICK, OIL
15650-KB9-000
|
$16.47 | ||
|
Available to order. Add to View Price |
|||
|
#3
DIPSTICK, OIL
15650-437-000
Superseded by 15650-KB9-000
|
$16.47 | ||
|
Unavailable |
|||
|
#4
LEVER, CLUTCH
22810-437-000
|
$42.83 | ||
|
Available to order. Add to View Price |
|||
|
#5
SPRING, CLUTCH LEVER
22815-428-000
|
$4.13 | ||
|
Available to order. Add to View Price |
|||
|
#6
FOLLOWER, CAM
28271-427-000
|
$22.34 | ||
|
Unavailable |
|||
|
#7
SPRING, FOLLOWER
28274-427-000
|
$2.65 | ||
|
Unavailable |
|||
|
#8
SHAFT, FOLLOWER
28281-427-000
|
$25.55 | ||
|
Unavailable |
|||
|
#9
ARM, CAM FOLLOWER (NOT AVAILABLE)
28282-427-000
|
$10.25 | ||
|
Unavailable |
|||
|
#10
RECEIVER, DECOMPRESSION CABLE (LOWER)
28287-427-000
|
$7.79 | ||
|
Unavailable |
|||
|
#11
CLAMP, DECOMPRESSION RECEIVER
28288-427-000
|
$2.72 | ||
|
Unavailable |
|||
|
#12
ROD, DECOMPRESSION
28289-427-000
|
$19.88 | ||
|
Unavailable |
|||
|
#13
OIL SEAL (12X22X5)
91201-148-003
Superseded by 91201-965-000
|
$5.09 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#13
OIL SEAL (12X22X5)
91201-148-005
Superseded by 91201-965-000
|
$5.09 | ||
|
Unavailable |
|||
|
#13
OIL SEAL (12X22X5)
91201-965-000
|
$5.09 | ||
|
Unavailable |
|||
|
#14
OIL SEAL (16X28X7)
91204-MC7-003
Superseded by 91204-259-003
|
$7.04 | ||
|
Available to order. Add to View Price |
|||
|
#14
OIL SEAL (16X28X7)
91204-259-003
|
$7.04 | ||
|
Unavailable |
|||
|
#14
OIL SEAL (16X28X7)
91204-259-005
Superseded by 91204-259-003
|
$7.04 | ||
|
Unavailable |
|||
|
#14
OIL SEAL (16X28X7)
91205-360-000
Superseded by 91204-259-003
|
$7.04 | ||
|
Unavailable |
|||
|
#15
O-RING (18X3) (ARAI)
91307-KF0-003
|
$3.35 | ||
|
Available to order. Add to View Price |
|||
|
#15
O-RING (18X3)
91307-035-000
|
$3.40 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#16
BOLT, HEX. (6X12)
92000-06012
Superseded by 92101-06012-0A
|
$1.48 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#16
BOLT, HEX. (6X12)
92101-06012
Superseded by 92101-06012-0A
|
$1.48 | ||
|
Unavailable |
|||
|
#16
BOLT, HEX. (6X12)
92101-06012-0A
|
$1.48 | ||
|
Unavailable |
|||
|
#17
SCREW, PAN (5X12)
93500-05012-0A
|
$0.95 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#18
WASHER, PLAIN (6MM)
94101-06000
Superseded by 94101-06800
|
$0.68 | ||
|
Available to order. Add to View Price |
|||
|
#18
WASHER, PLAIN (6MM)
94101-06080
Superseded by 94101-06800
|
$0.68 | ||
|
Unavailable |
|||
|
#18
WASHER, PLAIN (6MM)
94101-06800
|
$0.68 | ||
|
Unavailable |
|||
|
#19
WASHER, SPRING (5MM)
94111-05000
|
$1.18 | ||
|
Available to order. Add to View Price |
|||
|
#20
PIN, LOCK (4MM)
94251-04000
|
$0.76 | ||
|
Available to order. Add to View Price |
|||
|
#21
PIN A, DOWEL (8X14)
94301-08140
|
$2.35 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#22
PIN, SPRING (3X10)
94305-30102
|
$1.82 | ||
|
Available to order. Add to View Price |
|||
|
#23
CIRCLIP (OUTER) (10MM)
94510-10000
|
$1.15 | ||
|
Unavailable |
|||
|
#24
BOLT, FLANGE (6X25)
96000-06025-00
|
$2.20 | ||
|
Unavailable |
|||
|
#24
BOLT, FLANGE (6X25)
96001-06025-00
|
$2.20 | ||
|
Available to order. Add to View Price |
|||
|
#25
BOLT, FLANGE (6X35)
96000-06035-00
Superseded by 96001-06035-00
|
$1.60 | ||
|
Available to order. Add to View Price |
|||
|
#25
BOLT, FLANGE (6X35)
96001-06035-00
|
$1.60 | ||
|
Unavailable |
|||
|
#26
BOLT, FLANGE (6X50)
96000-06050-00
Superseded by 96001-06050-00
|
$2.27 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#26
BOLT, FLANGE (6X50)
96001-06050-00
|
$2.27 | ||
|
Unavailable |
|||
