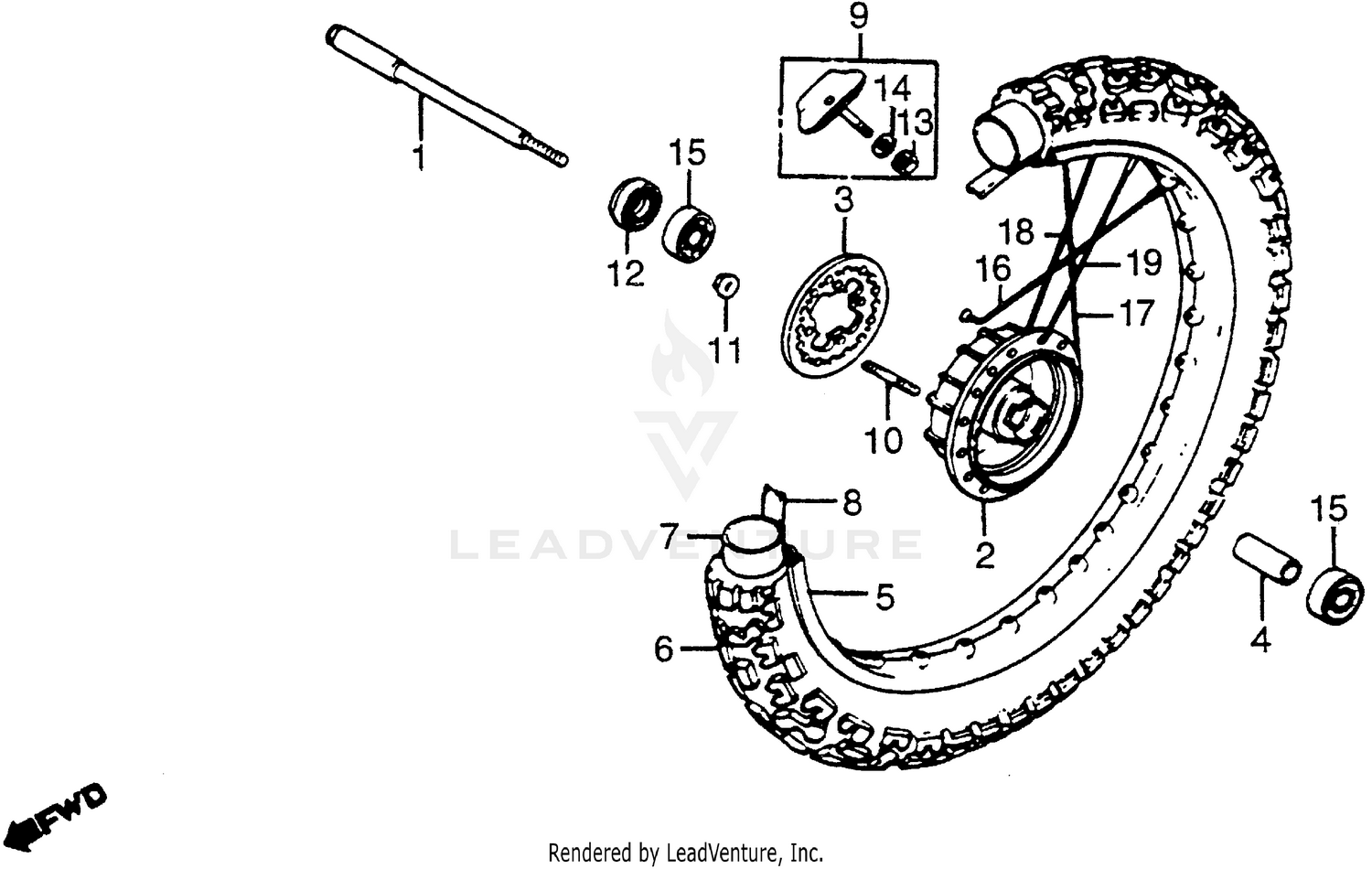

Front Wheel Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
AXLE, FR. WHEEL (NOT AVAILABLE)
44301-KA2-000
Superseded by 44301-KB7-910
|
$30.03 | ||
|
Unavailable |
|||
|
#1
AXLE, FR. WHEEL (NOT AVAILABLE)
44301-KB7-910
|
$30.03 | ||
|
Unavailable |
|||
|
#2
HUB, FR. WHEEL (NOT AVAILABLE)
44601-KA2-000
|
$140.35 | ||
|
Unavailable |
|||
|
#3
FLANGE, FR. SPOKE (NOT AVAILABLE)
44604-KA2-000
|
$26.45 | ||
|
Unavailable |
|||
|
#4
COLLAR, FR. AXLE DISTANCE
44620-230-000
|
$11.31 | ||
|
Available to order. Add to View Price |
|||
|
#5
RIM, FR. WHEEL (NOT AVAILABLE)
44701-MA0-771
Superseded by 44701-430-003
|
$332.88 | ||
|
Unavailable |
|||
|
#6
TIRE, FR. (3.00-21) (6PR) (BS) (NOT AVAILABLE)
44711-MA0-003
|
$46.73 | ||
|
Available to order. Add to View Price |
|||
|
#6
TIRE, FR. (3.00-21) (6PR) (INOUE) (NOT AVAILABLE)
44711-MA0-005
|
$87.77 | ||
|
Available to order. Add to View Price |
|||
|
#7
TUBE, TIRE (2.75/3.00-21) (INOUE)
0Y400-33100
Superseded by 44712-446-631
|
$12.96 | ||
|
Available to order. Add to View Price |
|||
|
#7
TUBE, TIRE (2.75/3.00-21) (INOUE)
08400-33100
Superseded by 44712-446-631
|
$12.96 | ||
|
Unavailable |
|||
|
#7
TUBE, TIRE (2.75/3.00-21) (INOUE)
08400-34010
Superseded by 44712-446-631
|
$12.96 | ||
|
Unavailable |
|||
|
#7
TUBE, TIRE (2.75/3.00-21) (INOUE)
44712-MC4-005
Superseded by 44712-446-631
|
$12.96 | ||
|
Unavailable |
|||
|
#7
TUBE, TIRE (2.75/3.00-21) (INOUE)
44712-340-003
Superseded by 44712-446-631
|
$12.96 | ||
|
Unavailable |
|||
|
#7
TUBE, TIRE (2.75/3.00-21) (INOUE)
44712-437-971
Superseded by 44712-446-631
|
$12.96 | ||
|
Unavailable |
|||
|
#7
TUBE, TIRE (2.75/3.00-21) (INOUE)
44712-446-003
Superseded by 44712-446-631
|
$12.96 | ||
|
Unavailable |
|||
|
#7
TUBE, TIRE (2.75/3.00-21) (INOUE)
44712-446-631
|
$12.96 | ||
|
Unavailable |
|||
|
#8
FLAP, TIRE (1.4X21) (BS) (NA USE ALT:44713-MG7-003)
44713-329-003
|
$3.21 | ||
|
Available to order. Add to View Price |
|||
|
#8
FLAP, TIRE (1.4X21) (INOUE) (NOT AVAILABLE)
44713-446-631
|
$3.79 | ||
|
Unavailable |
|||
|
#9
STOPPER, BEAD (1.60)
44715-MA0-770
|
$44.58 | ||
|
Available to order. Add to View Price |
|||
|
#10
BOLT, STUD (6X28)
90135-107-720
|
$2.93 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#11
NUT, DRIVEN SPROCKET (TOKAI)
90352-122-003
|
$5.51 | ||
|
Available to order. Add to View Price |
|||
|
#12
DUST SEAL (20X35X7) (ARAI)
91254-430-003
|
$11.45 | ||
|
Available to order. Add to View Price |
|||
|
#12
DUST SEAL (20X35X7) (ARAI)
91254-430-005
Superseded by 91254-430-003
|
$11.45 | ||
|
Unavailable |
|||
|
#13
NUT, HEX. (8MM)
94001-08000-0S
|
$1.37 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#14
WASHER, SPRING (8MM)
94111-08000
|
$1.03 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#15
BEARING, RADIAL BALL (6202U)
96140-62020-10
|
$13.15 | ||
|
Available to order. Add to View Price |
|||
|
#16
SPOKE SET B (9X236.0)
97224-52312-Q0
|
$5.33 | ||
|
Available to order. Add to View Price |
|||
|
#17
SPOKE SET B (9X236.0)
97328-52312-Q0
|
$2.84 | ||
|
Unavailable |
|||
|
#18
SPOKE SET B (9X206.5)
97338-52253-Q0
|
$3.86 | ||
|
Unavailable |
|||
|
#19
SPOKE SET B (9X206.0)
97438-52252-Q0
|
$3.86 | ||
|
Unavailable |
|||
