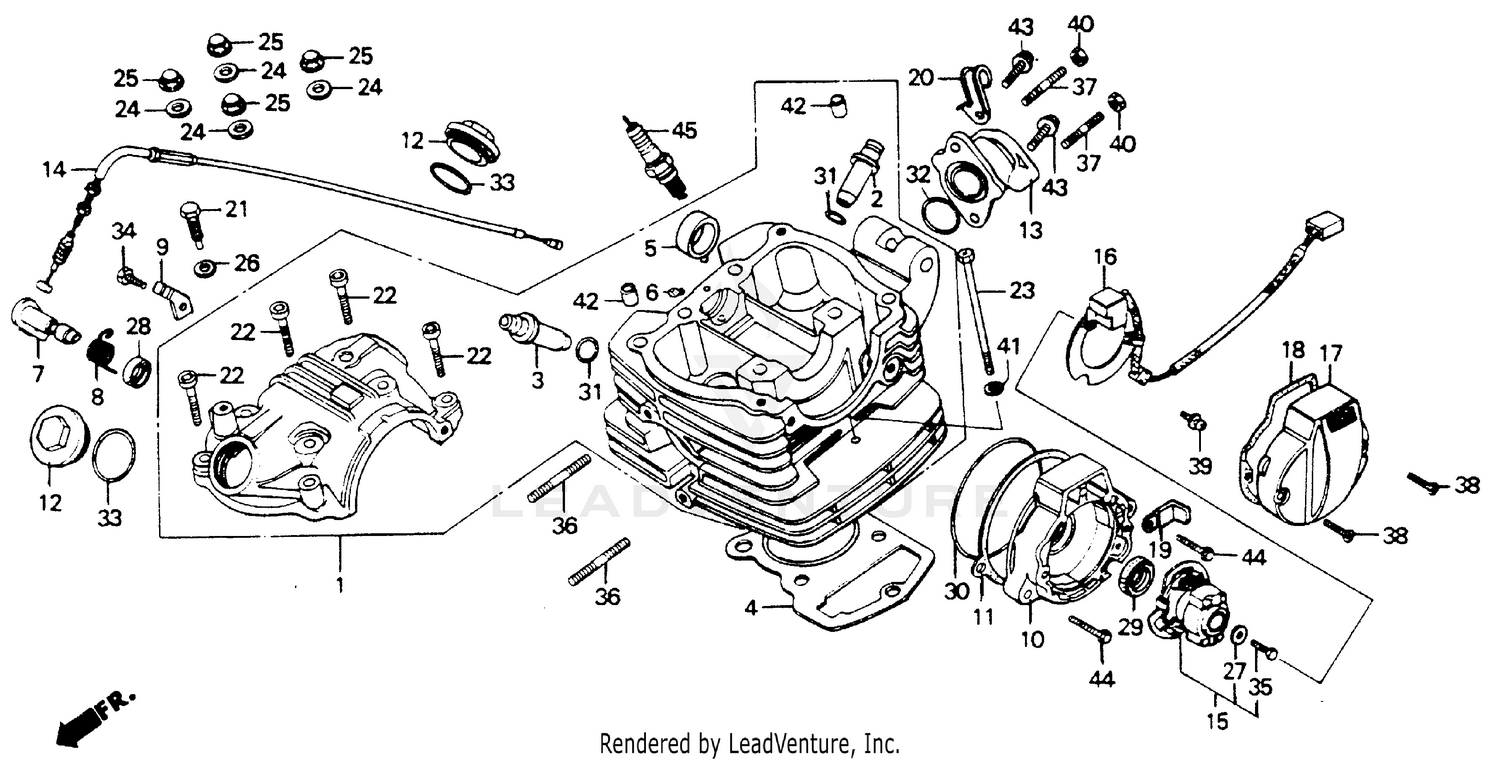

Cylinder Head 86-93 Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CYLINDER HEAD ASSY.
12000-KT0-000
Superseded by 12000-KT0-305
|
$318.87 | ||
|
Unavailable |
|||
|
#2
GUIDE, VALVE
12021-365-300
|
$13.93 | ||
|
Unavailable |
|||
|
#3
GUIDE, EX. VALVE (OS)
12023-437-300
Superseded by 12206-KCS-305
|
$32.53 | ||
|
Available to order. Add to View Price |
|||
|
#3
GUIDE, EX. VALVE (OVER SIZE)
12206-KCS-305
|
$32.53 | ||
|
Unavailable |
|||
|
#4
GASKET, CYLINDER HEAD SET
12251-KT0-P00
|
$31.00 | ||
|
Available to order. Add to View Price |
|||
|
#4
GASKET, CYLINDER HEAD SET
12251-446-306
Superseded by 12251-KT0-P00
|
$31.00 | ||
|
Unavailable |
|||
|
#4
GASKET, CYLINDER HEAD SET
12251-446-776
Superseded by 12251-KT0-P00
|
$31.00 | ||
|
Unavailable |
|||
|
#5
BUSH, CAMSHAFT
12260-437-000
|
$47.80 | ||
|
Available to order. Add to View Price |
|||
|
#6
RUBBER, OIL SEAL
12271-383-000
|
$3.60 | ||
|
Available to order. Add to View Price |
|||
|
#7
LIFTER, VALVE
12320-427-010
|
$41.29 | ||
|
Unavailable |
|||
|
#8
SPRING, VALVE LIFT
12325-427-000
|
$2.59 | ||
|
Unavailable |
|||
|
#9
RECEIVER, DECOMPRESSION CABLE (UPPER)
12327-KT0-000
Superseded by 12327-KT0-010
|
$4.94 | ||
|
Unavailable |
|||
|
#9
RECEIVER, DECOMPRESSION CABLE (UPPER)
12327-KT0-010
|
$4.94 | ||
|
Unavailable |
|||
|
#10
BASE, PULSE GENERATOR
12332-KT0-000
|
$43.02 | ||
|
Unavailable |
|||
|
#11
GASKET
12339-437-003
Superseded by 12339-KT0-712
|
$8.84 | ||
|
Unavailable |
|||
|
#11
GASKET
12339-437-306
Superseded by 12339-KT0-712
|
$8.84 | ||
|
Unavailable |
|||
|
#11
GASKET
12339-KT0-710
Superseded by 12339-KT0-712
|
$8.84 | ||
|
Unavailable |
|||
|
#11
GASKET
12339-KT0-711
Superseded by 12339-KT0-712
|
$8.84 | ||
|
Unavailable |
|||
|
#12
CAP, TAPPET ADJUSTING HOLE
12361-383-000
|
$8.07 | ||
|
Available to order. Add to View Price |
|||
|
#13
INSULATOR, CARBURETOR
16210-KT0-000
|
$41.05 | ||
|
Unavailable |
|||
|
#14
CABLE, DECOMPRESSION
28291-KT0-000
|
$61.12 | ||
|
Available to order. Add to View Price |
|||
|
#15
ADVANCER ASSY., SPARK
30220-427-164
|
$144.44 | ||
|
Available to order. Add to View Price |
|||
|
#16
GENERATOR ASSY., PULSE
30300-KT0-010
|
$65.48 | ||
|
Unavailable |
|||
|
#17
COVER, PULSE GENERATOR
30370-KT0-010
|
$23.78 | ||
|
Unavailable |
|||
|
#18
GASKET, PULSE GENERATOR COVER
30372-KA2-000
Superseded by 30372-KT0-710
|
$6.75 | ||
|
Available to order. Add to View Price |
|||
|
#18
GASKET, PULSE GENERATOR COVER
30372-KT0-710
|
$6.75 | ||
|
Unavailable |
|||
|
#19
CLAMP, WIRE
32111-323-000
|
$5.00 | ||
|
Available to order. Add to View Price |
|||
|
#20
CLIP, IGNITION CABLE
32921-KT0-000
|
$3.43 | ||
|
Unavailable |
|||
|
#21
BOLT, DECOMPRESSION PIVOT
90008-706-000
|
$0.71 | ||
|
Unavailable |
|||
|
#22
BOLT, SOCKET (6MM)
90081-383-000
|
$7.11 | ||
|
Available to order. Add to View Price |
|||
|
#23
BOLT (6X116) (NOT AVAILABLE)
90081-427-000
|
$6.55 | ||
|
Unavailable |
|||
|
#24
WASHER, SEALING (8MM)
90442-028-000
|
$2.02 | ||
|
Available to order. Add to View Price |
|||
|
#25
NUT, CAP (8MM)
90443-107-000
|
$3.29 | ||
|
Available to order. Add to View Price |
|||
|
#26
WASHER A (6MM)
90478-700-000
|
$0.87 | ||
|
Available to order. Add to View Price |
|||
|
#27
WASHER, SPARK ADVANCER SETTING
90486-028-000
|
$2.55 | ||
|
Available to order. Add to View Price |
|||
|
#28
OIL SEAL (12X20X5) (ARAI)
91201-427-003
Superseded by 91205-KF0-003
|
$4.35 | ||
|
Available to order. Add to View Price |
|||
|
#29
OIL SEAL (15X25X7)
91202-107-003
Superseded by 91203-965-003
|
$8.05 | ||
|
Available to order. Add to View Price |
|||
|
#29
OIL SEAL (15X25X7)
91203-965-003
|
$8.05 | ||
|
Unavailable |
|||
|
#30
O-RING (75X2.5)
91301-107-000
|
$6.13 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#31
O-RING (10X1.6)
91301-200-000
|
$3.78 | ||
|
Available to order. Add to View Price |
|||
|
#32
O-RING (33.5X3.0)
91302-200-000
Superseded by 91304-HB3-003
|
$9.69 | ||
|
Available to order. Add to View Price |
|||
|
#32
O-RING (33.5X3.0)
91304-HB3-003
|
$9.69 | ||
|
Unavailable |
|||
|
#33
O-RING (35X3) (ARAI)
91303-107-000
Superseded by 91303-KK3-830
|
$3.62 | ||
|
Available to order. Add to View Price |
|||
|
#34
BOLT, HEX. (6X12)
92000-06012
Superseded by 92101-06012-0A
|
$1.48 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#34
BOLT, HEX. (6X12)
92000-06012-0A
Superseded by 92101-06012-0A
|
$1.48 | ||
|
Unavailable |
|||
|
#34
BOLT, HEX. (6X12)
92100-06012
Superseded by 92101-06012-0A
|
$1.48 | ||
|
Unavailable |
|||
|
#34
BOLT, HEX. (6X12)
92101-06012
Superseded by 92101-06012-0A
|
$1.48 | ||
|
Unavailable |
|||
|
#34
BOLT, HEX. (6X12)
92101-06012-0A
|
$1.48 | ||
|
Unavailable |
|||
|
#35
BOLT, HEX. (6X14) BOLT, FLANGE (6X14)
92000-06014
Superseded by 92101-06014-0A
|
$1.52 | ||
|
Available to order. Add to View Price |
|||
|
#35
BOLT, HEX. (6X14) BOLT, FLANGE (6X14)
92000-06014-0A
Superseded by 92101-06014-0A
|
$1.52 | ||
|
Unavailable |
|||
|
#35
BOLT, HEX. (6X14) BOLT, FLANGE (6X14)
92100-06014
Superseded by 92101-06014-0A
|
$1.52 | ||
|
Unavailable |
|||
|
#35
BOLT, HEX. (6X14)
92101-06014-0A
|
$1.52 | ||
|
Unavailable |
|||
|
#36
BOLT, STUD (6X35)
92700-06035-3E
Superseded by 92900-06020-3E
|
$1.73 | ||
|
Available to order. Add to View Price |
|||
|
#36
BOLT, STUD (6X35)
92900-06020-3E
|
$1.73 | ||
|
Unavailable |
|||
|
#37
BOLT, STUD (6X28)
92712-06028-0B
|
$1.40 | ||
|
Unavailable |
|||
|
#38
SCREW, OVAL (5X20)
93700-05020-0B
|
$1.38 | ||
|
Available to order. Add to View Price |
|||
|
#39
SCREW-WASHER (5X12)
93891-05012-08
|
$1.20 | ||
|
Available to order. Add to View Price |
|||
|
#40
NUT, HEX. (6MM)
94001-06000-0S
Superseded by 94001-06200-0S
|
$1.37 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#40
NUT, HEX. (6MM)
94001-06200-0S
|
$1.37 | ||
|
Unavailable |
|||
|
#41
WASHER, PLAIN (6MM)
94101-06000
Superseded by 94101-06800
|
$0.68 | ||
|
Available to order. Add to View Price |
|||
|
#41
WASHER, PLAIN (6MM)
94101-06080
Superseded by 94101-06800
|
$0.68 | ||
|
Unavailable |
|||
|
#41
WASHER, PLAIN (6MM)
94101-06800
|
$0.68 | ||
|
Unavailable |
|||
|
#42
PIN, DOWEL (8X14)
94301-08140
|
$2.35 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#43
BOLT, FLANGE (6X20)
96000-060-2000
Superseded by 96001-06020-00
|
$1.42 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#43
BOLT, FLANGE (6X20)
96001-06020-00
|
$1.42 | ||
|
Unavailable |
|||
|
#44
BOLT, FLANGE (6X25)
96000-06025-00
|
$2.20 | ||
|
Unavailable |
|||
|
#44
BOLT, FLANGE (6X25)
96001-06025-00
|
$2.20 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#45
SPARK PLUG (DR8ES-L) (NGK)
98069-38716
Superseded by 98069-38719
|
$2.91 | ||
|
Unavailable |
|||
|
#45
SPARK PLUG (DR7ES) (NGK)
98069-57716
Superseded by 98069-57719
|
$2.70 | ||
|
Unavailable |
|||
|
#45
SPARK PLUG (DR8ES) (NGK)
98069-58716
Superseded by 98069-58719
|
$2.91 | ||
|
Unavailable |
|||
|
#45
SPARK PLUG
98069-38719
|
$2.91 | ||
|
Unavailable |
|||
|
#45
SPARK PLUG (DR7ES) (NGK)
98069-57719
|
$2.70 | ||
|
Unavailable |
|||
|
#45
SPARK PLUG (X22ESR-U) (DENSO)
98069-57726
|
$2.70 | ||
|
Available to order. Add to View Price |
|||
|
#45
SPARK PLUG (DR8ES) (NGK)
98069-58719
|
$2.91 | ||
|
Unavailable |
|||
|
#45
SPARK PLUG (X24ESR-U) (DENSO)
98069-58726
|
$2.80 | ||
|
Available to order. Add to View Price |
|||
|
#45
SPARK PLUG (X27ESR-U) (DENSO)
98069-59726
|
$2.80 | ||
|
Available to order. Add to View Price |
|||
