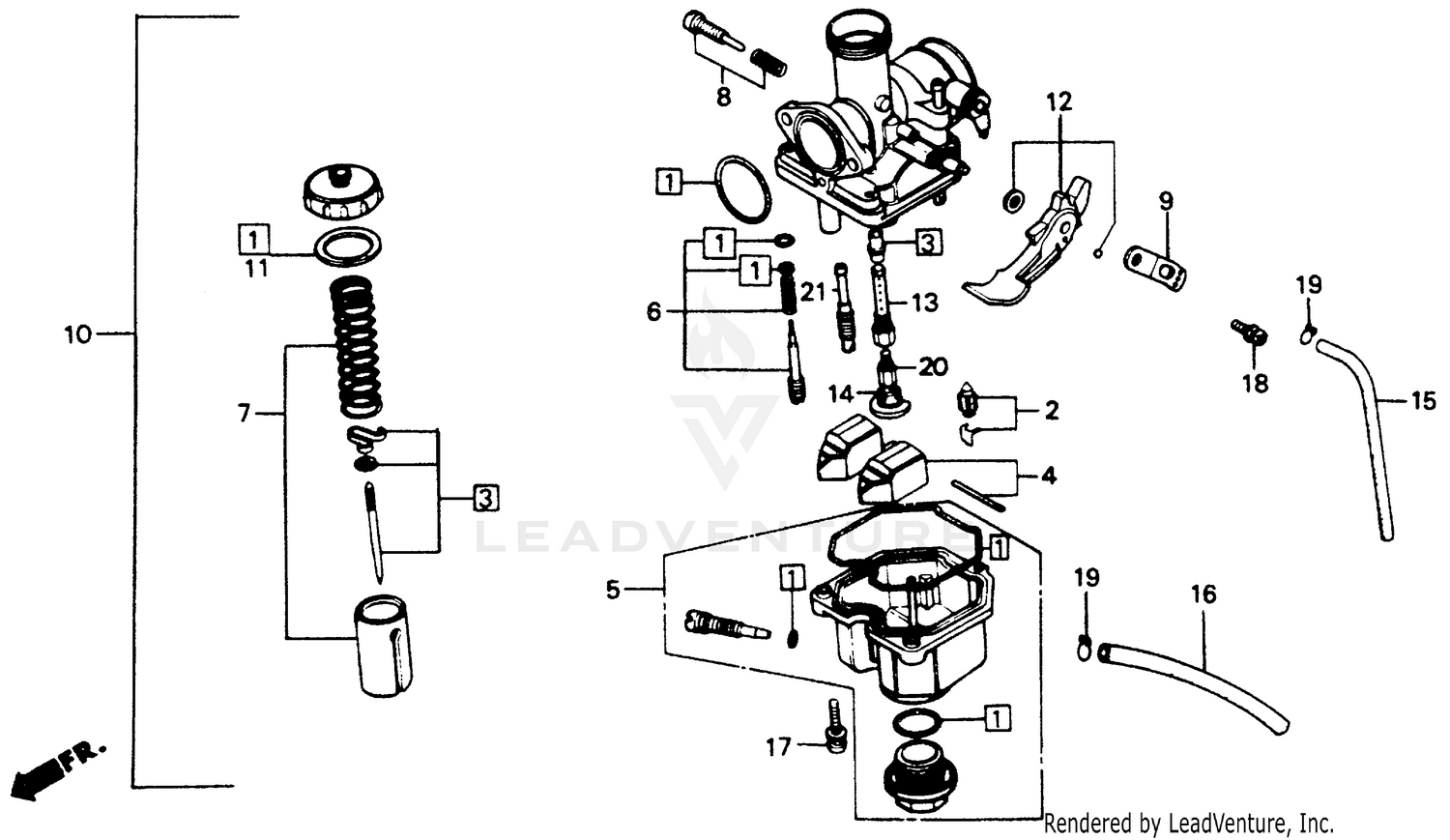

Carburetor 86-93 Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
GASKET SET
16010-KT0-A10
|
$30.75 | ||
|
Available to order. Add to View Price |
|||
|
#1
GASKET SET
16010-446-004
Superseded by 16010-KT0-A10
|
$30.75 | ||
|
Unavailable |
|||
|
#2
VALVE SET, FLOAT
16011-KCK-910
|
$40.98 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#2
VALVE SET, FLOAT
16011-KG0-891
Superseded by 16011-KCK-910
|
$40.98 | ||
|
Unavailable |
|||
|
#2
VALVE SET, FLOAT
16011-382-004
Superseded by 16011-KCK-910
|
$40.98 | ||
|
Unavailable |
|||
|
#3
NEEDLE SET, JET (NOT AVAILABLE)
16012-382-620
|
$22.12 | ||
|
Unavailable |
|||
|
#4
FLOAT SET
16013-KN4-A10
|
$42.02 | ||
|
Available to order. Add to View Price |
|||
|
#4
FLOAT SET
16013-KN5-671
Superseded by 16013-KN4-A10
|
$42.02 | ||
|
Unavailable |
|||
|
#5
CHAMBER SET, FLOAT
16015-KA6-004
Superseded by 16015-KCE-671
|
$123.38 | ||
|
Unavailable |
|||
|
#5
CHAMBER SET, FLOAT
16015-KCE-670
Superseded by 16015-KCE-671
|
$123.38 | ||
|
Unavailable |
|||
|
#5
CHAMBER SET, FLOAT
16015-KCE-671
|
$123.38 | ||
|
Unavailable |
|||
|
#6
SCREW SET A
16016-385-681
Superseded by 16016-402-004
|
$25.22 | ||
|
Available to order. Add to View Price |
|||
|
#6
SCREW SET A
16016-402-004
|
$25.22 | ||
|
Unavailable |
|||
|
#7
VALVE SET, THROTTLE
16022-KA2-014
Superseded by 16022-KT0-A10
|
$76.50 | ||
|
Unavailable |
|||
|
#7
VALVE SET, THROTTLE
16022-KT0-A10
|
$76.50 | ||
|
Unavailable |
|||
|
#8
SCREW SET B
16028-KB1-D11
|
$7.51 | ||
|
Available to order. Add to View Price |
|||
|
#8
SCREW SET B
16028-402-004
Superseded by 16028-KB1-D11
|
$7.51 | ||
|
Unavailable |
|||
|
#9
PLATE, SETTING (NOT AVAILABLE)
16035-446-771
|
$11.01 | ||
|
Unavailable |
|||
|
#10
CARBURETOR ASSY. (PD97A B) (NOT AVAILABLE)
16100-KT0-034
|
$268.93 | ||
|
Unavailable |
|||
|
#11
GASKET, TOP
16110-HB5-004
|
$5.45 | ||
|
Unavailable |
|||
|
#12
LEVER, CHOKE (NOT AVAILABLE)
16135-KA8-671
|
$38.82 | ||
|
Unavailable |
|||
|
#13
HOLDER, NEEDLE JET
16165-446-305
|
$38.26 | ||
|
Unavailable |
|||
|
#14
HOLDER, JET
16168-382-014
|
$11.87 | ||
|
Available to order. Add to View Price |
|||
|
#15
TUBE, FUEL
16198-HC0-405
Superseded by 16199-KG4-405
|
$11.49 | ||
|
Available to order. Add to View Price |
|||
|
#15
TUBE, OVERFLOW
16199-KG4-405
|
$11.49 | ||
|
Unavailable |
|||
|
#15
TUBE, FUEL
16199-187-003
Superseded by 16199-KG4-405
|
$11.49 | ||
|
Unavailable |
|||
|
#16
TUBE, OVERFLOW
16199-435-771
|
$13.80 | ||
|
Available to order. Add to View Price |
|||
|
#17
SCREW-WASHER (4X16)
93892-04016-08
|
$0.77 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#18
SCREW-WASHER (5X12)
93892-05012-08
|
$1.20 | ||
|
Available to order. Add to View Price |
|||
|
#19
CLIP, TUBE (B6.5)
95002-02650
|
$1.55 | ||
|
Available to order. Add to View Price |
|||
|
#20
JET, MAIN (#110)
99101-357-1100
Superseded by 99113-GHB-1100
|
$11.29 | ||
|
Available to order. Add to View Price |
|||
|
#20
JET, MAIN (#110)
99113-GHB-1100
|
$11.29 | ||
|
Unavailable |
|||
|
#20
JET, MAIN (#95)
99101-357-0950
Superseded by 99113-GHB-0950
|
$10.91 | ||
|
Available to order. Add to View Price |
|||
|
#20
JET, MAIN (#98)
99101-357-0980
Superseded by 99113-GHB-0980
|
$11.29 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#20
JET, MAIN (#100)
99101-357-1000
Superseded by 99113-GHB-1000
|
$11.29 | ||
|
Available to order. Add to View Price |
|||
|
#20
JET, MAIN (#102)
99101-357-1020
Superseded by 99113-GHB-1020
|
$11.29 | ||
|
Available to order. Add to View Price |
|||
|
#20
JET, MAIN (#105)
99101-357-1050
Superseded by 99113-GHB-1050
|
$11.38 | ||
|
Available to order. Add to View Price |
|||
|
#20
JET, MAIN (#108)
99101-357-1080
Superseded by 99113-GHB-1080
|
$11.29 | ||
|
Available to order. Add to View Price |
|||
|
#20
JET, MAIN (#115)
99101-357-1150
|
$22.65 | ||
|
Available to order. Add to View Price |
|||
|
#20
JET, MAIN (#120)
99101-357-1200
|
$22.65 | ||
|
Available to order. Add to View Price |
|||
|
#20
JET, MAIN (#95)
99113-GHB-0950
|
$10.91 | ||
|
Unavailable |
|||
|
#20
JET, MAIN (#100)
99113-GHB-1000
|
$11.29 | ||
|
Unavailable |
|||
|
#20
JET, MAIN (#102)
99113-GHB-1020
|
$11.29 | ||
|
Unavailable |
|||
|
#20
JET, MAIN (#105)
99113-GHB-1050
|
$11.38 | ||
|
Unavailable |
|||
|
#20
JET, MAIN (#108)
99113-GHB-1080
|
$11.29 | ||
|
Unavailable |
|||
|
#20
JET, MAIN (#92)
99101-357-0920
Superseded by 99113-GHB-0920
|
$11.29 | ||
|
Available to order. Add to View Price |
|||
|
#20
JET, MAIN (#92)
99113-GHB-0920
|
$11.29 | ||
|
Unavailable |
|||
|
#21
JET, SLOW (#38)
99103-KA3-0380
Superseded by 99103-KBA-0380
|
$15.98 | ||
|
Available to order. Add to View Price |
|||
|
#21
JET, SLOW (#38)
99103-KBA-0380
|
$15.98 | ||
|
Unavailable |
|||
|
#21
JET, SLOW (#35)
99103-440-0350
|
$15.96 | ||
|
Available to order. Add to View Price |
|||
|
#21
JET, SLOW (#38)
99103-440-0380
Superseded by 99103-KBA-0380
|
$15.98 | ||
|
Unavailable |
|||
