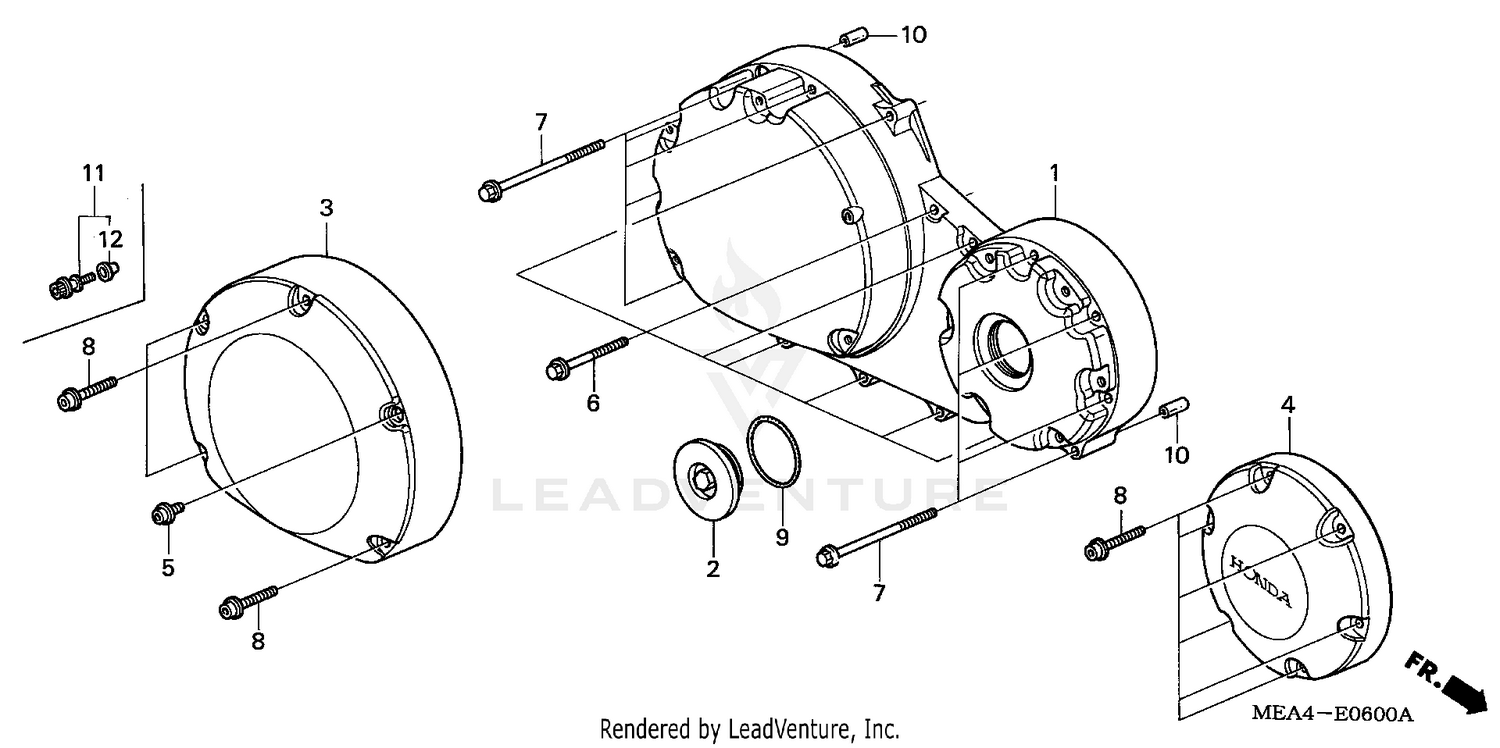

Right Crankcase Cover Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
COVER, R. CRANKCASE
11331-MEA-671
|
$252.74 | ||
|
Available to order. Add to View Price |
|||
|
#2
CAP (45MM)
11332-MM5-000
|
$29.09 | ||
|
Available to order. Add to View Price |
|||
|
#3
COVER, CLUTCH (FRAME NO.)
11340-MEM-671
|
$314.91 | ||
|
Available to order. Add to View Price |
|||
|
#4
COVER, TIMING
11350-MEM-670
|
$121.64 | ||
|
Available to order. Add to View Price |
|||
|
#5
BOLT, FLANGE SOCKET (6X8)
90002-MEA-670
|
$2.71 | ||
|
Available to order. Add to View Price |
|||
|
#6
BOLT, FLANGE (6X35) (NSHF)
90006-GHB-700
|
$2.20 | ||
|
Available to order. Add to View Price |
|||
|
#7
BOLT, FLANGE (6X60) (NSHF)
90006-GHB-750
|
$2.25 | ||
|
Available to order. Add to View Price |
|||
|
#8
BOLT, SOCKET (6X22) (FRAME NO.)
90031-MCH-000
|
$2.45 | ||
|
Available to order. Add to View Price |
|||
|
#9
O-RING (48.1X3.6) (ARAI)
91301-ML7-003
|
$4.93 | ||
|
Available to order. Add to View Price |
|||
|
#10
PIN, DOWEL (8X14) (Honda Code 0069310)
94301-08140
|
$2.35 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#11
BOLT ASSY., SPECIAL (6X22) (FRAME NO.)
90020-MBA-D20
|
$5.33 | ||
|
Available to order. Add to View Price |
|||
|
#12
RUBBER, MOUNTING (FRAME NO.)
90543-MBA-000
|
$3.67 | ||
|
Available to order. Add to View Price |
|||
