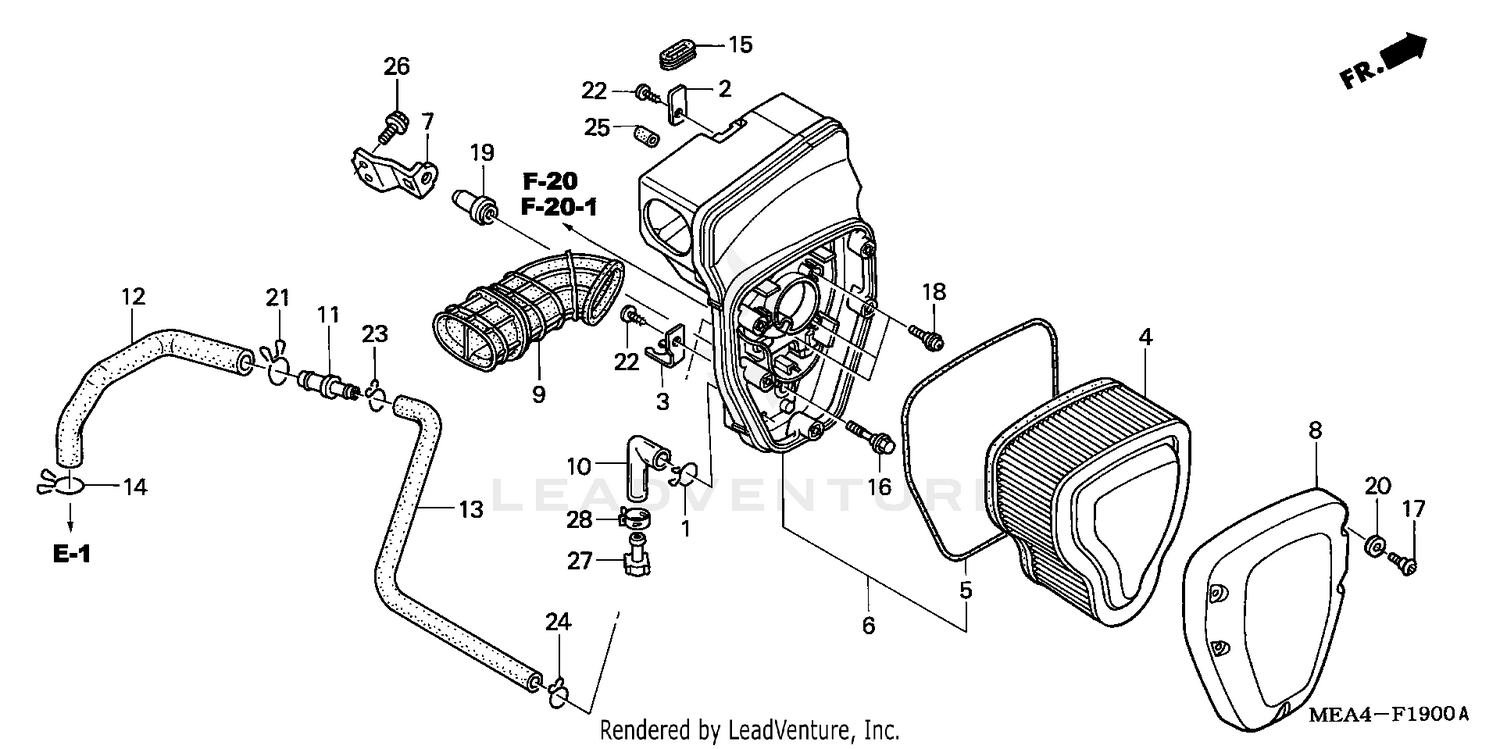

Air Cleaner Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CLIP, OIL DRAIN TUBE
15771-KV6-000
|
$4.69 | ||
|
Available to order. Add to View Price |
|||
|
#2
STAY A, AIR CLEANER
17201-MEA-670
|
$2.64 | ||
|
Available to order. Add to View Price |
|||
|
#3
STAY, IDLE ADJUST
17202-MEA-670
|
$5.16 | ||
|
Available to order. Add to View Price |
|||
|
#4
ELEMENT, AIR CLEANER
17213-MEA-670
|
$31.00 | ||
|
Available to order. Add to View Price |
|||
|
#5
SEAL, AIR CLEANER
17219-MCH-300
|
$4.69 | ||
|
Available to order. Add to View Price |
|||
|
#6
HOUSING, AIR CLEANER
17221-MEA-670
|
$47.96 | ||
|
Available to order. Add to View Price |
|||
|
#7
STAY, AIR CLEANER
17223-MCH-000
|
$33.29 | ||
|
Available to order. Add to View Price |
|||
|
#8
COVER, AIR CLEANER
17231-MCH-B50
|
$69.88 | ||
|
Available to order. Add to View Price |
|||
|
#8
COVER, AIR CLEANER
17231-MCH-000
Superseded by 17231-MCH-B50
|
$69.88 | ||
|
Unavailable |
|||
|
#9
DUCT, AIR CLEANER IN.
17253-MEA-670
|
$26.93 | ||
|
Available to order. Add to View Price |
|||
|
#10
TUBE A, DRAIN
17366-428-670
|
$9.58 | ||
|
Available to order. Add to View Price |
|||
|
#11
JOINT, DRAIN TUBE
17359-GEE-710
|
$2.49 | ||
|
Available to order. Add to View Price |
|||
|
#12
TUBE A, BREATHER
17552-MEA-670
|
$3.60 | ||
|
Available to order. Add to View Price |
|||
|
#13
TUBE B, BREATHER
17553-MEA-670
|
$4.55 | ||
|
Available to order. Add to View Price |
|||
|
#14
CLIP, BREATHER TUBE
17554-MB0-000
|
$3.73 | ||
|
Available to order. Add to View Price |
|||
|
#15
RUBBER, ENGINE SIDE COVER
83124-MN5-000
|
$3.84 | ||
|
Available to order. Add to View Price |
|||
|
#16
BOLT, FLANGE (6X25)
90023-MEA-670
|
$1.62 | ||
|
Available to order. Add to View Price |
|||
|
#17
SCREW, SPECIAL (5X10.5)
90114-MCH-000
|
$3.33 | ||
|
Available to order. Add to View Price |
|||
|
#18
SCREW, PAN (5X13)
90117-MN5-000
|
$2.60 | ||
|
Available to order. Add to View Price |
|||
|
#19
NUT, SPECIAL (6MM)
90301-MBY-003
|
$7.11 | ||
|
Available to order. Add to View Price |
|||
|
#20
WASHER, AIR CLEANER SETTING
90507-MCH-000
|
$2.44 | ||
|
Available to order. Add to View Price |
|||
|
#21
CLIP, TUBE (B16)
90643-MK3-781
|
$2.56 | ||
|
Available to order. Add to View Price |
|||
|
#22
SCREW, TAPPING (5X12) (PO)
93913-25280
|
$0.73 | ||
|
Available to order. Add to View Price |
|||
|
#23
CLIP, TUBE (B12)
95002-02120
|
$2.03 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#24
CLIP, TUBE (B12.5)
95002-02130
|
$1.20 | ||
|
Available to order. Add to View Price |
|||
|
#25
BULK HOSE, VACUUM (4.5X1000) (4.5X130) (BULK HOSE: 95005-45001-20M)
95005-45001-20M
|
$40.16 | ||
|
Available to order. Add to View Price |
|||
|
#26
BOLT, FLANGE (6X12)
95701-06012-07
|
$1.70 | ||
|
Available to order. Add to View Price |
|||
|
#27
PLUG, BREATHER TUBE
17370-382-870
|
$4.71 | ||
|
Available to order. Add to View Price |
|||
|
#28
CLAMP, TUBE (D14.5)
91406-MS8-000
|
$4.89 | ||
|
Available to order. Add to View Price |
|||
