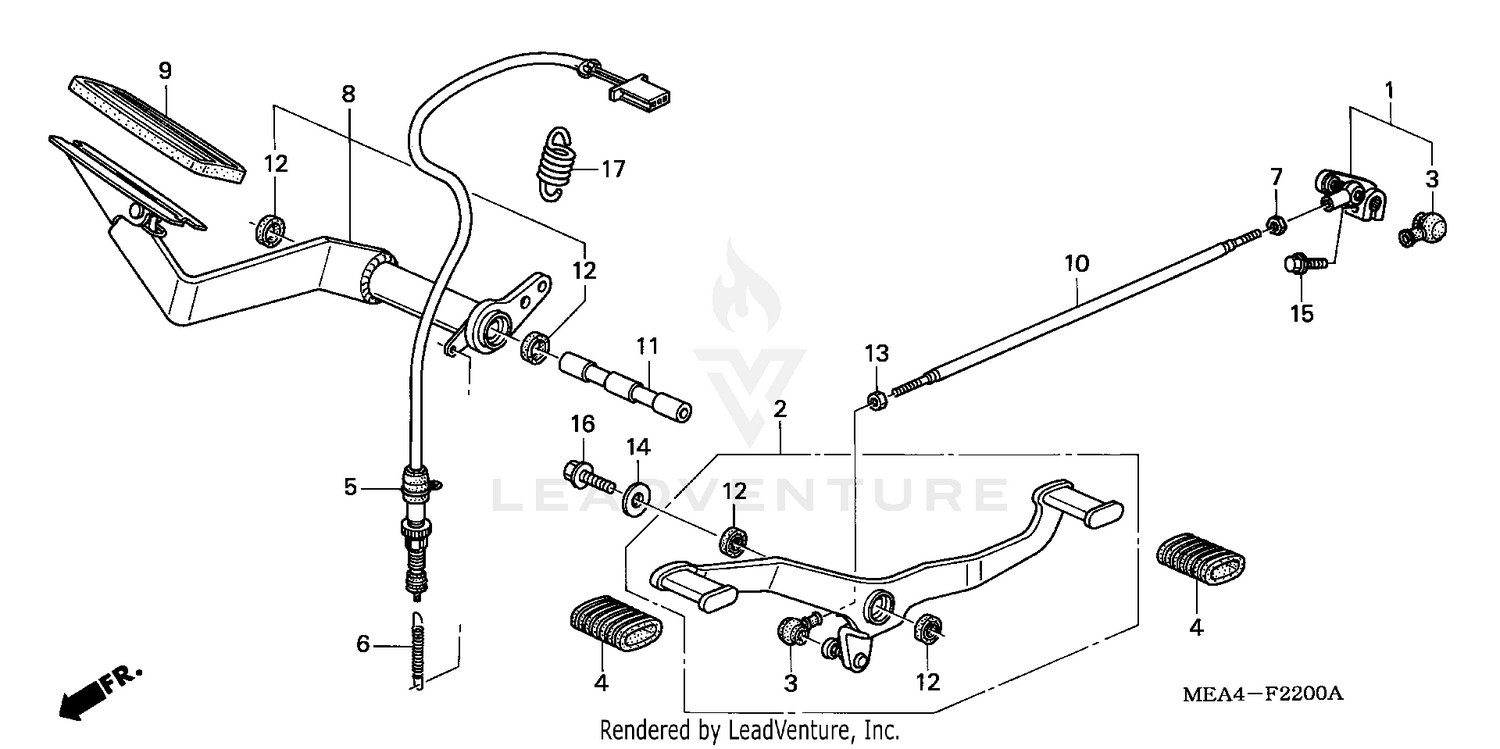

Pedal Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
ARM, GEARSHIFT
24702-MEA-740
|
$63.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
PEDAL, GEARSHIFT
24710-MEA-740
|
$78.33 | ||
|
Available to order. Add to View Price |
|||
|
#3
COVER, DUST
24724-MBW-D21
|
$8.76 | ||
|
Available to order. Add to View Price |
|||
|
#4
RUBBER, GEARSHIFT PEDAL
24781-371-000
|
$6.44 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#5
SWITCH ASSY., RR. STOP
35350-MEA-671
|
$25.91 | ||
|
Available to order. Add to View Price |
|||
|
#6
SPRING, STOP SWITCH
35357-KY2-700
|
$7.42 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#7
NUT, HEX. (6MM) (LEFT HAND THREAD)
45423-KA4-700
|
$1.85 | ||
|
Available to order. Add to View Price |
|||
|
#8
PEDAL, RR. BRAKE
46510-MEA-671
|
$376.95 | ||
|
Available to order. Add to View Price |
|||
|
#9
COVER, BRAKE PEDAL
46545-SA5-980
|
$10.52 | ||
|
Available to order. Add to View Price |
|||
|
#10
BOLT, TIE ROD
90065-MEA-670
|
$60.60 | ||
|
Available to order. Add to View Price |
|||
|
#11
SHAFT, BRAKE PIVOT
90115-MEA-670
|
$12.62 | ||
|
Available to order. Add to View Price |
|||
|
#12
DUST SEAL (15X20X3)
91251-MT4-003
|
$4.78 | ||
|
Available to order. Add to View Price |
|||
|
#13
NUT, HEX. (6MM)
94002-06020-0S
|
$1.25 | ||
|
Available to order. Add to View Price |
|||
|
#14
WASHER, PLAIN (8MM)
94103-08000
|
$0.75 | ||
|
Available to order. Add to View Price |
|||
|
#15
BOLT, FLANGE (6X20) BOLT, SPECIAL FLANGE (6X22)
95701-06020-00
|
$1.85 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#16
BOLT, FLANGE (8X20)
95701-08020-00
|
$1.95 | ||
|
Available to order. Add to View Price |
|||
|
#17
SPRING, BRAKE PEDAL
46514-KZ4-J00
|
$5.76 | ||
|
Available to order. Add to View Price |
|||
