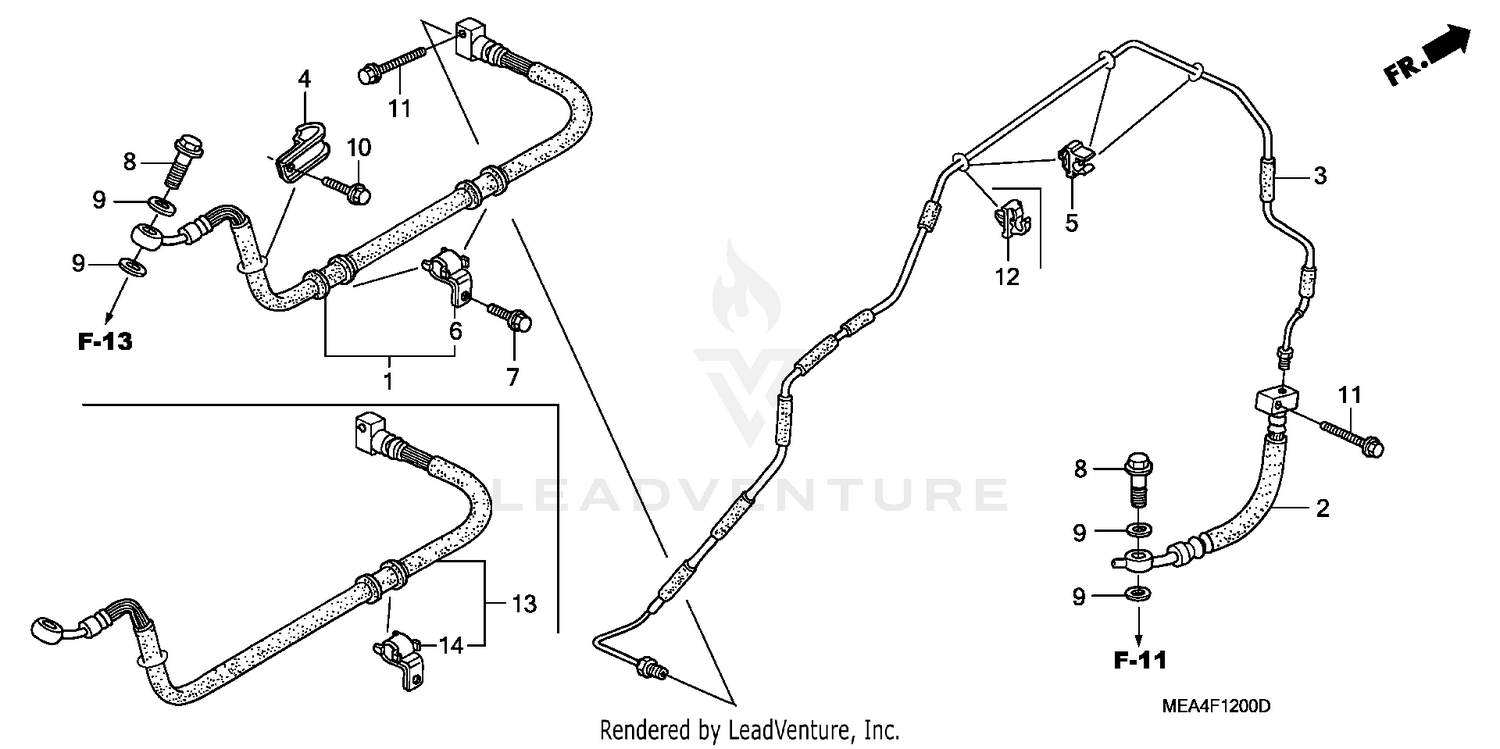

Brake Line Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#2
HOSE, RR. MASTER CYLINDER JOINT
43311-MEA-671
|
$5.58 | ||
|
Available to order. Add to View Price |
|||
|
#3
PIPE, RR. BRAKE
43312-MEA-A10
|
$23.87 | ||
|
Unavailable |
|||
|
#4
CLAMP, RR. BRAKE HOSE
43350-KBV-000
Superseded by 43350-MBZ-G00
|
$6.42 | ||
|
Available to order. Add to View Price |
|||
|
#4
CLAMP, RR. BRAKE HOSE
43350-MBZ-G00
|
$6.42 | ||
|
Unavailable |
|||
|
#5
CLIP, BRAKE PIPE
46394-SN7-003
|
$11.57 | ||
|
Available to order. Add to View Price |
|||
|
#7
BOLT, FLANGE (6X16) (SH)
90102-MEA-740
|
$1.65 | ||
|
Available to order. Add to View Price |
|||
|
#8
BOLT, OIL (10X22) (SAGA)
90145-MS9-612
|
$9.20 | ||
|
Available to order. Add to View Price |
|||
|
#9
WASHER, OIL BOLT
90545-300-000
|
$5.02 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#10
BOLT, FLANGE (6X12)
90123-MCH-A00
|
$1.64 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#11
BOLT, FLANGE (6X25)
90124-MCH-A00
|
$1.64 | ||
|
Available to order. Add to View Price |
|||
|
#13
HOSE, RR. BRAKE
43310-MEA-A22
|
$28.26 | ||
|
Unavailable |
|||
|
#14
CLAMP, BRAKE HOSE
43315-MEA-630
|
$6.98 | ||
|
Available to order. Add to View Price |
|||
