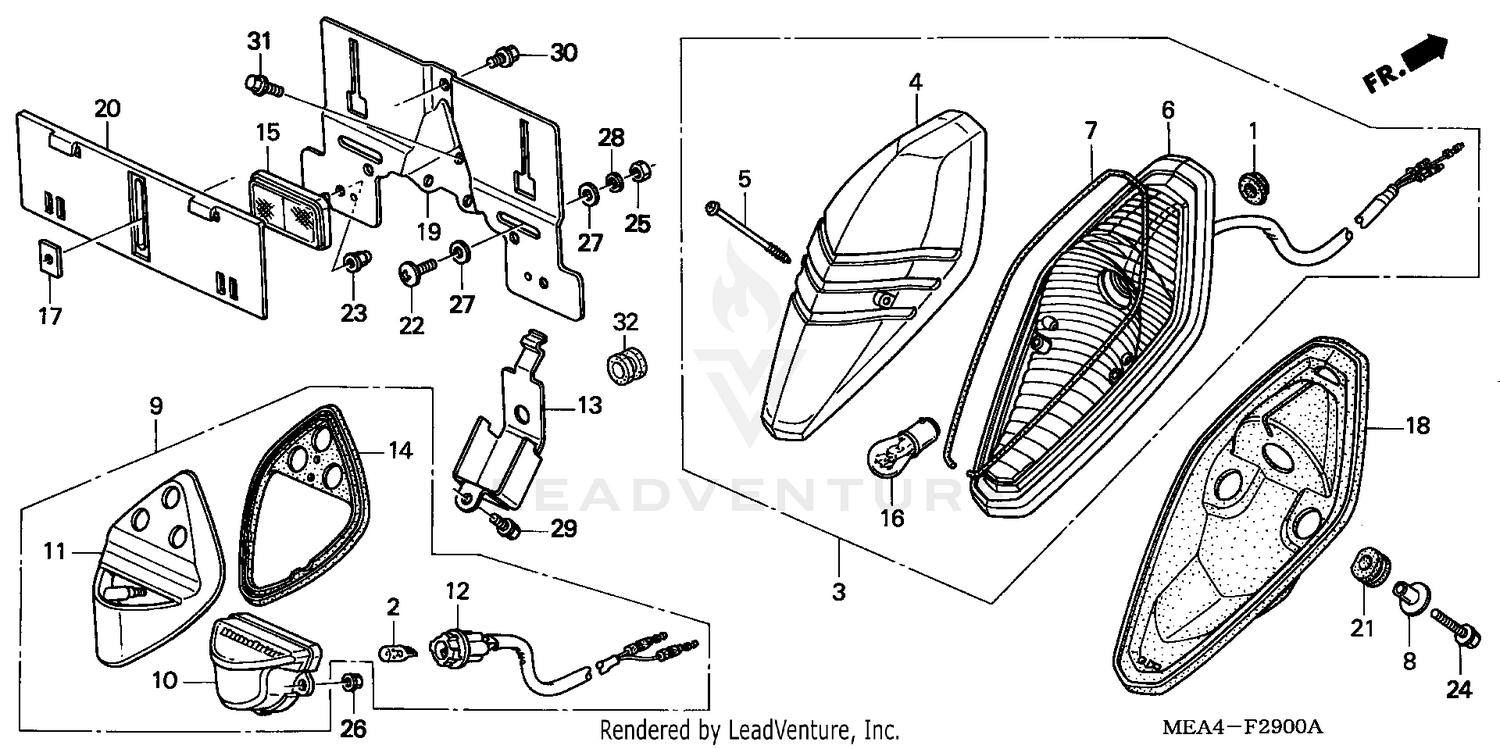

Taillight Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
GROMMET, WIRE HARNESS
32983-028-000
|
$1.65 | ||
|
Available to order. Add to View Price |
|||
|
#2
BULB (12V 5W) (STANLEY)
33301-SA0-741
|
$4.93 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#3
TAILLIGHT ASSY.
33701-MCV-671
|
$275.38 | ||
|
Available to order. Add to View Price |
|||
|
#4
LENS, TAILLIGHT
33702-MCV-671
|
$81.95 | ||
|
Available to order. Add to View Price |
|||
|
#5
SCREW, TAPPING (4X40)
90104-KAF-000
|
$3.09 | ||
|
Available to order. Add to View Price |
|||
|
#6
BASE, TAILLIGHT
33704-MCV-671
|
$104.61 | ||
|
Unavailable |
|||
|
#7
RUBBER, SEAL
33709-MCV-671
|
$7.33 | ||
|
Unavailable |
|||
|
#8
COLLAR, TAILLIGHT SETTING
33715-MC4-610
|
$5.24 | ||
|
Available to order. Add to View Price |
|||
|
#9
LIGHT ASSY., LICENSE
33720-MCV-671
Superseded by 33720-MCV-672
|
$159.18 | ||
|
Available to order. Add to View Price |
|||
|
#9
LIGHT ASSY., LICENSE
33720-MCV-672
|
$159.18 | ||
|
Unavailable |
|||
|
#10
LIGHT, LICENSE
33721-MCV-671
|
$28.05 | ||
|
Available to order. Add to View Price |
|||
|
#11
COVER, LICENSE LIGHT
33722-MCV-671
|
$72.13 | ||
|
Available to order. Add to View Price |
|||
|
#12
SOCKET, LICENSE LIGHT
33723-MCV-671
Superseded by 33723-MCV-672
|
$13.74 | ||
|
Unavailable |
|||
|
#13
PROTECTOR, LICENSE LIGHT
33724-MCV-670
|
$23.02 | ||
|
Available to order. Add to View Price |
|||
|
#14
RUBBER, LICENSE LIGHT CUSHION
33725-MCV-671
|
$15.81 | ||
|
Unavailable |
|||
|
#15
REFLECTOR, RR. REFLEX
33741-MR1-671
|
$23.05 | ||
|
Available to order. Add to View Price |
|||
|
#16
BULB, TAIL/STOP LIGHT (12V 21/5W) (STANLEY) (FR.)
34906-447-711
|
$11.36 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#17
NUT, SPECIAL (6X7)
61304-958-003
|
$4.07 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#18
RUBBER, TAILLIGHT CUSHION
80122-MCV-671
|
$14.91 | ||
|
Unavailable |
|||
|
#19
BRACKET, NUMBER PLATE
84701-MCV-000
|
$88.29 | ||
|
Available to order. Add to View Price |
|||
|
#20
BRACKET B, NUMBER PLATE
84702-MCV-000
|
$70.53 | ||
|
Available to order. Add to View Price |
|||
|
#21
RUBBER, NUMBER BRACKET CUSHION
84705-292-000
|
$3.18 | ||
|
Available to order. Add to View Price |
|||
|
#22
SCREW, SPECIAL (6X14)
90110-GW0-000
Superseded by 90110-GAH-000
|
$3.15 | ||
|
Available to order. Add to View Price |
|||
|
#23
NUT, FLANGE CAP (5MM)
90167-SA0-980
|
$7.02 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#24
BOLT, FLANGE (5X20)
90197-MN5-000
|
$3.02 | ||
|
Available to order. Add to View Price |
|||
|
#25
NUT, HEX. (6MM)
94001-06000-0S
Superseded by 94001-06200-0S
|
$1.37 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#25
NUT, HEX. (6MM)
94001-06200-0S
|
$1.37 | ||
|
Unavailable |
|||
|
#26
NUT, FLANGE (4MM)
94050-04000
|
$1.28 | ||
|
Available to order. Add to View Price |
|||
|
#27
WASHER, PLAIN (6MM)
94101-06000
Superseded by 94101-06800
|
$0.68 | ||
|
Available to order. Add to View Price |
|||
|
#27
WASHER, PLAIN (6MM)
94101-06080
Superseded by 94101-06800
|
$0.68 | ||
|
Unavailable |
|||
|
#27
WASHER, PLAIN (6MM) (USED ON TAILLIGHT)
94101-06800
|
$0.68 | ||
|
Unavailable |
|||
|
#28
WASHER, SPRING (6MM)
94111-06000
|
$0.98 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#29
BOLT, FLANGE (6X12)
95701-06012-07
|
$1.70 | ||
|
Available to order. Add to View Price |
|||
|
#30
BOLT, FLANGE (6X8)
96001-06008-07
|
$1.07 | ||
|
Unavailable |
|||
|
#31
BOLT, FLANGE (6X12) (L. SIDE ONLY)
96001-06012-07
|
$1.88 | ||
|
Available to order. Add to View Price |
|||
|
#32
GROMMET, ADJUSTING COVER
11347-371-300
|
$2.35 | ||
|
Available to order. Add to View Price |
|||
