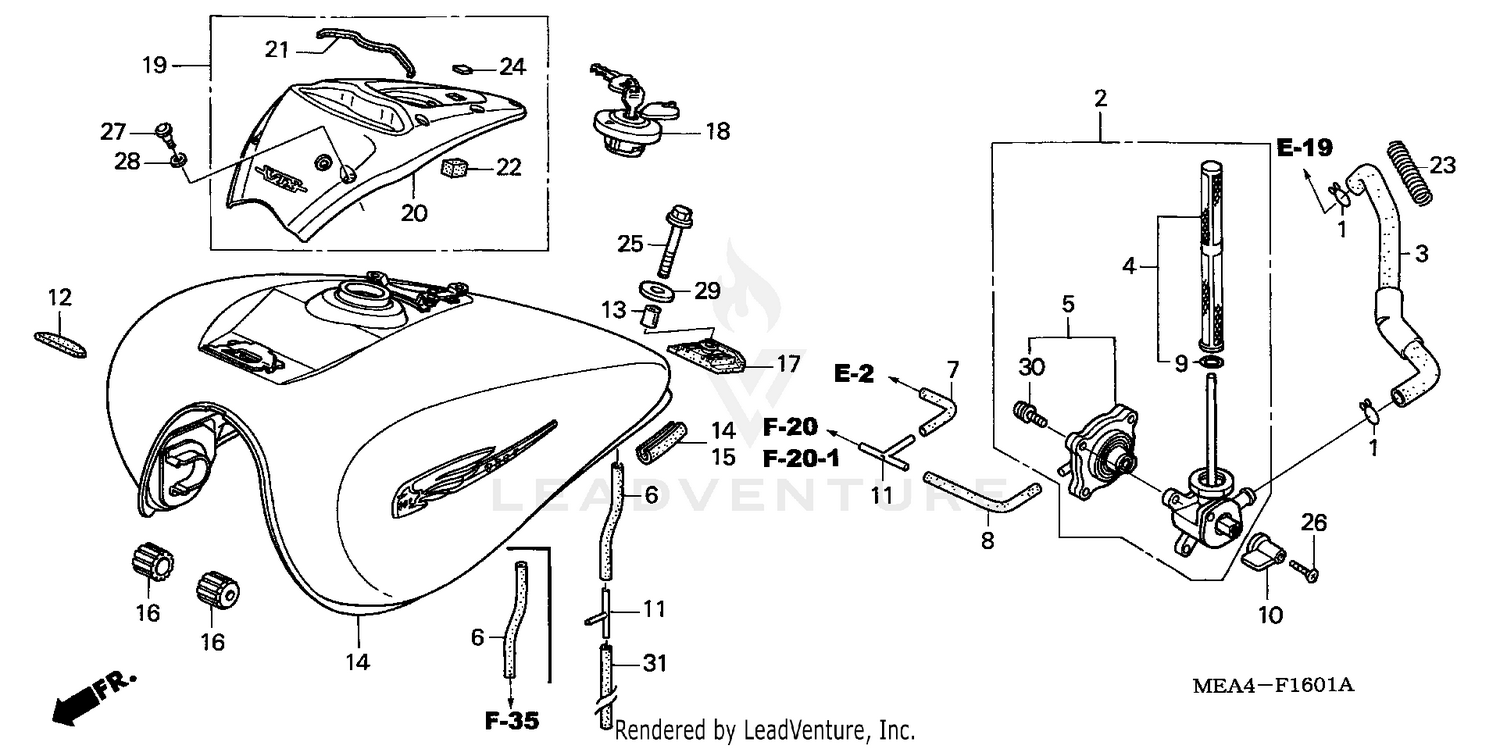

Fuel Tank (vtx1300s'04-'07) (vtx1300r'05-'07) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CLIP, OIL DRAIN TUBE
15771-KV6-000
|
$4.69 | ||
|
Available to order. Add to View Price |
|||
|
#2
PETCOCK ASSY.
16950-MEM-672
Superseded by 16950-MEM-674
|
$233.65 | ||
|
Available to order. Add to View Price |
|||
|
#2
PETCOCK ASSY.
16950-MEM-673
Superseded by 16950-MEM-674
|
$233.65 | ||
|
Unavailable |
|||
|
#2
PETCOCK ASSY.
16950-MEM-674
|
$233.65 | ||
|
Unavailable |
|||
|
#3
TUBE, FUEL
16951-MEM-670
|
$21.31 | ||
|
Available to order. Add to View Price |
|||
|
#4
SCREEN SET, FUEL STRAINER
16952-MAZ-003
|
$28.25 | ||
|
Available to order. Add to View Price |
|||
|
#5
COVER SET, PETCOCK
16953-KEA-000
Superseded by 16953-KEA-023
|
$56.02 | ||
|
Available to order. Add to View Price |
|||
|
#5
COVER SET, PETCOCK
16953-KEA-023
|
$56.02 | ||
|
Unavailable |
|||
|
#6
TUBE (3.5X300)
16956-MEA-670
|
$3.24 | ||
|
Available to order. Add to View Price |
|||
|
#7
TUBE A, VACUUM
16956-MEM-670
|
$3.00 | ||
|
Available to order. Add to View Price |
|||
|
#8
TUBE B, VACUUM
16957-MEM-670
|
$3.29 | ||
|
Available to order. Add to View Price |
|||
|
#9
O-RING (14.2X1.3)
16958-KM9-005
|
$4.89 | ||
|
Available to order. Add to View Price |
|||
|
#10
LEVER, PETCOCK
16963-MY5-610
|
$17.33 | ||
|
Available to order. Add to View Price |
|||
|
#11
JOINT, VACUUM TUBE (A)
17201-MG9-000
|
$19.31 | ||
|
Available to order. Add to View Price |
|||
|
#12
RUBBER, FR. FUEL TANK
17511-KGB-610
|
$5.47 | ||
|
Available to order. Add to View Price |
|||
|
#13
COLLAR, FUEL TANK MOUNTING
17515-MAH-000
|
$3.71 | ||
|
Available to order. Add to View Price |
|||
|
#14
TANK SET, FUEL *R274M* (WL) (DURANGO RED METALLIC)
17520-MEA-740ZC
|
$1,722.82 | ||
|
Unavailable |
|||
|
#14
TANK SET, FUEL *NH451M* (WL) (ORION SILVER METALLIC)
17520-MEA-740ZD
|
$1,715.64 | ||
|
Unavailable |
|||
|
#14
TANK SET, FUEL *RP166M* (WL) (KELLY MAGENTA METALLIC)
17520-MEA-740ZE
|
$1,541.83 | ||
|
Unavailable |
|||
|
#14
TANK SET, FUEL *NH1* (WL) (BLACK)
17520-MEA-740ZA
|
$2,252.87 | ||
|
Available to order. Add to View Price |
|||
|
#15
TRIM, FUEL TANK
17523-MEA-670
|
$3.53 | ||
|
Available to order. Add to View Price |
|||
|
#16
CUSHION, FR. FUEL TANK
17611-MCH-000
|
$35.91 | ||
|
Available to order. Add to View Price |
|||
|
#17
CUSHION, RR. FUEL TANK
17613-MEM-670
|
$33.40 | ||
|
Available to order. Add to View Price |
|||
|
#18
CAP, FUEL FILLER
17620-KR3-751
Superseded by 17620-KR3-753
|
$85.95 | ||
|
Available to order. Add to View Price |
|||
|
#18
CAP, FUEL FILLER
17620-KR3-752
Superseded by 17620-KR3-753
|
$85.95 | ||
|
Unavailable |
|||
|
#18
CAP, FUEL FILLER
17620-KR3-753
|
$85.95 | ||
|
Unavailable |
|||
|
#19
COVER SET, FR. TOP (TYPE1) (WL)
17620-MEA-670ZA
|
$108.62 | ||
|
Available to order. Add to View Price |
|||
|
#20
COVER, FR. TOP
17621-MEA-670
|
$56.42 | ||
|
Available to order. Add to View Price |
|||
|
#21
SEAL, FR. TOP COVER
17622-MEA-670
|
$7.20 | ||
|
Available to order. Add to View Price |
|||
|
#22
CUSHION, FR. TOP COVER
17624-MEA-670
|
$2.85 | ||
|
Available to order. Add to View Price |
|||
|
#23
WIRE, GUARD
17672-MY1-000
|
$8.71 | ||
|
Available to order. Add to View Price |
|||
|
#24
EMBLEM, PRODUCT (MARUI)
86150-KPG-901
|
$4.55 | ||
|
Available to order. Add to View Price |
|||
|
#25
BOLT, FLANGE (8X39)
90021-MEA-670
|
$1.40 | ||
|
Available to order. Add to View Price |
|||
|
#26
SCREW, OVAL (5X12)
90111-MZ5-000
|
$4.84 | ||
|
Available to order. Add to View Price |
|||
|
#27
SCREW, SPECIAL (5X10.5)
90114-MCH-000
|
$3.33 | ||
|
Available to order. Add to View Price |
|||
|
#28
WASHER, TOP COVER SETTING
90508-MCH-000
|
$2.60 | ||
|
Available to order. Add to View Price |
|||
|
#29
WASHER (8.5X28)
90534-MV4-000
|
$3.29 | ||
|
Available to order. Add to View Price |
|||
|
#30
SCREW-WASHER (4X16)
93892-04016-08
|
$0.77 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#30
SCREW-WASHER (4X16)
93892-04016-18
Superseded by 93892-04016-08
|
$0.77 | ||
|
Unavailable |
|||
|
#31
BULK HOSE, VACUUM (3.5X8000) (3.5X1000)
95005-35008-10M
|
$128.23 | ||
|
Available to order. Add to View Price |
|||
