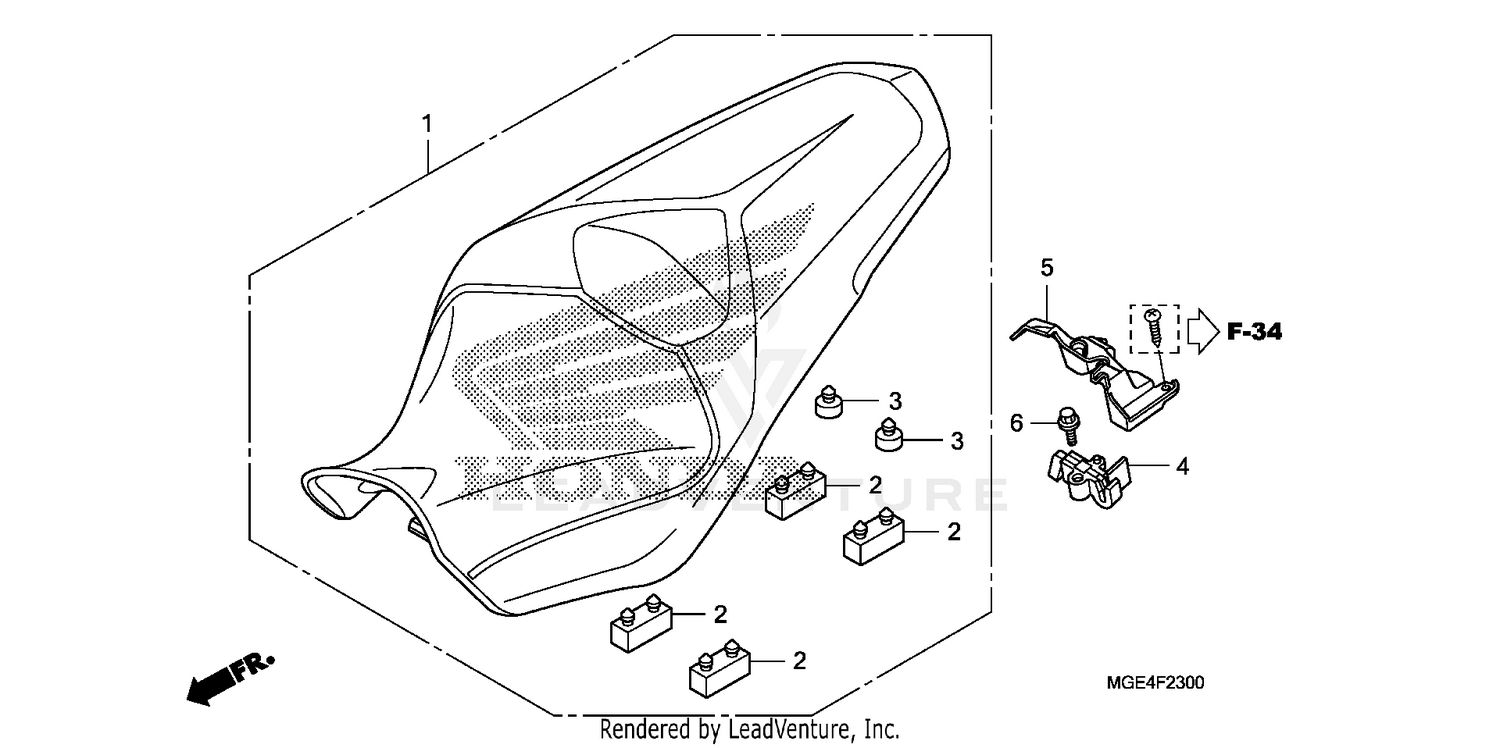

Seat Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
SEAT ASSY., DOUBLE
77200-MGE-003
Superseded by 77200-MGE-023
|
$630.96 | ||
|
Available to order. Add to View Price |
|||
|
#1
SEAT ASSY., DOUBLE
77200-MGE-013
Superseded by 77200-MGE-023
|
$630.96 | ||
|
Unavailable |
|||
|
#1
SEAT ASSY., DOUBLE
77200-MGE-023
|
$630.96 | ||
|
Unavailable |
|||
|
#2
RUBBER B, SEAT SETTING
77205-286-000
|
$6.64 | ||
|
Available to order. Add to View Price |
|||
|
#3
RUBBER, SEAT CUSHION
77206-GF0-000
|
$6.85 | ||
|
Available to order. Add to View Price |
|||
|
#4
HOOK, SEAT CATCH
77240-MGE-000
|
$43.67 | ||
|
Available to order. Add to View Price |
|||
|
#5
COVER, SEAT LOCK
77250-MGE-000
|
$6.67 | ||
|
Available to order. Add to View Price |
|||
|
#6
BOLT, FLANGE (6X14)
96001-06014-07
|
$1.36 | ||
|
Available to order. Add to View Price |
|||
