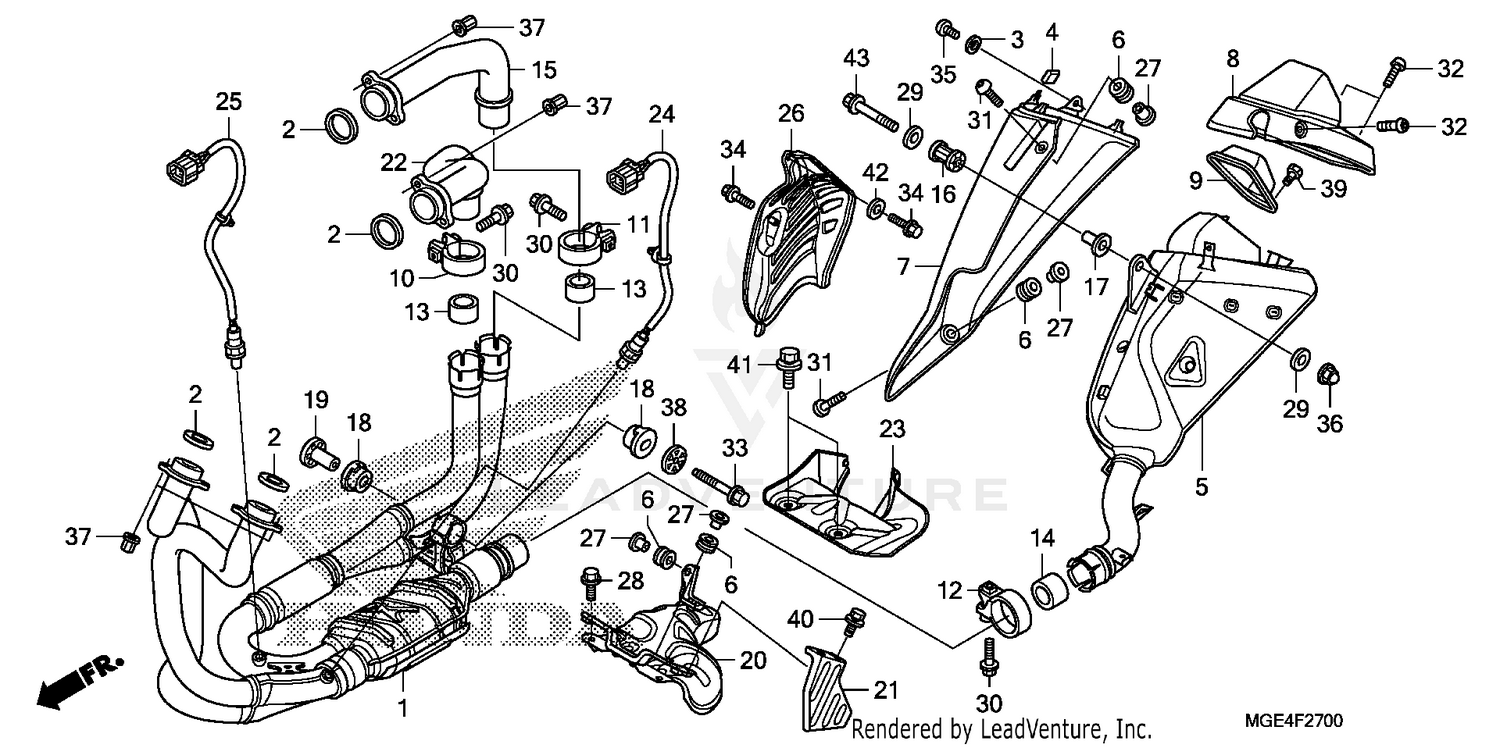

Muffler Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
PIPE, EX.
18150-MGE-003
|
$2,630.04 | ||
|
Available to order. Add to View Price |
|||
|
#1
PIPE, EX.
18150-MGE-013
|
$2,630.04 | ||
|
Available to order. Add to View Price |
|||
|
#2
GASKET, EX. PIPE
18291-MM5-860
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#3
GASKET, PROTECTOR
18292-KBR-000
|
$4.33 | ||
|
Available to order. Add to View Price |
|||
|
#4
RUBBER, PROTECTOR
18293-MN0-000
|
$2.44 | ||
|
Available to order. Add to View Price |
|||
|
#5
MUFFLER (COO)
18310-MGE-305
|
$1,544.28 | ||
|
Available to order. Add to View Price |
|||
|
#6
RUBBER, PROTECTOR MOUNTING
18345-MBT-610
|
$2.49 | ||
|
Available to order. Add to View Price |
|||
|
#7
GUARD, MUFFLER (UPPER)
18350-MGE-003
|
$412.82 | ||
|
Available to order. Add to View Price |
|||
|
#8
GUARD, RR. MUFFLER
18360-MGE-003
|
$315.89 | ||
|
Available to order. Add to View Price |
|||
|
#9
COVER, VALVE
18370-MGE-003
|
$41.38 | ||
|
Available to order. Add to View Price |
|||
|
#10
BAND, R. FR. MUFFLER (L. RR.) (L.)
18373-413-000
|
$44.47 | ||
|
Available to order. Add to View Price |
|||
|
#11
BAND, L. FR. MUFFLER (R. RR.) (R.)
18374-413-000
|
$44.47 | ||
|
Available to order. Add to View Price |
|||
|
#12
BAND, R. RR. MUFFLER
18375-MCF-D30
|
$33.78 | ||
|
Available to order. Add to View Price |
|||
|
#12
BAND, R. RR. MUFFLER
18375-MCF-003
Superseded by 18375-MCF-D30
|
$33.78 | ||
|
Unavailable |
|||
|
#13
GASKET, MUFFLER
18392-MK4-000
|
$16.55 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#14
GASKET, RR. EX.
18393-MCF-003
|
$20.55 | ||
|
Available to order. Add to View Price |
|||
|
#15
PIPE, R. RR. EX.
18420-MGE-003
|
$214.60 | ||
|
Available to order. Add to View Price |
|||
|
#16
RUBBER, MUFFLER MOUNTING
18421-KV3-950
|
$3.76 | ||
|
Available to order. Add to View Price |
|||
|
#17
COLLAR, MUFFLER MOUNTING
18422-MA6-000
|
$9.95 | ||
|
Available to order. Add to View Price |
|||
|
#18
RUBBER, EX. PIPE MOUNTING
18422-MGE-000
|
$21.65 | ||
|
Available to order. Add to View Price |
|||
|
#19
COLLAR, EX. PIPE MOUNTING
18423-MGE-000
|
$10.85 | ||
|
Available to order. Add to View Price |
|||
|
#20
PROTECTOR, EX. PIPE (UPPER)
18425-MGE-000
|
$163.46 | ||
|
Available to order. Add to View Price |
|||
|
#21
SUB-PROTECTOR, EX. PIPE (UPPER)
18426-MGE-000
|
$12.47 | ||
|
Available to order. Add to View Price |
|||
|
#22
PIPE, L. RR. EX.
18470-MGE-003
|
$214.60 | ||
|
Available to order. Add to View Price |
|||
|
#23
PROTECTOR, EX. PIPE (LOWER)
18475-MGE-000
|
$76.42 | ||
|
Available to order. Add to View Price |
|||
|
#24
SENSOR, OXYGEN (#1-4)
36531-MGE-641
|
$284.93 | ||
|
Available to order. Add to View Price |
|||
|
#25
SENSOR, OXYGEN (#2-3)
36532-MGE-641
|
$284.85 | ||
|
Available to order. Add to View Price |
|||
|
#26
PROTECTOR, HEAT
50606-MGE-000
|
$121.07 | ||
|
Available to order. Add to View Price |
|||
|
#27
COLLAR, HEAT GUARD SETTING
50609-MCW-D00
|
$2.84 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#28
BOLT, FLANGE (6X16) (NSHF)
90004-GHB-630
|
$4.40 | ||
|
Available to order. Add to View Price |
|||
|
#29
WASHER, PLAIN (8.5X22X2.3)
90509-642-000
|
$8.58 | ||
|
Available to order. Add to View Price |
|||
|
#30
BOLT, FLANGE (8X35)
90103-KCM-620
|
$1.80 | ||
|
Available to order. Add to View Price |
|||
|
#31
SCREW, PAN (6X12)
90106-KRG-000
|
$2.49 | ||
|
Available to order. Add to View Price |
|||
|
#32
BOLT, SPECIAL (5X10) (SUS)
90119-MGE-000
|
$5.07 | ||
|
Available to order. Add to View Price |
|||
|
#33
BOLT, FLANGE (8X65)
90127-MGE-000
|
$4.29 | ||
|
Available to order. Add to View Price |
|||
|
#34
BOLT,FLANGE SH 6X
90128-MGE-000
Superseded by 90101-MJN-A00
|
$2.16 | ||
|
Available to order. Add to View Price |
|||
|
#35
BOLT, SPECIAL (6MM)
90170-MEB-670
|
$2.05 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#36
NUT, CAP (8MM)
90301-SA0-000
Superseded by 90443-KF9-900
|
$5.37 | ||
|
Available to order. Add to View Price |
|||
|
#36
NUT, CAP (8MM)
90443-KF9-900
|
$5.37 | ||
|
Unavailable |
|||
|
#37
NUT, SPECIAL (6MM)
90304-HB3-771
|
$7.62 | ||
|
Available to order. Add to View Price |
|||
|
#38
WASHER (8.5X38)
90505-MGE-000
|
$2.55 | ||
|
Available to order. Add to View Price |
|||
|
#39
BOLT, HEX. (5X8)
92101-05008-4J
|
$2.37 | ||
|
Available to order. Add to View Price |
|||
|
#40
BOLT-WASHER (5X10)
93401-05010-00
|
$1.16 | ||
|
Available to order. Add to View Price |
|||
|
#41
BOLT-WASHER (6X12)
93404-06012-07
|
$1.70 | ||
|
Unavailable |
|||
|
#41
BOLT-WASHER (6X12)
93404-06012-08
Superseded by 93404-06012-07
|
$1.70 | ||
|
Unavailable |
|||
|
#42
WASHER, PLAIN (6MM)
94103-06000
|
$1.03 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#43
BOLT, FLANGE (8X45)
96300-08045-04
|
$1.73 | ||
|
Available to order. Add to View Price |
|||
