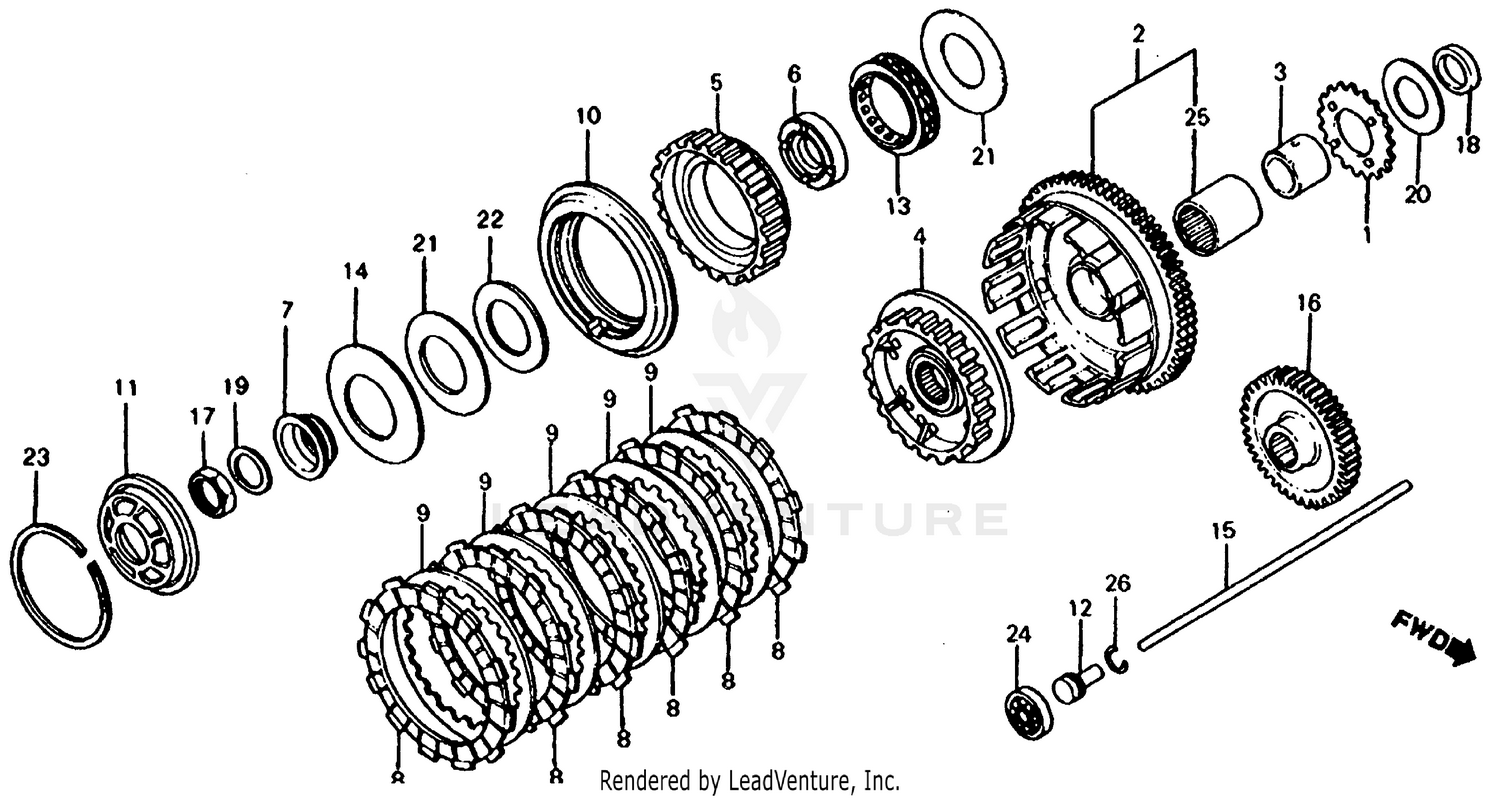

Clutch 83 Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
SPROCKET, OIL PUMP DRIVE (26T) (NOT AVAILABLE)
15131-MB0-000
|
$28.30 | ||
|
Unavailable |
|||
|
#2
CLUTCH (OUTER) (NOT AVAILABLE)
22100-MB0-770
Superseded by 22100-MN2-000
|
$287.49 | ||
|
Unavailable |
|||
|
#2
CLUTCH (OUTER) (NOT AVAILABLE)
22100-MB0-771
Superseded by 22100-MN2-000
|
$287.49 | ||
|
Unavailable |
|||
|
#2
CLUTCH (OUTER) (NOT AVAILABLE)
22100-MB0-772
Superseded by 22100-MN2-000
|
$287.49 | ||
|
Unavailable |
|||
|
#2
CLUTCH (OUTER) (NOT AVAILABLE)
22100-MK3-730
Superseded by 22100-MN2-000
|
$287.49 | ||
|
Unavailable |
|||
|
#3
GUIDE, CLUTCH (OUTER)
22116-MB0-000
|
$38.58 | ||
|
Available to order. Add to View Price |
|||
|
#4
CENTER A, CLUTCH
22120-MB0-770
|
$117.75 | ||
|
Unavailable |
|||
|
#5
CENTER B, CLUTCH
22131-MB0-770
Superseded by 22131-MJ0-010
|
$98.77 | ||
|
Available to order. Add to View Price |
|||
|
#5
CENTER B, CLUTCH
22131-MJ0-010
|
$98.77 | ||
|
Unavailable |
|||
|
#6
INNER, ONE-WAY CLUTCH
22141-MB0-770
|
$35.79 | ||
|
Unavailable |
|||
|
#7
PLATE, SPRING SETTING
22151-MB0-770
|
$23.93 | ||
|
Unavailable |
|||
|
#8
DISK, CLUTCH FRICTION
22201-MB0-003
Superseded by 22201-MM5-000
|
$34.40 | ||
|
Available to order. Add to View Price |
|||
|
#8
DISK, CLUTCH FRICTION
22201-MM5-000
|
$34.40 | ||
|
Unavailable |
|||
|
#9
PLATE, CLUTCH
22321-MG8-000
|
$18.71 | ||
|
Available to order. Add to View Price |
|||
|
#9
PLATE, CLUTCH
22321-283-000
Superseded by 22321-MG8-000
|
$18.71 | ||
|
Unavailable |
|||
|
#10
PLATE, CLUTCH PRESSURE (NOT AVAILABLE)
22351-MB0-770
|
$63.37 | ||
|
Unavailable |
|||
|
#10
PLATE, CLUTCH PRESSURE
22351-MB0-771
|
$81.41 | ||
|
Unavailable |
|||
|
#11
PLATE, CLUTCH LIFTER
22352-MB0-770
|
$36.91 | ||
|
Unavailable |
|||
|
#12
PIECE, CLUTCH JOINT (NOT AVAILABLE)
22366-MB0-000
|
$8.36 | ||
|
Unavailable |
|||
|
#13
CLUTCH, ONE-WAY
22425-MB0-772
|
$66.97 | ||
|
Unavailable |
|||
|
#14
SPRING, CLUTCH
22441-MB0-771
|
$18.76 | ||
|
Unavailable |
|||
|
#15
ROD, CLUTCH LIFTER
22850-MB0-770
|
$21.05 | ||
|
Unavailable |
|||
|
#16
GEAR, PRIMARY DRIVE (38T)
23103-MB0-770
Superseded by 23103-MB0-771
|
$153.26 | ||
|
Unavailable |
|||
|
#16
GEAR, PRIMARY DRIVE (38T)
23103-MB0-771
|
$153.26 | ||
|
Unavailable |
|||
|
#17
NUT, LOCK (22MM)
90051-422-000
Superseded by 90201-MB0-770
|
$7.79 | ||
|
Unavailable |
|||
|
#17
NUT, LOCK (22MM)
90201-MB0-770
|
$7.79 | ||
|
Unavailable |
|||
|
#18
COLLAR (25.2X7) (NOT AVAILABLE)
90203-MB0-000
|
$3.88 | ||
|
Unavailable |
|||
|
#19
WASHER, SPRING (22MM)
90432-MB0-000
Superseded by 90432-MB0-010
|
$11.35 | ||
|
Available to order. Add to View Price |
|||
|
#19
WASHER, SPRING (22MM)
90432-MB0-010
|
$11.35 | ||
|
Unavailable |
|||
|
#20
WASHER, THRUST (25MM)
90459-MB0-000
|
$11.76 | ||
|
Unavailable |
|||
|
#21
WASHER (44X85X1.6)
90461-MB0-770
Superseded by 90461-MJ0-000
|
$19.65 | ||
|
Unavailable |
|||
|
#21
WASHER (44X85X1.6)
90461-MJ0-000
|
$19.65 | ||
|
Unavailable |
|||
|
#22
WASHER (44X74X3.2)
90462-MB0-770
Superseded by 90462-MJ0-000
|
$27.97 | ||
|
Unavailable |
|||
|
#22
WASHER (44X74X3.2)
90462-MJ0-000
|
$27.97 | ||
|
Unavailable |
|||
|
#23
CIRCLIP (INNER) (95MM) (NOT AVAILABLE)
90601-MB0-770
|
$6.68 | ||
|
Unavailable |
|||
|
#23
CIRCLIP (INNER) (95MM)
90601-MB0-771
|
$12.91 | ||
|
Available to order. Add to View Price |
|||
|
#24
BEARING, RADIAL BALL (16003)
91008-362-000
Superseded by 91011-KK6-013
|
$18.67 | ||
|
Available to order. Add to View Price |
|||
|
#25
BEARING, NEEDLE (35X42X30) (TOYO)
91024-MB0-003
|
$98.35 | ||
|
Available to order. Add to View Price |
|||
|
#25
BEARING, NEEDLE (35X42X30) (TOYO)
91024-MB0-004
Superseded by 91024-MB0-003
|
$98.35 | ||
|
Unavailable |
|||
|
#26
CLIP, PISTON PIN (15MM)
94601-15000
|
$1.16 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
