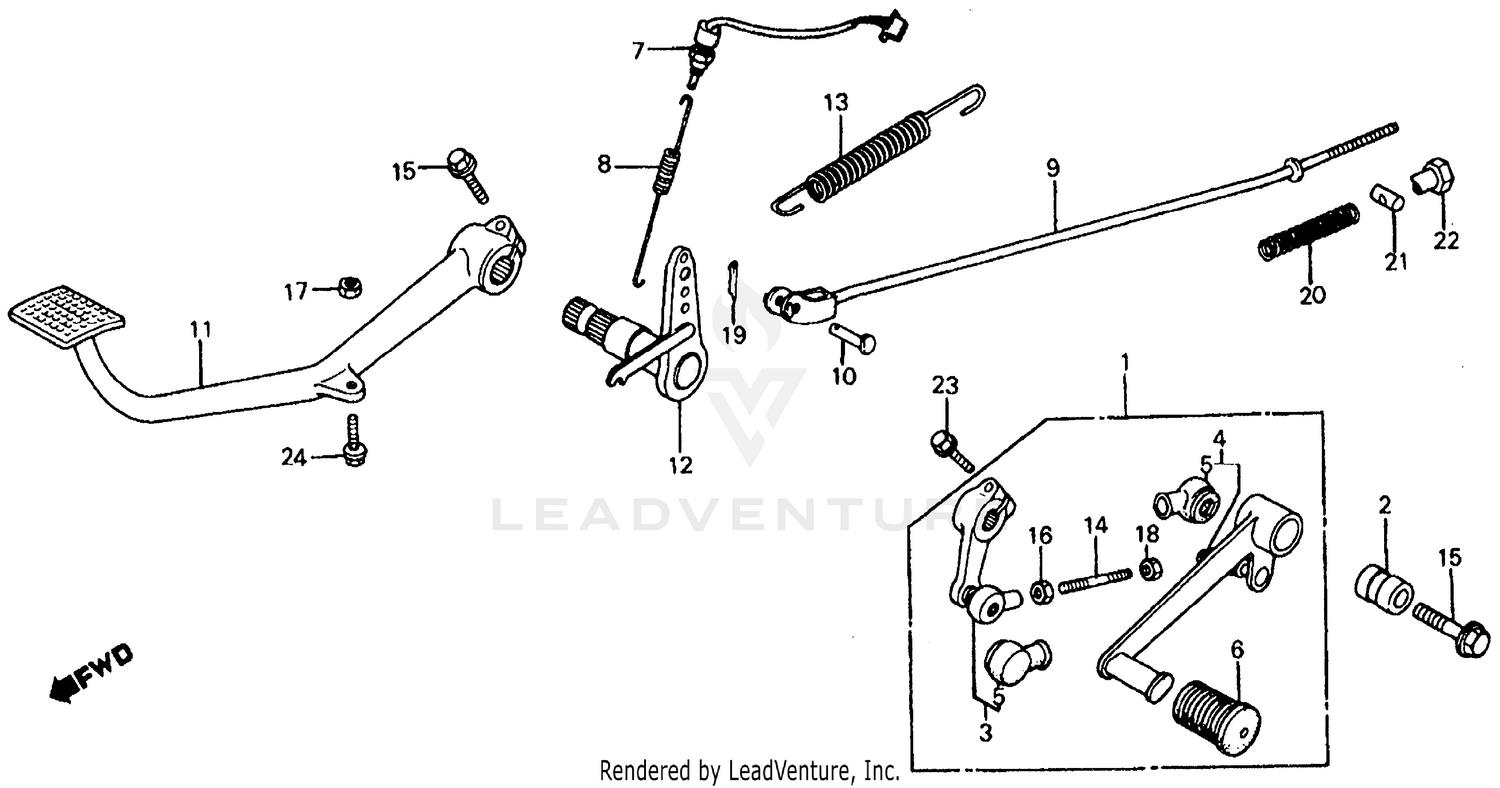

Brake Pedal + Gearshift Pedal Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
PEDAL ASSY., GEARSHIFT (NOT AVAILABLE)
24700-MB0-700
Superseded by 24700-MB0-000
|
$83.81 | ||
|
Unavailable |
|||
|
#2
COLLAR, GEARSHIFT PEDAL PIVOT
24705-MB0-000
|
$14.75 | ||
|
Available to order. Add to View Price |
|||
|
#2
COLLAR, GEARSHIFT PEDAL PIVOT
24705-MT6-000
|
$8.74 | ||
|
Available to order. Add to View Price |
|||
|
#3
ARM, GEARSHIFT
24710-MB0-700
|
$54.21 | ||
|
Unavailable |
|||
|
#4
PEDAL, GEARSHIFT (NOT AVAILABLE)
24720-MB0-000
|
$89.80 | ||
|
Unavailable |
|||
|
#5
COVER, DUST
24724-422-000
|
$8.38 | ||
|
Available to order. Add to View Price |
|||
|
#6
RUBBER, GEARSHIFT PEDAL
24781-419-000
|
$7.05 | ||
|
Available to order. Add to View Price |
|||
|
#7
SWITCH ASSY., RR. STOP
35350-MB0-000
Superseded by 35350-ME9-405
|
$14.87 | ||
|
Unavailable |
|||
|
#7
SWITCH ASSY., RR. STOP
35350-ME9-405
|
$14.87 | ||
|
Unavailable |
|||
|
#7
SWITCH ASSY., RR. STOP
35350-ME9-770
Superseded by 35350-ME9-405
|
$14.87 | ||
|
Unavailable |
|||
|
#8
SPRING, STOP SWITCH
35357-KE4-730
|
$7.16 | ||
|
Available to order. Add to View Price |
|||
|
#8
SPRING, STOP SWITCH
35357-425-610
Superseded by 35357-KE4-730
|
$7.16 | ||
|
Unavailable |
|||
|
#9
ROD, RR. BRAKE
43451-MB0-000
Superseded by 43451-MB0-950
|
$13.39 | ||
|
Unavailable |
|||
|
#9
ROD, RR. BRAKE
43451-MB0-950
|
$13.39 | ||
|
Unavailable |
|||
|
#10
PIN B, JOINT (NOT AVAILABLE)
43452-KB4-000
|
$3.67 | ||
|
Unavailable |
|||
|
#11
PEDAL, RR. BRAKE (NOT AVAILABLE)
46500-MB0-000
|
$71.99 | ||
|
Unavailable |
|||
|
#12
SPINDLE, RR. BRAKE (NOT AVAILABLE)
46510-MB0-700
|
$46.44 | ||
|
Unavailable |
|||
|
#13
SPRING, BRAKE PEDAL
46514-MB0-000
|
$11.36 | ||
|
Available to order. Add to View Price |
|||
|
#14
BOLT, TIE ROD
90065-MB0-000
|
$8.81 | ||
|
Available to order. Add to View Price |
|||
|
#15
BOLT, SPECIAL FLANGE (8X28)
90103-MB0-000
|
$6.22 | ||
|
Unavailable |
|||
|
#16
NUT, GOVERNOR ARM FIXING
90201-700-000
|
$0.87 | ||
|
Available to order. Add to View Price |
|||
|
#17
NUT, HEX. (6MM)
94002-06000
Superseded by 94002-06000-0S
|
$1.37 | ||
|
Available to order. Add to View Price |
|||
|
#17
NUT, HEX. (6MM)
94002-06000-0S
|
$1.37 | ||
|
Unavailable |
|||
|
#18
NUT, HEX. (6MM)
94002-06020
Superseded by 94002-06020-0S
|
$1.25 | ||
|
Available to order. Add to View Price |
|||
|
#18
NUT, HEX. (6MM)
94002-06020-0S
|
$1.25 | ||
|
Unavailable |
|||
|
#19
PIN, COTTER (1.6X12)
94201-16120
|
$1.08 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#20
SPRING A, BRAKE ROD
95014-73100
|
$1.47 | ||
|
Available to order. Add to View Price |
|||
|
#21
JOINT, BRAKE ARM
95015-32001
|
$1.07 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#22
NUT B, BRAKE ROD ADJUSTING
95015-42000
|
$2.20 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#23
BOLT, FLANGE (6X20)
95700-06020-00
Superseded by 95701-06020-00
|
$1.85 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#23
BOLT, FLANGE (6X20)
95701-06020-00
|
$1.85 | ||
|
Unavailable |
|||
|
#24
BOLT, FLANGE (6X16)
96000-06016-00
Superseded by 96001-06016-00
|
$1.10 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#24
BOLT, FLANGE (6X16)
96001-06016-00
|
$1.10 | ||
|
Unavailable |
|||
