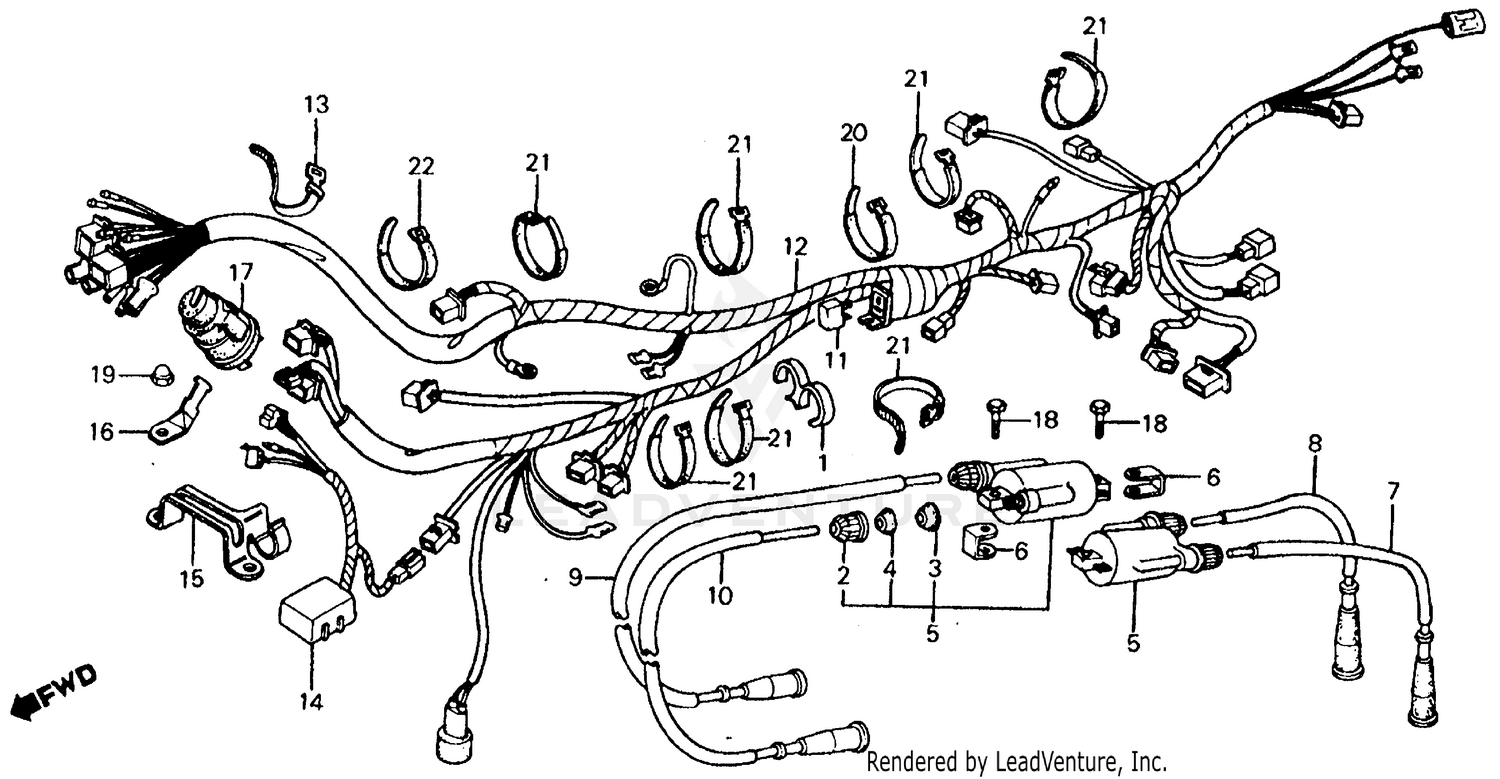

Wire Harness + Ignition Coil 82 Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CLAMP, BREATHER TUBE
17359-MB0-000
|
$3.45 | ||
|
Unavailable |
|||
|
#2
CAP, SCREW
30501-428-003
|
$5.00 | ||
|
Unavailable |
|||
|
#3
SEAL, RUBBER
30502-428-003
|
$1.71 | ||
|
Unavailable |
|||
|
#4
WASHER, CAP
30503-428-003
|
$1.68 | ||
|
Unavailable |
|||
|
#5
COIL, IGNITION
30506-MA6-003
Superseded by 30510-MA6-013
|
$204.00 | ||
|
Available to order. Add to View Price |
|||
|
#5
COIL, IGNITION
30510-MA6-003
Superseded by 30510-MA6-013
|
$204.00 | ||
|
Unavailable |
|||
|
#5
COIL, IGNITION
30510-MA6-013
|
$204.00 | ||
|
Unavailable |
|||
|
#6
SPACER, IGNITION COIL
30520-MB0-000
|
$3.45 | ||
|
Unavailable |
|||
|
#7
CAP 1, COIL WIRE (NOT AVAILABLE)
30731-MB0-153
|
$24.55 | ||
|
Unavailable |
|||
|
#8
CAP 2, COIL WIRE (NOT AVAILABLE)
30732-MB0-153
|
$23.49 | ||
|
Unavailable |
|||
|
#9
CAP 3, COIL WIRE (NOT AVAILABLE)
30733-MB0-153
|
$24.55 | ||
|
Unavailable |
|||
|
#10
CAP 4, COIL WIRE (NOT AVAILABLE)
30734-MB0-153
|
$23.49 | ||
|
Unavailable |
|||
|
#11
RECTIFIER ASSY., SILICON (SHINDENGEN)
31700-124-003
Superseded by 31700-124-008
|
$36.00 | ||
|
Available to order. Add to View Price |
|||
|
#11
RECTIFIER ASSY., SILICON (SHINDENGEN)
31700-124-008
|
$36.00 | ||
|
Unavailable |
|||
|
#12
WIRE HARNESS (NOT AVAILABLE)
32100-MB0-000
|
$264.64 | ||
|
Unavailable |
|||
|
#13
BAND B1, CABLE
32161-404-000
|
$2.67 | ||
|
Available to order. Add to View Price |
|||
|
#14
SENSOR, HEADLIGHT
35540-MB0-008
|
$89.54 | ||
|
Unavailable |
|||
|
#15
STAY, HEADLIGHT SENSOR (NOT AVAILABLE)
35541-MB0-000
|
$6.41 | ||
|
Unavailable |
|||
|
#16
STAY, HEADLIGHT SENSOR (NOT AVAILABLE)
35541-MB0-000
|
$6.41 | ||
|
Unavailable |
|||
|
#16
STAY, HEADLIGHT SENSOR (NOT AVAILABLE)
35542-MB0-000
Superseded by 35541-MB0-000
|
$6.41 | ||
|
Unavailable |
|||
|
#17
RELAY, MAIN
36130-MC7-003
|
$37.12 | ||
|
Unavailable |
|||
|
#18
BOLT, HEX. (6X25)
92000-06025-4J
Superseded by 92101-06025-4J
|
$1.02 | ||
|
Available to order. Add to View Price |
|||
|
#18
BOLT, HEX. (6X25)
92101-06025-4J
|
$1.02 | ||
|
Unavailable |
|||
|
#19
NUT, FLANGE (6MM)
94050-06000
|
$0.68 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#20
BAND B1, CABLE
32161-404-000
|
$2.67 | ||
|
Unavailable |
|||
|
#20
BAND B1, CABLE
95014-61100
Superseded by 32161-404-000
|
$2.67 | ||
|
Unavailable |
|||
|
#21
BAND A2, CABLE
95014-61200
|
$2.55 | ||
|
Available to order. Add to View Price |
|||
|
#22
BAND A3, CABLE
95014-61300
|
$2.25 | ||
|
Available to order. Add to View Price |
|||
