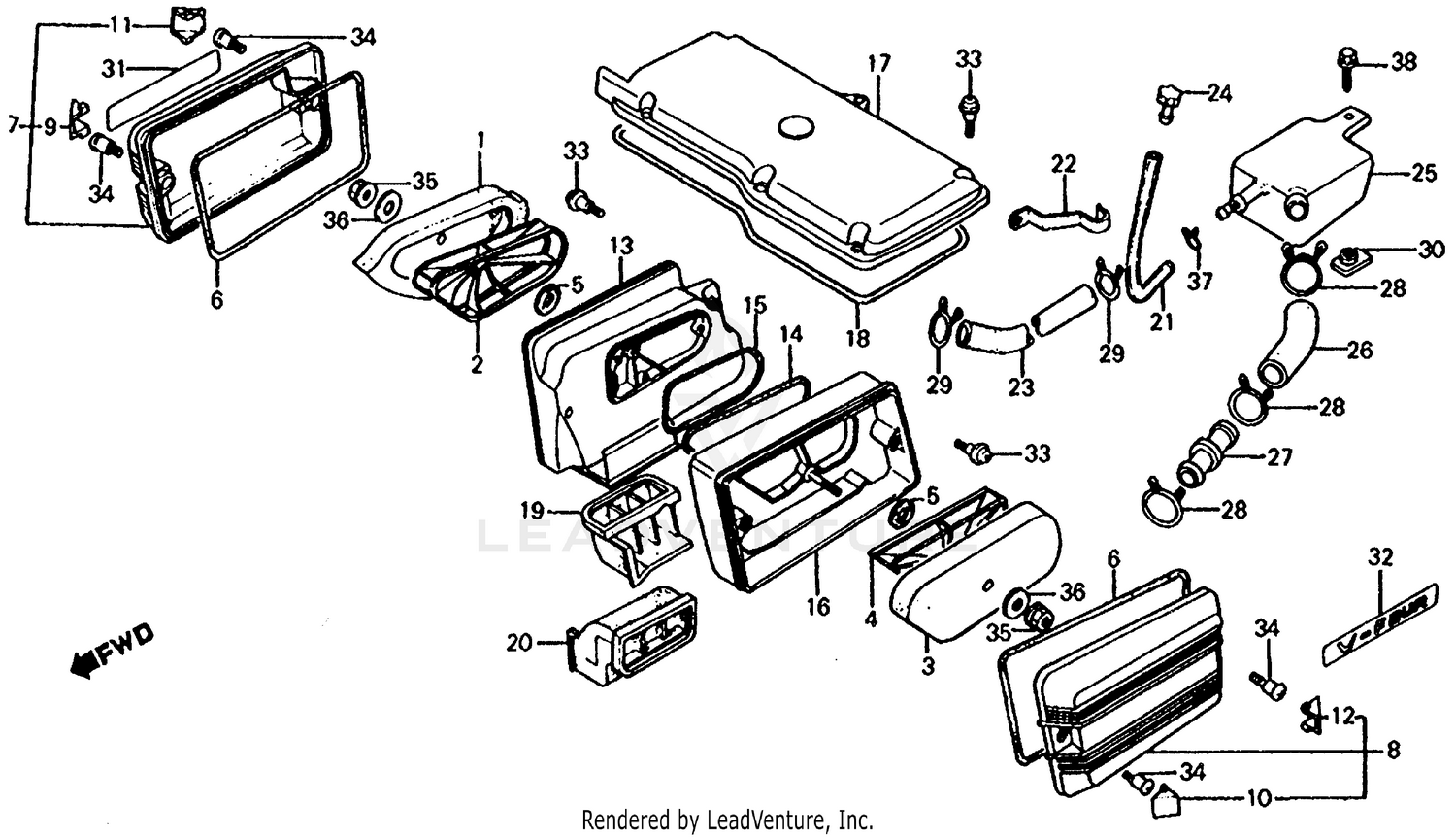

Air Cleaner 82 Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
ELEMENT, R. AIR CLEANER
17210-MB0-000
|
$22.50 | ||
|
Unavailable |
|||
|
#2
FRAME, R. AIR CLEANER ELEMENT (NOT AVAILABLE)
17214-MB0-000
|
$15.53 | ||
|
Unavailable |
|||
|
#3
ELEMENT, L. AIR CLEANER
17215-MB0-000
|
$22.50 | ||
|
Unavailable |
|||
|
#4
FRAME, L. AIR CLEANER ELEMENT (NOT AVAILABLE)
17216-MB0-000
|
$14.22 | ||
|
Unavailable |
|||
|
#5
GASKET, AIR CLEANER ELEMENT (NOT AVAILABLE)
17217-MB0-000
|
$1.24 | ||
|
Unavailable |
|||
|
#6
GASKET, AIR CLEANER COVER
17219-MB0-000
|
$6.22 | ||
|
Unavailable |
|||
|
#7
COVER, R. AIR CLEANER (NOT AVAILABLE)
17220-MB0-000
|
$55.27 | ||
|
Unavailable |
|||
|
#8
COVER, L. AIR CLEANER
17221-MB0-000
|
$60.59 | ||
|
Unavailable |
|||
|
#9
CAP A, R. (NOT AVAILABLE)
17225-MB0-000
|
$3.19 | ||
|
Unavailable |
|||
|
#10
CAP A, L. (NOT AVAILABLE)
17226-MB0-000
|
$3.30 | ||
|
Unavailable |
|||
|
#11
CAP B, R. (NOT AVAILABLE)
17227-MB0-000
|
$3.30 | ||
|
Unavailable |
|||
|
#12
CAP B, L. (NOT AVAILABLE)
17228-MB0-000
|
$2.82 | ||
|
Unavailable |
|||
|
#13
CASE, R. AIR CLEANER
17230-MB0-000
|
$81.08 | ||
|
Unavailable |
|||
|
#14
SEAL, AIR CLEANER COVER
17222-MN4-405
|
$9.18 | ||
|
Available to order. Add to View Price |
|||
|
#14
SEAL, AIR CLEANER COVER
17231-MB0-000
Superseded by 17222-MN4-405
|
$9.18 | ||
|
Unavailable |
|||
|
#14
SEAL, AIR CLEANER COVER
17251-MB0-000
Superseded by 17222-MN4-405
|
$9.18 | ||
|
Unavailable |
|||
|
#15
SEAL, AIR CLEANER COVER
17222-MN4-405
|
$9.18 | ||
|
Unavailable |
|||
|
#15
SEAL, AIR CLEANER COVER
17231-MB0-000
Superseded by 17222-MN4-405
|
$9.18 | ||
|
Unavailable |
|||
|
#15
SEAL, AIR CLEANER COVER
17232-MB0-000
Superseded by 17222-MN4-405
|
$9.18 | ||
|
Unavailable |
|||
|
#15
SEAL, AIR CLEANER COVER
17251-MB0-000
Superseded by 17222-MN4-405
|
$9.18 | ||
|
Unavailable |
|||
|
#16
CASE, L. AIR CLEANER (NOT AVAILABLE)
17235-MB0-000
|
$60.24 | ||
|
Unavailable |
|||
|
#17
COVER, AIR CLEANER BASE (NOT AVAILABLE)
17250-MB0-000
Superseded by 17250-MB0-010
|
$76.39 | ||
|
Unavailable |
|||
|
#17
COVER, AIR CLEANER BASE (NOT AVAILABLE)
17250-MB0-010
|
$76.39 | ||
|
Unavailable |
|||
|
#18
SEAL, AIR CLEANER COVER
17222-MN4-405
|
$9.18 | ||
|
Unavailable |
|||
|
#18
SEAL, AIR CLEANER COVER
17251-MB0-000
Superseded by 17222-MN4-405
|
$9.18 | ||
|
Unavailable |
|||
|
#19
DUCT, R. AIR CLEANER IN.
17254-MB0-670
|
$20.46 | ||
|
Unavailable |
|||
|
#20
DUCT, L. AIR CLEANER IN. (NOT AVAILABLE)
17255-MB0-670
|
$15.95 | ||
|
Unavailable |
|||
|
#21
TUBE, BREATHER DRAIN
17356-MB0-000
|
$18.75 | ||
|
Unavailable |
|||
|
#22
CLAMP, DRAIN TUBE
17357-MB0-000
|
$3.45 | ||
|
Unavailable |
|||
|
#23
TUBE, AIR CLEANER BREATHER
17358-MB0-000
|
$16.53 | ||
|
Unavailable |
|||
|
#24
PLUG, BREATHER TUBE
17370-419-700
|
$4.71 | ||
|
Available to order. Add to View Price |
|||
|
#25
TANK, STORAGE
17551-MB0-000
|
$16.72 | ||
|
Unavailable |
|||
|
#26
TUBE B, BREATHER
17552-MB0-000
|
$4.94 | ||
|
Unavailable |
|||
|
#27
JOINT, BREATHER
17553-MB0-000
|
$4.29 | ||
|
Unavailable |
|||
|
#28
CLIP, BREATHER TUBE
17554-MB0-000
|
$3.73 | ||
|
Available to order. Add to View Price |
|||
|
#29
CLIP, AIR HOSE (16)
18534-634-670
|
$6.05 | ||
|
Available to order. Add to View Price |
|||
|
#30
NUT, SPECIAL (6X7)
61304-958-003
|
$4.07 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#31
EMBLEM, R. AIR CLEANER COVER (NOT AVAILABLE)
87125-MB0-000
|
$5.80 | ||
|
Unavailable |
|||
|
#32
EMBLEM, L. AIR CLEANER COVER (NOT AVAILABLE)
87126-MB0-000
|
$9.40 | ||
|
Available to order. Add to View Price |
|||
|
#33
SCREW, PAN (4X15)
90141-MB0-000
|
$4.62 | ||
|
Available to order. Add to View Price |
|||
|
#34
SCREW, PAN (5X16.5)
90142-MB0-000
|
$3.09 | ||
|
Available to order. Add to View Price |
|||
|
#35
NUT, FLANGE (6MM)
94050-06000
|
$0.68 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#36
WASHER, PLAIN (5MM)
94103-05800
|
$1.03 | ||
|
Available to order. Add to View Price |
|||
|
#37
CLIP, TUBE (C12)
95002-80000
|
$0.53 | ||
|
Available to order. Add to View Price |
|||
|
#38
BOLT, FLANGE (6X10)
95700-06010-08
|
$1.68 | ||
|
Unavailable |
|||
|
#38
BOLT, FLANGE (6X10)
95701-06010-08
|
$1.68 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
