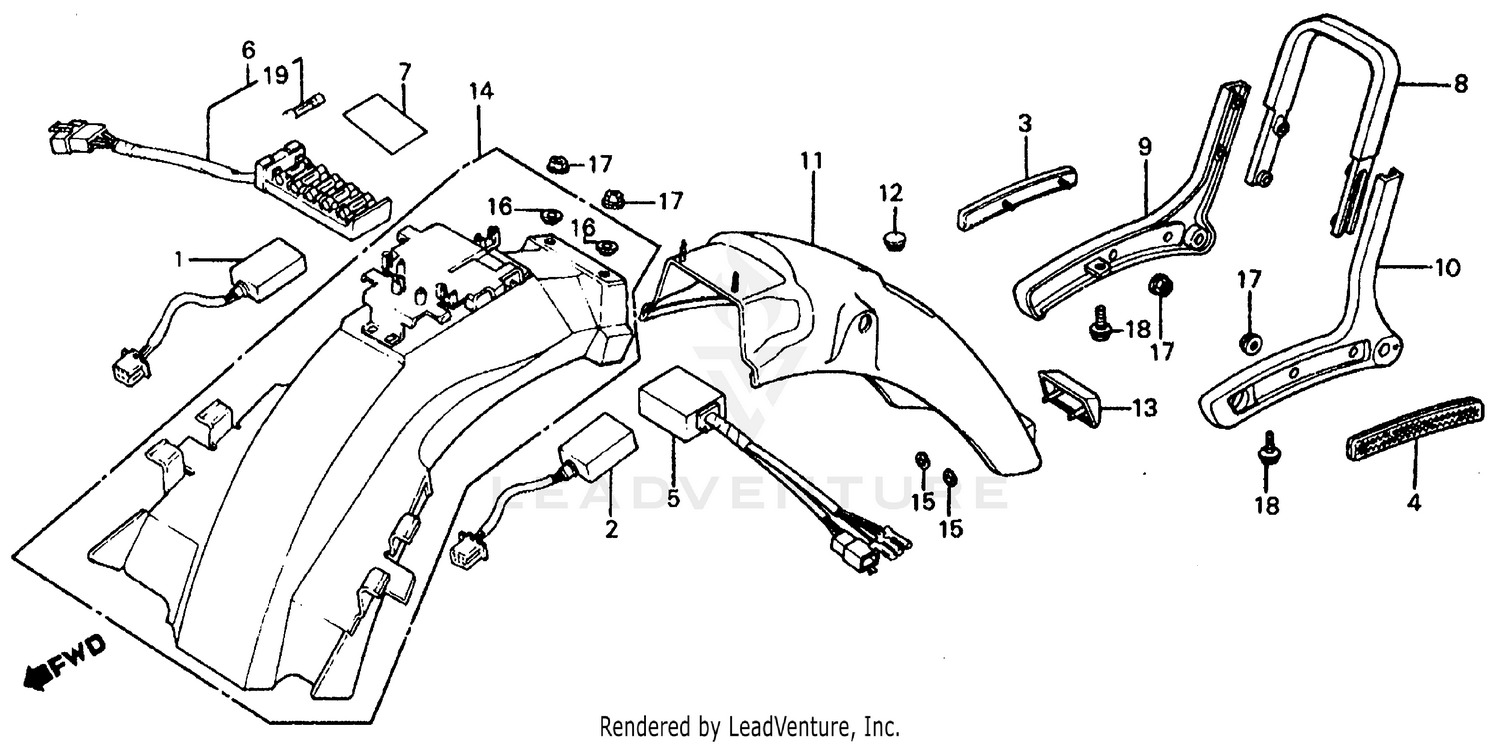

Rear Fender + Sprak Unit 84 Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
MODULE, IGNITION CONTROL (CDI) (NOT AVAILABLE)
30400-MB1-871
|
$363.92 | ||
|
Unavailable |
|||
|
#2
MODULE, IGN CONT
30410-MB1-871
Superseded by 30410-MB0-971
|
$338.62 | ||
|
Unavailable |
|||
|
#3
REFLECTOR, R. RR. REFLEX
33742-MB1-671
|
$49.39 | ||
|
Unavailable |
|||
|
#4
REFLECTOR, L. RR. REFLEX
33743-MB1-671
|
$42.08 | ||
|
Unavailable |
|||
|
#5
SENSOR, STOP & TAILLIGHT
35550-MB1-771
|
$136.12 | ||
|
Unavailable |
|||
|
#6
PLATE ASSY., FUSE
38200-MB1-005
|
$64.41 | ||
|
Unavailable |
|||
|
#7
LABEL, FUSE
38215-MB1-000
|
$4.16 | ||
|
Unavailable |
|||
|
#8
GRAB RAIL, RR.
77320-MB1-670
|
$94.69 | ||
|
Unavailable |
|||
|
#9
BRACKET, R. GRAB RAIL
77330-MB1-700
|
$172.44 | ||
|
Unavailable |
|||
|
#10
BRACKET, L. GRAB RAIL (NOT AVAILABLE)
77340-MB1-700
|
$168.37 | ||
|
Unavailable |
|||
|
#11
FENDER A, RR. (NOT AVAILABLE)
80100-MB1-000
|
$131.19 | ||
|
Unavailable |
|||
|
#12
PLUG, RR. FENDER (NOT AVAILABLE)
80101-MB1-670
|
$2.48 | ||
|
Unavailable |
|||
|
#13
EMBLEM, RR. FENDER
80102-MB1-770
|
$23.24 | ||
|
Unavailable |
|||
|
#14
FENDER B, RR.
80105-MB1-700
Superseded by 80105-MB1-930
|
$130.26 | ||
|
Unavailable |
|||
|
#14
FENDER B, RR.
80105-MB1-930
|
$130.26 | ||
|
Unavailable |
|||
|
#15
NUT, SPEED (3MM)
90313-567-000
|
$4.98 | ||
|
Available to order. Add to View Price |
|||
|
#16
WASHER (6X20)
90512-300-000
|
$3.87 | ||
|
Available to order. Add to View Price |
|||
|
#17
NUT, FLANGE (6MM)
94050-06000
|
$0.68 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#18
BOLT, FLANGE (6X12)
95700-06012-08
Superseded by 95701-06012-08
|
$1.70 | ||
|
Available to order. Add to View Price |
|||
|
#18
BOLT, FLANGE (6X12)
95701-06012-08
|
$1.70 | ||
|
Unavailable |
|||
|
#19
FUSE B (15A)
98200-21500
|
$1.12 | ||
|
Available to order. Add to View Price |
|||
