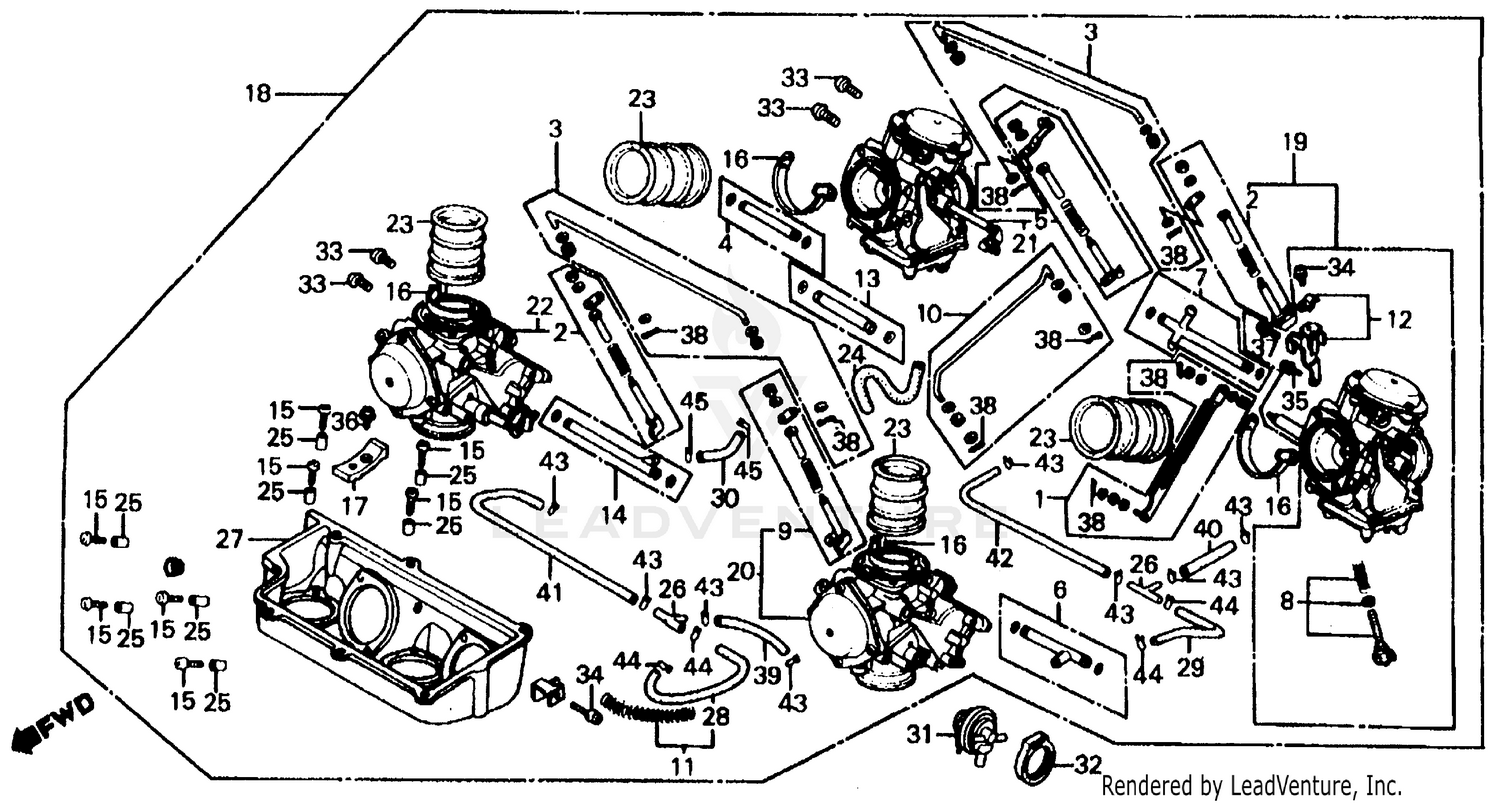

Carburetor Assy. (link) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
LEVER SET A, LINK (NOT AVAILABLE)
16017-MB0-671
|
$33.88 | ||
|
Unavailable |
|||
|
#2
LINK A SET, STARTER
16018-MB0-671
Superseded by 16018-MK3-771
|
$52.35 | ||
|
Unavailable |
|||
|
#2
LINK A SET, STARTER
16018-MK3-771
|
$52.35 | ||
|
Unavailable |
|||
|
#3
ROD SET A, STARTER LINK (NOT AVAILABLE)
16019-MB0-671
|
$13.34 | ||
|
Unavailable |
|||
|
#4
JOINT SET C, FUEL
16022-MB1-771
|
$39.33 | ||
|
Unavailable |
|||
|
#5
LINK B SET, STARTER
16025-MB0-671
Superseded by 16025-MK3-771
|
$75.10 | ||
|
Unavailable |
|||
|
#5
LINK B SET, STARTER
16025-MK3-771
|
$75.10 | ||
|
Unavailable |
|||
|
#6
JOINT SET A, FUEL
16026-MB0-671
|
$60.31 | ||
|
Available to order. Add to View Price |
|||
|
#7
JOINT SET E, FUEL
16027-MB2-004
|
$32.51 | ||
|
Unavailable |
|||
|
#8
SCREW SET
16028-KR3-671
Superseded by 16028-KR3-980
|
$53.53 | ||
|
Available to order. Add to View Price |
|||
|
#8
SCREW SET
16028-MB0-671
Superseded by 16028-KR3-980
|
$53.53 | ||
|
Unavailable |
|||
|
#9
LINK C SET, STARTER
16031-MB0-671
|
$52.55 | ||
|
Unavailable |
|||
|
#10
ROD SET B, STARTER LINK (NOT AVAILABLE)
16032-MB0-671
|
$13.34 | ||
|
Unavailable |
|||
|
#12
PLATE SET, STAY
16035-MB0-671
|
$22.69 | ||
|
Unavailable |
|||
|
#13
JOINT SET D, FUEL
16042-MB1-771
|
$39.33 | ||
|
Unavailable |
|||
|
#14
JOINT SET B, FUEL
16047-MB0-671
Superseded by 16047-MB0-771
|
$46.64 | ||
|
Unavailable |
|||
|
#14
JOINT SET B, FUEL
16047-MB0-771
|
$46.64 | ||
|
Unavailable |
|||
|
#15
SCREW, PAN
16080-MB0-671
|
$2.47 | ||
|
Available to order. Add to View Price |
|||
|
#17
PLATE, SETTING (NOT AVAILABLE)
16094-MB0-671
|
$10.73 | ||
|
Available to order. Add to View Price |
|||
|
#18
CARBURETOR ASSY. (NOT AVAILABLE)
16100-MB1-871
|
$1,512.98 | ||
|
Unavailable |
|||
|
#19
CARBURETOR ASSY. 1 (NOT AVAILABLE)
16101-MB1-871
|
$351.11 | ||
|
Unavailable |
|||
|
#20
CARBURETOR ASSY. 2
16102-MB1-871
|
$543.62 | ||
|
Unavailable |
|||
|
#21
CARBURETOR ASSY. 3
16103-MB1-871
|
$543.62 | ||
|
Unavailable |
|||
|
#22
CARBURETOR ASSY. 4
16104-MB1-871
|
$543.62 | ||
|
Unavailable |
|||
|
#23
FUNNEL, AIR
16141-MB0-672
|
$18.68 | ||
|
Unavailable |
|||
|
#25
PIN, KNOCK
16178-MB0-671
|
$6.25 | ||
|
Available to order. Add to View Price |
|||
|
#27
BASE, AIR CLEANER (NOT AVAILABLE)
16188-MB1-611
Superseded by 16188-MB0-611
|
$150.11 | ||
|
Unavailable |
|||
|
#27
BASE, AIR CLEANER (NOT AVAILABLE)
16188-MB0-611
|
$150.11 | ||
|
Unavailable |
|||
|
#30
TUBE, AIR VENT (NOT AVAILABLE)
16199-MB4-621
|
$7.08 | ||
|
Unavailable |
|||
|
#34
SCREW-WASHER (4X10)
93892-04010-00
|
$1.05 | ||
|
Available to order. Add to View Price |
|||
|
#35
SCREW-WASHER (4X12)
93892-04014-00
|
$0.60 | ||
|
Available to order. Add to View Price |
|||
|
#36
SCREW-WASHER (5X8)
93892-05008-08
|
$1.10 | ||
|
Available to order. Add to View Price |
|||
|
#37
SCREW-WASHER (5X12)
93892-05012-00
|
$0.87 | ||
|
Available to order. Add to View Price |
|||
|
#45
CLIP, TUBE (B12)
95002-02120
|
$2.03 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
