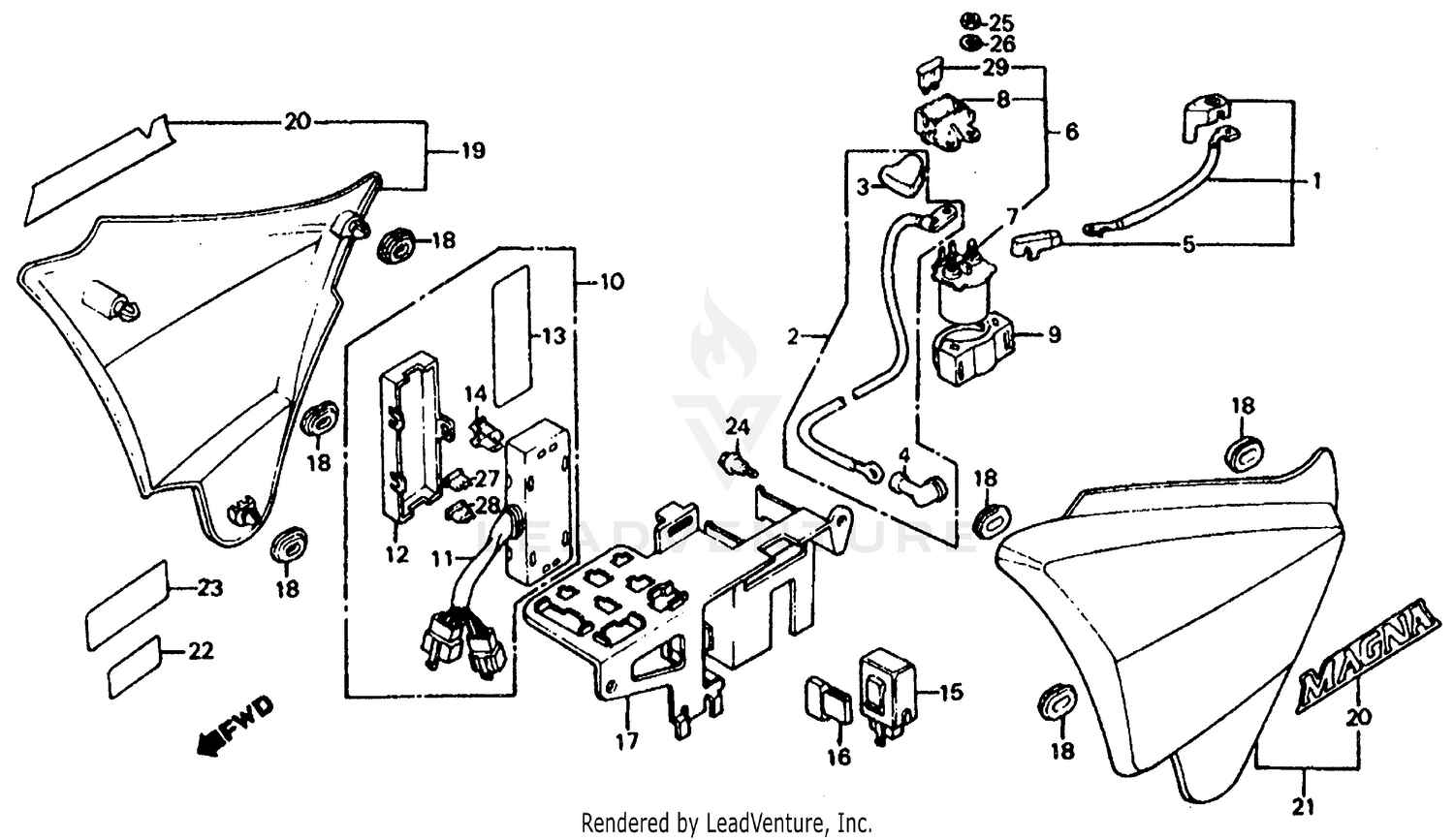

Side Cover 85-86 Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CABLE, STARTER BATTERY
32401-MK3-000
|
$16.28 | ||
|
Unavailable |
|||
|
#2
CABLE, STARTER MOTOR
32402-MK3-000
|
$39.20 | ||
|
Unavailable |
|||
|
#3
COVER, MAGNETIC SWITCH TERMINAL
32411-MB0-000
|
$5.04 | ||
|
Unavailable |
|||
|
#4
COVER, STARTER MOTOR TERMINAL
32411-230-000
|
$8.04 | ||
|
Available to order. Add to View Price |
|||
|
#4
COVER, STARTER MOTOR TERMINAL
32411-253-000
Superseded by 32411-230-000
|
$8.04 | ||
|
Unavailable |
|||
|
#5
COVER A, MAGNETIC SWITCH
32415-425-000
|
$3.95 | ||
|
Available to order. Add to View Price |
|||
|
#6
SWITCH ASSY., STARTER MAGNETIC
35850-MK3-671
|
$154.42 | ||
|
Available to order. Add to View Price |
|||
|
#7
SWITCH, STARTER MAGNETIC
35851-MF5-751
|
$128.98 | ||
|
Available to order. Add to View Price |
|||
|
#8
HOLDER ASSY., FUSE
35855-MG7-751
|
$42.56 | ||
|
Available to order. Add to View Price |
|||
|
#9
RUBBER, SHOCK ABSORBER
35856-MF5-751
|
$11.45 | ||
|
Available to order. Add to View Price |
|||
|
#10
BOX ASSY., FUSE
38200-MK3-015
Superseded by 38200-MK3-505
|
$51.78 | ||
|
Unavailable |
|||
|
#11
PLATE, FUSE
38201-MK3-005
|
$31.17 | ||
|
Unavailable |
|||
|
#12
COVER, FUSE
38202-MK3-005
Superseded by 38202-MK3-505
|
$11.05 | ||
|
Unavailable |
|||
|
#12
COVER, FUSE
38202-MK3-505
|
$11.05 | ||
|
Unavailable |
|||
|
#13
LABEL, FUSE
38215-MK3-671
Superseded by 38215-MR1-670
|
$3.38 | ||
|
Unavailable |
|||
|
#13
LABEL, FUSE
38215-MR1-670
|
$3.38 | ||
|
Unavailable |
|||
|
#14
PULLER, FUSE (DAIICHI)
38235-SA5-004
|
$5.55 | ||
|
Available to order. Add to View Price |
|||
|
#15
RELAY, TURN SIGNAL (TATEISHI)
38301-MF8-771
|
$117.71 | ||
|
Available to order. Add to View Price |
|||
|
#15
RELAY, TURN SIGNAL (MITSUBA)
38301-MF8-773
Superseded by 38301-KK9-952
|
$82.31 | ||
|
Available to order. Add to View Price |
|||
|
#15
RELAY, TURN SIGNAL (MITSUBA)
38301-MG9-681
Superseded by 38301-KK9-952
|
$82.31 | ||
|
Unavailable |
|||
|
#16
SUSPENSION, TURN SIGNAL RELAY
38306-KJ6-740
|
$8.56 | ||
|
Available to order. Add to View Price |
|||
|
#17
PLATE, ELECTRIC
50325-MK3-000
|
$18.45 | ||
|
Unavailable |
|||
|
#18
GROMMET, AIR CLEANER HOUSING
83551-300-000
|
$4.62 | ||
|
Available to order. Add to View Price |
|||
|
#19
COVER SET, R. SIDE *R130CU* (CANDY SCORPIO RED) (NOT AVAILABLE)
836A0-MK3-000ZB
|
$94.06 | ||
|
Unavailable |
|||
|
#19
COVER SET, R. SIDE *NH1Z* (BLACK-Z) (NOT AVAILABLE)
836A0-MK3-000ZA
|
$105.23 | ||
|
Unavailable |
|||
|
#20
LABEL, SIDE COVER
83605-MK3-300
|
$11.14 | ||
|
Unavailable |
|||
|
#21
COVER SET, L. SIDE *R130CU* (CANDY SCORPIO RED) (NOT AVAILABLE)
837A0-MK3-000ZB
|
$100.44 | ||
|
Unavailable |
|||
|
#21
COVER SET, L. SIDE *NH1Z* (BLACK-Z) (NOT AVAILABLE)
837A0-MK3-000ZA
|
$102.97 | ||
|
Unavailable |
|||
|
#22
LABEL, RESERVE TANK (NOT AVAILABLE)
87507-371-671
|
$2.54 | ||
|
Unavailable |
|||
|
#23
MARK, RADIATOR CAUTION (NOT AVAILABLE)
87508-415-670
|
$3.86 | ||
|
Unavailable |
|||
|
#24
BOLT, FLANGE (6MM)
90111-187-000
|
$7.02 | ||
|
Available to order. Add to View Price |
|||
|
#25
NUT, HEX. (6MM)
94002-06080-0S
|
$1.37 | ||
|
Unavailable |
|||
|
#25
NUT, HEX. (6MM)
94002-06080-00
Superseded by 94002-06080-0S
|
$1.37 | ||
|
Unavailable |
|||
|
#26
WASHER, SPRING (6MM)
94111-06800
|
$1.18 | ||
|
Unavailable |
|||
|
#27
FUSE, BLADE (10A)
98200-31000
|
$1.37 | ||
|
Unavailable |
|||
|
#28
FUSE, BLADE (15A)
98200-31500
|
$1.37 | ||
|
Available to order. Add to View Price |
|||
|
#29
FUSE, BLADE (30A)
98200-33000
|
$1.37 | ||
|
Available to order. Add to View Price |
|||
