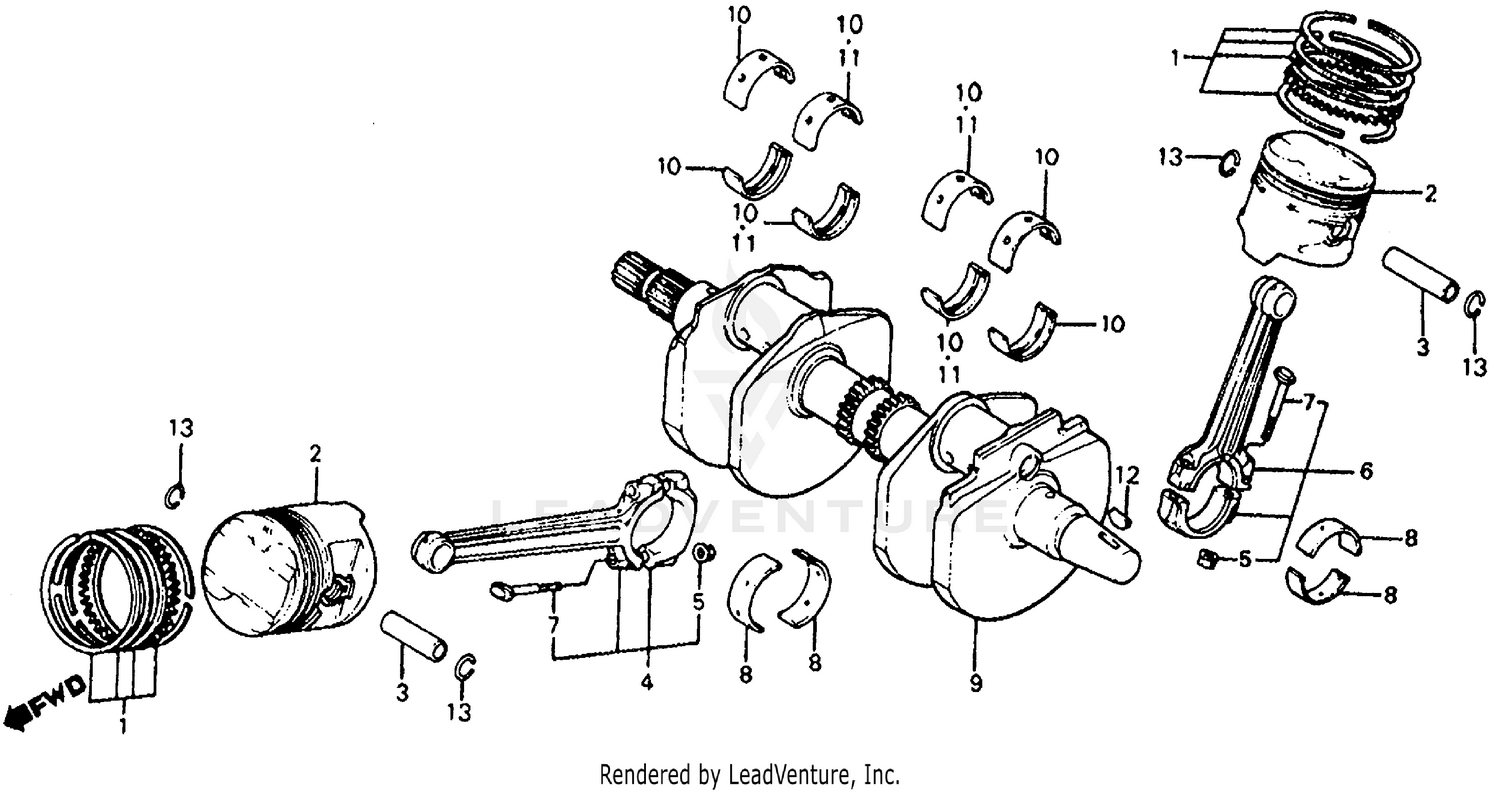

Crankshaft + Piston Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
RING SET, PISTON (STD) (NIPPON)
130A1-MB0-771
Superseded by 13011-MN0-305
|
$39.70 | ||
|
Unavailable |
|||
|
#1
RING SET, PISTON (STD) (NIPPON)
13011-MB0-014
Superseded by 13011-MN0-305
|
$39.70 | ||
|
Unavailable |
|||
|
#1
RING SET, PISTON (STD) (NIPPON)
13011-MN0-305
|
$39.70 | ||
|
Unavailable |
|||
|
#2
PISTON (STD)
13101-MB1-870
Superseded by 13101-MN0-000
|
$51.65 | ||
|
Unavailable |
|||
|
#2
PISTON (STD)
13101-MN0-000
|
$51.65 | ||
|
Unavailable |
|||
|
#3
PIN, PISTON
13111-MB0-000
Superseded by 13111-MT3-000
|
$13.40 | ||
|
Available to order. Add to View Price |
|||
|
#3
PIN, PISTON
13111-MT3-000
|
$13.40 | ||
|
Unavailable |
|||
|
#4
ROD ASSY. E, FR. CONNECTING
13201-MB1-870
Superseded by 13203-MB1-405
|
$161.85 | ||
|
Unavailable |
|||
|
#4
ROD ASSY. E, FR. CONNECTING
13202-MB1-870
Superseded by 13203-MB1-405
|
$161.85 | ||
|
Unavailable |
|||
|
#4
ROD ASSY. E, FR. CONNECTING
13203-MB1-405
|
$161.85 | ||
|
Unavailable |
|||
|
#4
ROD ASSY. E, FR. CONNECTING
13203-MB1-870
Superseded by 13203-MB1-405
|
$161.85 | ||
|
Unavailable |
|||
|
#4
ROD ASSY. E, FR. CONNECTING
13204-MB1-870
Superseded by 13203-MB1-405
|
$161.85 | ||
|
Unavailable |
|||
|
#4
ROD ASSY. E, FR. CONNECTING
13205-MB1-870
Superseded by 13203-MB1-405
|
$161.85 | ||
|
Unavailable |
|||
|
#5
NUT, CONNECTING ROD
13205-634-010
|
$6.62 | ||
|
Available to order. Add to View Price |
|||
|
#6
CONNROD ASSY
13206-MB1-870
Superseded by 13208-MB1-405
|
$247.63 | ||
|
Available to order. Add to View Price |
|||
|
#6
CONNROD ASSY
13207-MB1-870
Superseded by 13208-MB1-405
|
$247.63 | ||
|
Unavailable |
|||
|
#6
CONNROD ASSY
13208-MB1-870
Superseded by 13208-MB1-405
|
$247.63 | ||
|
Unavailable |
|||
|
#6
ROD ASSY. D, RR. CONNECTING
13209-MB1-870
|
$242.30 | ||
|
Available to order. Add to View Price |
|||
|
#6
ROD ASSY. D, RR. CONNECTING
13210-MB1-870
Superseded by 13209-MB1-870
|
$242.30 | ||
|
Unavailable |
|||
|
#7
BOLT, CONNECTING ROD (TOKAI TRW)
13204-689-004
|
$8.68 | ||
|
Unavailable |
|||
|
#7
BOLT, CONNECTING ROD (TOKAI TRW)
13213-422-004
Superseded by 13204-689-004
|
$8.68 | ||
|
Unavailable |
|||
|
#8
BEARING A, CONNECTING ROD (BLUE)
13224-MB0-003
Superseded by 13224-MB0-892
|
$10.89 | ||
|
Unavailable |
|||
|
#8
BEARING A, CONNECTING ROD (BLUE)
13224-MB0-305
Superseded by 13224-MB0-892
|
$10.89 | ||
|
Unavailable |
|||
|
#8
BEARING A, CONNECTING ROD (BLUE)
13224-MB0-891
Superseded by 13224-MB0-892
|
$10.89 | ||
|
Unavailable |
|||
|
#8
BEARING A, CONNECTING ROD (BLUE)
13224-MB0-892
|
$10.89 | ||
|
Unavailable |
|||
|
#8
BEARING B, CONNECTING ROD (BLACK)
13225-MB0-003
Superseded by 13225-MB0-892
|
$12.20 | ||
|
Unavailable |
|||
|
#8
BEARING B, CONNECTING ROD (BLACK)
13225-MB0-891
Superseded by 13225-MB0-892
|
$12.20 | ||
|
Unavailable |
|||
|
#8
BEARING B, CONNECTING ROD (BLACK)
13225-MB0-892
|
$12.20 | ||
|
Unavailable |
|||
|
#8
BEARING C, CONNECTING ROD (BROWN)
13226-MB0-003
Superseded by 13226-MB0-892
|
$11.11 | ||
|
Available to order. Add to View Price |
|||
|
#8
BEARING C, CONNECTING ROD (BROWN)
13226-MB0-891
Superseded by 13226-MB0-892
|
$11.11 | ||
|
Unavailable |
|||
|
#8
BEARING C, CONNECTING ROD (BROWN)
13226-MB0-892
|
$11.11 | ||
|
Unavailable |
|||
|
#8
BEARING D, CONNECTING ROD (GREEN)
13227-MB0-003
Superseded by 13227-MB0-892
|
$10.89 | ||
|
Unavailable |
|||
|
#8
BEARING D, CONNECTING ROD (GREEN)
13227-MB0-891
Superseded by 13227-MB0-892
|
$10.89 | ||
|
Unavailable |
|||
|
#8
BEARING D, CONNECTING ROD (GREEN)
13227-MB0-892
|
$10.89 | ||
|
Unavailable |
|||
|
#8
BEARING E, CONNECTING ROD (YELLOW)
13228-MB0-003
Superseded by 13228-MB0-892
|
$9.61 | ||
|
Unavailable |
|||
|
#8
BEARING E, CONNECTING ROD (YELLOW)
13228-MB0-891
Superseded by 13228-MB0-892
|
$9.61 | ||
|
Unavailable |
|||
|
#8
BEARING E, CONNECTING ROD (YELLOW)
13228-MB0-892
|
$9.61 | ||
|
Unavailable |
|||
|
#9
CRANKSHAFT
13300-MB1-871
|
$896.71 | ||
|
Unavailable |
|||
|
#10
BEARING A, CRANKSHAFT (BLUE)
13314-MB0-013
|
$10.54 | ||
|
Unavailable |
|||
|
#10
BEARING B, CRANKSHAFT (BLACK)
13315-MB0-013
|
$11.22 | ||
|
Unavailable |
|||
|
#10
BEARING C, CRANKSHAFT (BROWN)
13316-MB0-013
|
$13.72 | ||
|
Unavailable |
|||
|
#10
BEARING D, CRANKSHAFT (GREEN)
13317-MB0-013
|
$13.53 | ||
|
Available to order. Add to View Price |
|||
|
#10
BEARING E, CRANKSHAFT (YELLOW)
13318-MB0-013
|
$9.48 | ||
|
Unavailable |
|||
|
#11
BEARING A, CRANKSHAFT (BLUE) (NOT AVAILABLE)
13324-MB0-890
Superseded by 13324-MB0-891
|
$9.93 | ||
|
Unavailable |
|||
|
#11
BEARING B, CRANKSHAFT (BLACK) (NOT AVAILABLE)
13325-MB0-890
Superseded by 13325-MB0-891
|
$9.93 | ||
|
Unavailable |
|||
|
#11
BEARING C, CRANKSHAFT (BROWN) (NOT AVAILABLE)
13326-MB0-890
Superseded by 13326-MB0-891
|
$9.73 | ||
|
Unavailable |
|||
|
#11
BEARING D, CRANKSHAFT (GREEN)
13327-MB0-890
Superseded by 13327-MB0-891
|
$9.73 | ||
|
Unavailable |
|||
|
#11
BEARING D, CRANKSHAFT (GREEN)
13327-MB0-891
|
$9.73 | ||
|
Unavailable |
|||
|
#11
BEARING E, CRANKSHAFT (YELLOW) (NOT AVAILABLE)
13328-MB0-890
Superseded by 13328-MB0-891
|
$9.48 | ||
|
Unavailable |
|||
|
#12
KEY, WOODRUFF
90741-413-000
|
$2.93 | ||
|
Available to order. Add to View Price |
|||
|
#13
CLIP, PISTON PIN (18MM)
94601-18000
|
$1.16 | ||
|
Available to order. Add to View Price |
|||
