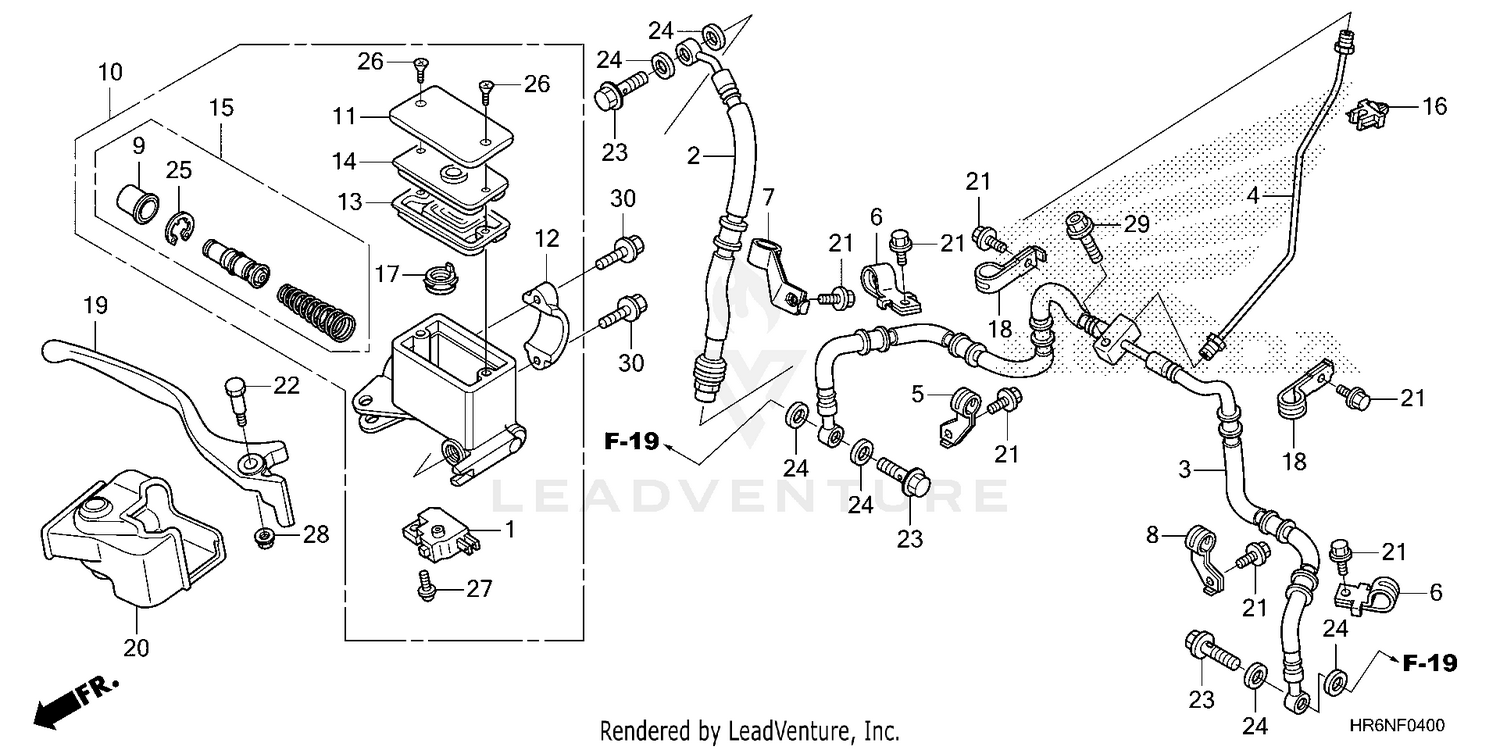

Front Brake Master Cylinder Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
SWITCH ASSY., FR. STOP
35340-MGS-D31
|
$22.42 | ||
|
Available to order. Add to View Price |
|||
|
#2
HOSE, FR. BRAKE (A)
45126-HR6-A61
|
$52.22 | ||
|
Available to order. Add to View Price |
|||
|
#3
HOSE, FR. BRAKE (B)
45127-HR6-A61
|
$88.56 | ||
|
Available to order. Add to View Price |
|||
|
#4
PIPE, FR. BRAKE
45128-HR3-A20
|
$5.44 | ||
|
Available to order. Add to View Price |
|||
|
#5
CLAMP A, R. FR. BRAKE HOSE
45461-HR3-A20
|
$69.65 | ||
|
Available to order. Add to View Price |
|||
|
#6
CLAMP B, FR. BRAKE HOSE
45462-HR0-F00
|
$26.00 | ||
|
Available to order. Add to View Price |
|||
|
#7
CLAMP, FR. BRAKE HOSE
45464-HR3-A20
|
$14.16 | ||
|
Available to order. Add to View Price |
|||
|
#8
CLAMP A, L. FR. BRAKE HOSE
45471-HR3-A20
|
$2.22 | ||
|
Available to order. Add to View Price |
|||
|
#9
BOOT
45504-410-003
|
$14.75 | ||
|
Available to order. Add to View Price |
|||
|
#10
MASTER CYLINDER SUB-ASSY., FR. BRAKE (COO) (NISSIN)
45510-HR3-A21
Superseded by 45510-HR3-305
|
$79.87 | ||
|
Available to order. Add to View Price |
|||
|
#10
MASTER CYLINDER SUB-ASSY., FR. BRAKE (COO) (NISSIN)
45510-HR3-305
|
$79.87 | ||
|
Unavailable |
|||
|
#11
CAP, MASTER CYLINDER (COO)
45513-HR0-305
|
$5.22 | ||
|
Available to order. Add to View Price |
|||
|
#11
CAP, MASTER CYLINDER (COO)
45513-KK1-771
Superseded by 45513-HR0-305
|
$5.22 | ||
|
Unavailable |
|||
|
#12
HOLDER, MASTER CYLINDER
45517-166-006
|
$16.42 | ||
|
Available to order. Add to View Price |
|||
|
#13
DIAPHRAGM
45520-MG7-006
|
$12.84 | ||
|
Available to order. Add to View Price |
|||
|
#14
PLATE, DIAPHRAGM
45521-HA2-006
|
$13.15 | ||
|
Available to order. Add to View Price |
|||
|
#15
PISTON SET, FR. MASTER CYLINDER
45530-MCA-006
|
$21.98 | ||
|
Available to order. Add to View Price |
|||
|
#16
CLIP A
46394-S04-003
|
$1.35 | ||
|
Available to order. Add to View Price |
|||
|
#17
SEPARATOR
46666-HB9-006
|
$11.36 | ||
|
Available to order. Add to View Price |
|||
|
#18
CLAMP A, FR. BRAKE HOSE
51207-HN2-000
|
$1.65 | ||
|
Available to order. Add to View Price |
|||
|
#19
LEVER, R. HANDLE (COO)
53175-HR3-A21
Superseded by 53175-HR3-305
|
$17.87 | ||
|
Available to order. Add to View Price |
|||
|
#19
LEVER, R. HANDLE (COO)
53175-HR3-305
|
$17.87 | ||
|
Unavailable |
|||
|
#20
COVER, R. HANDLE LEVER (COO)
53176-HR3-A21
Superseded by 53176-HR3-305
|
$4.11 | ||
|
Available to order. Add to View Price |
|||
|
#20
COVER, R. HANDLE LEVER (COO)
53176-HR3-305
|
$4.11 | ||
|
Unavailable |
|||
|
#21
BOLT, FLANGE (6X12)
90103-MCS-G00
|
$1.47 | ||
|
Available to order. Add to View Price |
|||
|
#22
BOLT, HANDLE LEVER PIVOT
90114-KGH-900
|
$1.11 | ||
|
Available to order. Add to View Price |
|||
|
#23
BOLT, OIL (10X22) (SAGA)
90145-MS9-612
|
$9.20 | ||
|
Available to order. Add to View Price |
|||
|
#24
WASHER, OIL BOLT
90545-300-000
|
$5.02 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#25
CIRCLIP
90651-MA5-671
|
$3.35 | ||
|
Available to order. Add to View Price |
|||
|
#26
SCREW, FLAT (4X12)
93600-04012-0G
|
$0.95 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#26
SCREW, FLAT (4X12)
93600-04012-1G
Superseded by 93600-04012-0G
|
$0.95 | ||
|
Unavailable |
|||
|
#27
SCREW-WASHER (4X12)
93893-04012-07
|
$1.40 | ||
|
Available to order. Add to View Price |
|||
|
#27
SCREW-WASHER (4X12)
93893-04012-17
Superseded by 93893-04012-07
|
$1.40 | ||
|
Unavailable |
|||
|
#28
NUT, FLANGE (6MM)
94050-06000
|
$0.68 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#29
BOLT, FLANGE (6X25)
95701-06025-07
|
$1.88 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#30
BOLT, FLANGE (6X22)
96001-06022-07
|
$2.11 | ||
|
Available to order. Add to View Price |
|||
