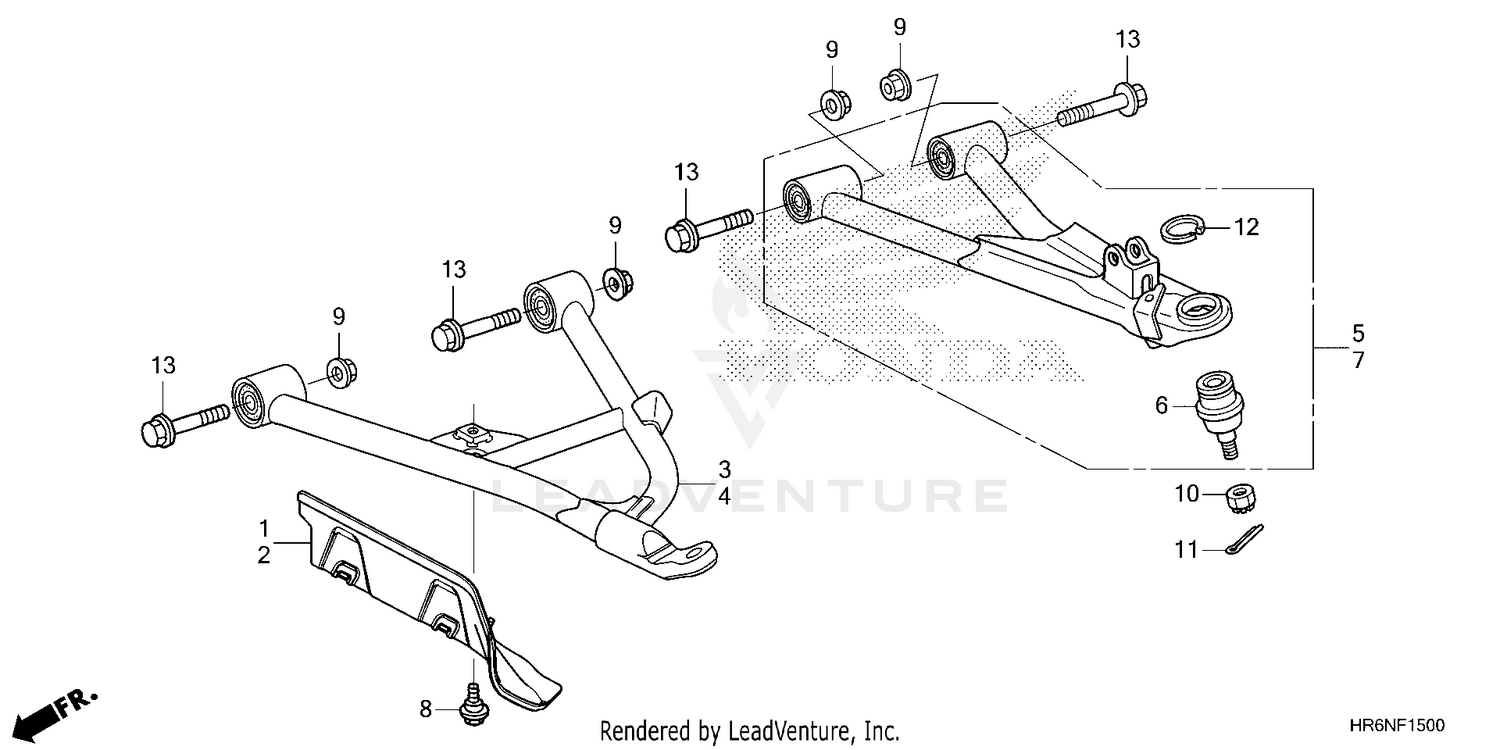

Front Arm Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
GUARD, R. FR. INBOARD
51315-HR6-B00
|
$13.11 | ||
|
Available to order. Add to View Price |
|||
|
#2
GUARD, L. FR. INBOARD
51316-HR6-B00
|
$13.11 | ||
|
Available to order. Add to View Price |
|||
|
#3
ARM, R. FR. (TYPE1)
51350-HR6-MF0ZA
|
$95.64 | ||
|
Unavailable |
|||
|
#4
ARM, L. FR. (TYPE1)
51360-HR6-MF0ZA
|
$96.00 | ||
|
Unavailable |
|||
|
#5
ARM, R. FR. (TYPE1)
51370-HR6-MF0ZC
|
$110.87 | ||
|
Unavailable |
|||
|
#6
JOINT A, ARM BALL
51375-HP5-601
|
$24.15 | ||
|
Available to order. Add to View Price |
|||
|
#7
ARM, L. FR. (TYPE1)
51380-HR6-MF0ZC
|
$112.69 | ||
|
Unavailable |
|||
|
#8
BOLT, FLANGE (6MM)
90111-KT1-780
|
$17.62 | ||
|
Available to order. Add to View Price |
|||
|
#9
NUT, SELF-LOCK (10MM)
90305-HC0-770
|
$3.76 | ||
|
Available to order. Add to View Price |
|||
|
#10
NUT, CASTLE (12MM)
90310-HB9-000
|
$7.60 | ||
|
Available to order. Add to View Price |
|||
|
#11
PIN, SPLIT (3.0X18)
94201-30180
|
$1.08 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#12
CIRCLIP (OUTER) (34MM)
94514-34000
|
$1.93 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#13
BOLT, FLANGE (10X62)
95801-10065-00
Superseded by 90151-HC5-000
|
$9.74 | ||
|
Available to order. Add to View Price |
|||
