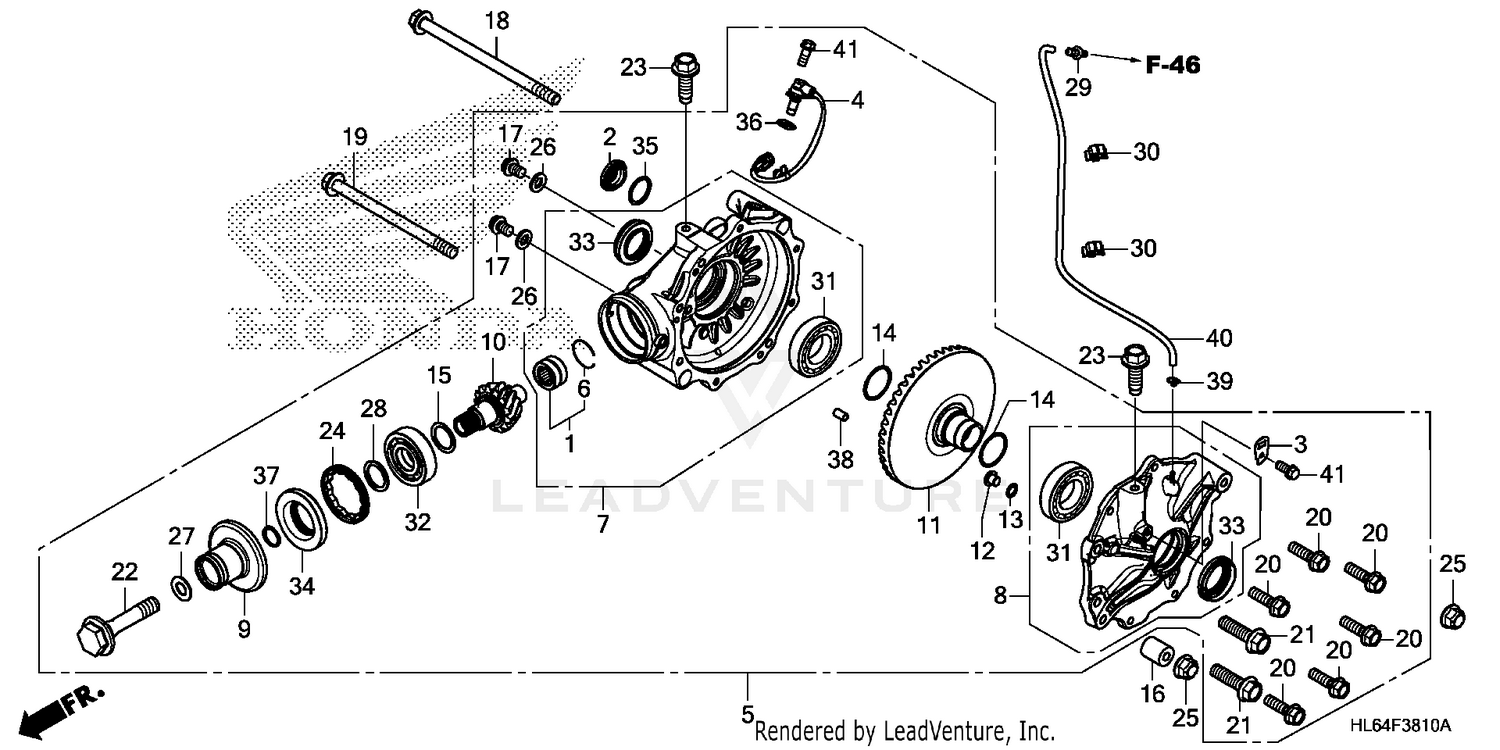

Rear Final Gear Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
BEARING SET, NEEDLE
06911-HL4-A00
|
$29.22 | ||
|
Available to order. Add to View Price |
|||
|
#2
CAP, VALVE ADJ.
12361-035-000
Superseded by 12361-300-000
|
$12.40 | ||
|
Available to order. Add to View Price |
|||
|
#2
CAP, VALVE ADJ.
12361-300-000
|
$12.40 | ||
|
Unavailable |
|||
|
#2
CAP, VALVE ADJ.
12361-371-980
Superseded by 12361-300-000
|
$12.40 | ||
|
Unavailable |
|||
|
#3
STAY, HARNESS CLIP
30535-HL6-A00
|
$5.64 | ||
|
Available to order. Add to View Price |
|||
|
#4
SENSOR, RR. WHEEL SPEED
38510-HL6-A01
|
$141.53 | ||
|
Available to order. Add to View Price |
|||
|
#5
GEAR ASSY., RR. FINAL
41300-HL6-A01
|
$883.28 | ||
|
Available to order. Add to View Price |
|||
|
#6
RING, STOPPER
41305-HL4-A00
|
$1.76 | ||
|
Available to order. Add to View Price |
|||
|
#7
CASE SUB-ASSY., RR. FINAL GEAR
41311-HL6-A01
|
$179.00 | ||
|
Available to order. Add to View Price |
|||
|
#8
COVER SUB-ASSY., RR. FINAL GEAR
41312-HL6-A01
|
$125.45 | ||
|
Available to order. Add to View Price |
|||
|
#9
JOINT, RR. PINION
41330-HL6-A01
|
$43.40 | ||
|
Available to order. Add to View Price |
|||
|
#10
GEAR, RR. PINION (13T)
41421-HL6-A01
|
$153.65 | ||
|
Available to order. Add to View Price |
|||
|
#11
GEAR, RR. RING (46T)
41430-HL6-A01
|
$778.07 | ||
|
Available to order. Add to View Price |
|||
|
#12
PIN, RING GEAR STOPPER
41436-MB0-310
|
$36.45 | ||
|
Available to order. Add to View Price |
|||
|
#13
SHIM A, STOPPER PIN (0.10)
41437-MB0-310
|
$6.45 | ||
|
Available to order. Add to View Price |
|||
|
#13
SHIM B, STOPPER PIN (0.15)
41438-MB0-310
|
$6.45 | ||
|
Available to order. Add to View Price |
|||
|
#14
SHIM A, FINAL GEAR (0.64)
41447-HL4-A00
|
$3.02 | ||
|
Available to order. Add to View Price |
|||
|
#14
SHIM B, FINAL GEAR (0.70)
41448-HL4-A00
|
$3.02 | ||
|
Available to order. Add to View Price |
|||
|
#14
SHIM C, FINAL GEAR (0.76)
41449-HL4-A00
|
$3.02 | ||
|
Available to order. Add to View Price |
|||
|
#14
SHIM D, FINAL GEAR (0.82)
41450-HL4-A00
|
$3.02 | ||
|
Available to order. Add to View Price |
|||
|
#14
SHIM E, FINAL GEAR (0.88)
41451-HL4-A00
|
$3.02 | ||
|
Available to order. Add to View Price |
|||
|
#14
SHIM F, FINAL GEAR (0.94)
41452-HL4-A00
|
$3.02 | ||
|
Available to order. Add to View Price |
|||
|
#14
SHIM G, FINAL GEAR (1.00)
41453-HL4-A00
|
$3.02 | ||
|
Available to order. Add to View Price |
|||
|
#14
SHIM H, FINAL GEAR (1.06)
41454-HL4-A00
|
$3.02 | ||
|
Available to order. Add to View Price |
|||
|
#14
SHIM I, FINAL GEAR (1.12)
41455-HL4-A00
|
$3.02 | ||
|
Available to order. Add to View Price |
|||
|
#14
SHIM J, FINAL GEAR (1.18)
41456-HL4-A00
|
$3.02 | ||
|
Available to order. Add to View Price |
|||
|
#14
SHIM K, FINAL GEAR (1.24)
41457-HL4-A00
|
$3.02 | ||
|
Available to order. Add to View Price |
|||
|
#14
SHIM L, FINAL GEAR (1.30)
41458-HL4-A00
|
$3.02 | ||
|
Available to order. Add to View Price |
|||
|
#14
SHIM M, FINAL GEAR (1.36)
41459-HL4-A00
|
$3.02 | ||
|
Available to order. Add to View Price |
|||
|
#14
SHIM N, FINAL GEAR (1.42)
41460-HL4-A00
|
$3.02 | ||
|
Available to order. Add to View Price |
|||
|
#14
SHIM O, FINAL GEAR (1.48)
41461-HL4-A00
|
$3.02 | ||
|
Available to order. Add to View Price |
|||
|
#14
SHIM P, FINAL GEAR (1.54)
41462-HL4-A00
|
$3.02 | ||
|
Available to order. Add to View Price |
|||
|
#14
SHIM Q, FINAL GEAR (1.60)
41463-HL4-A00
|
$3.02 | ||
|
Available to order. Add to View Price |
|||
|
#15
SHIM A, PINION GEAR (1.32)
41450-MEC-000
|
$6.25 | ||
|
Available to order. Add to View Price |
|||
|
#15
SHIM B, PINION GEAR (1.38)
41451-MEC-000
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
SHIM C, PINION GEAR (1.44)
41452-MEC-000
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
SHIM D, PINION GEAR (1.50)
41453-MEC-000
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
SHIM E, PINION GEAR (1.56)
41454-MEC-000
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
SHIM F, PINION GEAR (1.62)
41455-MEC-000
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
SHIM G, PINION GEAR (1.68)
41456-MEC-000
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
SPACER, RR. FINAL
41531-HL6-A00
|
$6.05 | ||
|
Available to order. Add to View Price |
|||
|
#17
BOLT, SEALING (8MM)
90109-371-000
|
$3.09 | ||
|
Available to order. Add to View Price |
|||
|
#18
BOLT, FLANGE (10X161)
90119-HL6-A00
|
$4.27 | ||
|
Available to order. Add to View Price |
|||
|
#19
BOLT, FLANGE (10X142)
90120-HL6-A00
|
$4.18 | ||
|
Available to order. Add to View Price |
|||
|
#20
BOLT, FLANGE (8X27)
90133-HP5-600
|
$3.05 | ||
|
Available to order. Add to View Price |
|||
|
#21
BOLT, FLANGE (10X35)
90134-HP5-600
|
$4.40 | ||
|
Available to order. Add to View Price |
|||
|
#22
BOLT, PINION JOINT
90138-MFR-670
|
$21.33 | ||
|
Available to order. Add to View Price |
|||
|
#23
BOLT, FLANGE (10X30)
90161-T2F-A01
|
$1.32 | ||
|
Available to order. Add to View Price |
|||
|
#24
NUT, LOCK (75MM)
90242-MCH-000
|
$27.71 | ||
|
Available to order. Add to View Price |
|||
|
#25
NUT, SELF-LOCK (10MM)
90305-HC0-770
|
$3.76 | ||
|
Available to order. Add to View Price |
|||
|
#26
WASHER (8MM)
90471-580-000
|
$3.40 | ||
|
Available to order. Add to View Price |
|||
|
#27
WASHER (16.2X32X2.0)
90501-HL6-A00
|
$3.91 | ||
|
Available to order. Add to View Price |
|||
|
#28
WASHER (31X40X2.6)
90512-HL6-A00
|
$8.69 | ||
|
Available to order. Add to View Price |
|||
|
#29
JOINT, BREATHER TUBE
90652-HF7-003
|
$11.53 | ||
|
Available to order. Add to View Price |
|||
|
#30
CLIP, CABLE
90682-MGS-D41
|
$3.82 | ||
|
Available to order. Add to View Price |
|||
|
#31
BEARING, BALL (40X75X16)
91003-RY0-003
|
$39.60 | ||
|
Available to order. Add to View Price |
|||
|
#32
BEARING, RADIAL BALL (30X72X19)
91055-HL6-A01
|
$71.09 | ||
|
Available to order. Add to View Price |
|||
|
#33
OIL SEAL (37.1X57X7)
91258-HL6-A01
|
$8.42 | ||
|
Available to order. Add to View Price |
|||
|
#34
OIL SEAL (40.5X79X10)
91259-HL6-A02
|
$13.65 | ||
|
Available to order. Add to View Price |
|||
|
#35
O-RING (30.8MM) (Honda Code 0001065)
91302-001-020
|
$4.70 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#36
O-RING (1.5X9.5)
91306-MG3-000
|
$2.43 | ||
|
Available to order. Add to View Price |
|||
|
#37
O-RING (24X3)
91312-KM9-003
|
$4.60 | ||
|
Available to order. Add to View Price |
|||
|
#38
PIN A, DOWEL (6X10) (YAMADA)
94301-06100
|
$2.35 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#39
CLIP, TUBE (B6.5)
95002-02650
|
$1.55 | ||
|
Available to order. Add to View Price |
|||
|
#40
BULK HOSE, VACUUM (3.5X8000) (3.5X1000)
95005-35008-10M
|
$128.23 | ||
|
Available to order. Add to View Price |
|||
|
#41
BOLT, FLANGE (6X14)
96001-06014-00
|
$1.88 | ||
|
Available to order. Add to View Price |
|||
