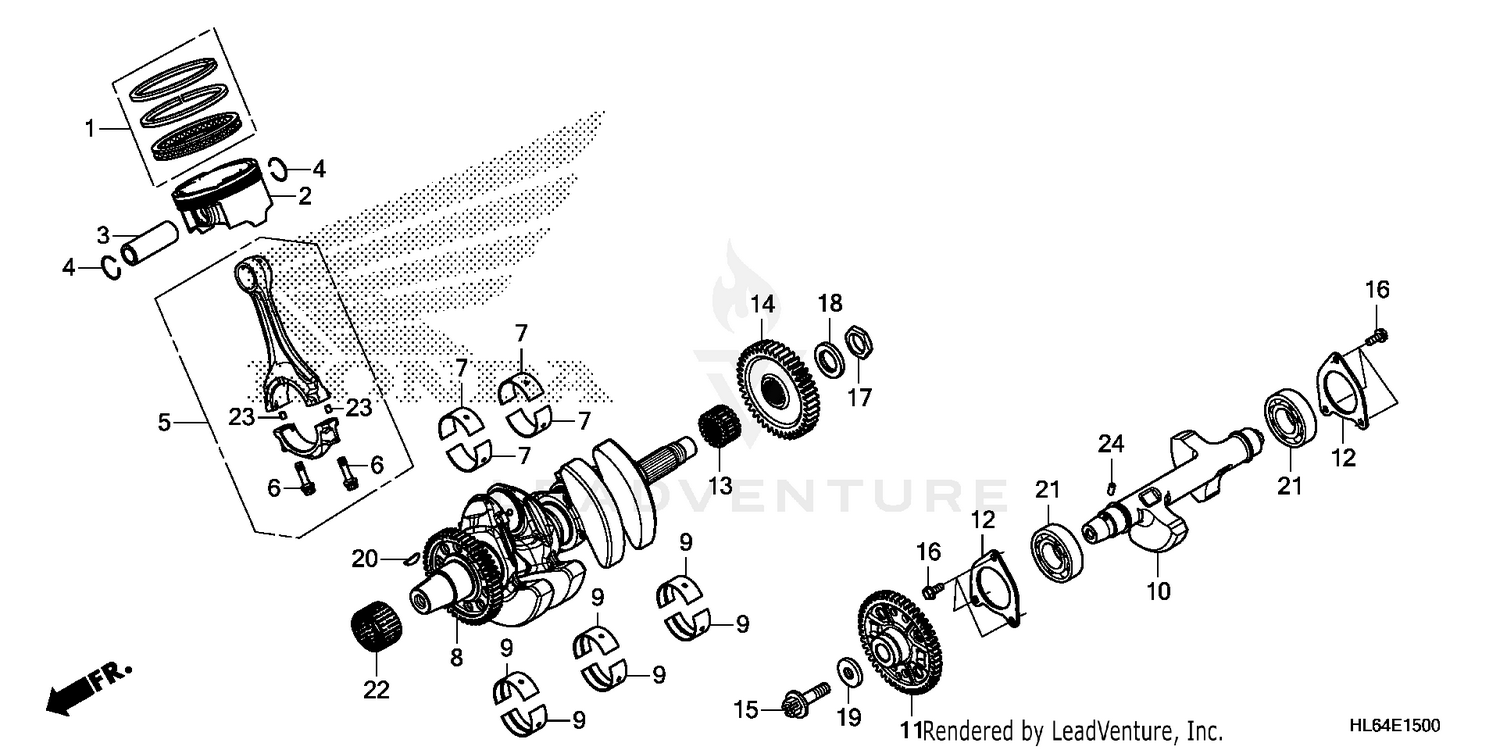

Crankshaft@piston Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
RING SET, PISTON (STD)
13010-HL6-305
|
$71.04 | ||
|
Available to order. Add to View Price |
|||
|
#1
RING SET, PISTON (O.S. 0.25)
13011-HL6-305
|
$71.04 | ||
|
Available to order. Add to View Price |
|||
|
#2
PISTON (STD)
13101-HL6-A00
|
$168.47 | ||
|
Available to order. Add to View Price |
|||
|
#2
PISTON (O.S. 0.25) (NOT AVAILABLE)
13102-HL6-305
|
$168.47 | ||
|
Available to order. Add to View Price |
|||
|
#3
PIN, PISTON
13111-MJP-G50
|
$26.33 | ||
|
Available to order. Add to View Price |
|||
|
#4
CLIP, PISTON PIN (22MM) (Honda Code 1206705)
13112-MC7-000
|
$2.73 | ||
|
Available to order. Add to View Price |
|||
|
#5
ROD ASSY., CONNECTING
13210-MJP-G50
|
$280.67 | ||
|
Available to order. Add to View Price |
|||
|
#6
BOLT, CONNECTING ROD
13213-MJP-G51
|
$8.25 | ||
|
Available to order. Add to View Price |
|||
|
#7
BEARING A, CONNECTING ROD (BLUE)
13214-MJP-G51
|
$14.44 | ||
|
Available to order. Add to View Price |
|||
|
#7
BEARING B, CONNECTING ROD (BLACK)
13215-MJP-G51
|
$14.44 | ||
|
Available to order. Add to View Price |
|||
|
#7
BEARING C, CONNECTING ROD (BROWN)
13216-MJP-G51
|
$14.44 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#7
BEARING D, CONNECTING ROD (GREEN)
13217-MJP-G51
|
$14.44 | ||
|
Available to order. Add to View Price |
|||
|
#7
BEARING E, CONNECTING ROD (YELLOW)
13218-MJP-G51
|
$14.44 | ||
|
Available to order. Add to View Price |
|||
|
#8
CRANKSHAFT
13300-HL6-A00
|
$967.53 | ||
|
Available to order. Add to View Price |
|||
|
#9
BEARING A, CRANKSHAFT (BROWN)
13315-HL4-003
|
$14.67 | ||
|
Available to order. Add to View Price |
|||
|
#9
BEARING B, CRANKSHAFT (GREEN)
13316-HL4-003
|
$14.67 | ||
|
Available to order. Add to View Price |
|||
|
#9
BEARING C, CRANKSHAFT (YELLOW)
13317-HL4-003
|
$14.67 | ||
|
Available to order. Add to View Price |
|||
|
#9
BEARING D, CRANKSHAFT (WHITE)
13318-HL4-003
|
$14.67 | ||
|
Available to order. Add to View Price |
|||
|
#9
BEARING E, CRANKSHAFT (PURPLE)
13319-HL4-003
|
$14.67 | ||
|
Available to order. Add to View Price |
|||
|
#10
SHAFT, BALANCER
13421-HL6-A00
|
$222.02 | ||
|
Available to order. Add to View Price |
|||
|
#11
GEAR, BALANCER DRIVEN (48T)
13422-HL6-A00
|
$183.16 | ||
|
Available to order. Add to View Price |
|||
|
#12
PLATE, BALANCER BEARING SET
13481-HL4-000
|
$6.42 | ||
|
Available to order. Add to View Price |
|||
|
#13
SPROCKET, TIMING (19T)
14311-MJP-G50
|
$43.75 | ||
|
Available to order. Add to View Price |
|||
|
#14
GEAR, PRIMARY DRIVE (43T)
23103-HL6-A00
|
$130.13 | ||
|
Available to order. Add to View Price |
|||
|
#15
BOLT, SPECIAL (10X37.2) (LEFT HAND THREAD)
90005-HL4-000
|
$9.78 | ||
|
Available to order. Add to View Price |
|||
|
#16
BOLT, FLANGE (6X16)
90012-HL4-000
|
$2.71 | ||
|
Available to order. Add to View Price |
|||
|
#17
NUT, LOCK (22MM)
90201-HL4-000
|
$5.89 | ||
|
Available to order. Add to View Price |
|||
|
#18
WASHER (22X37X5)
90404-HL4-000
|
$8.35 | ||
|
Available to order. Add to View Price |
|||
|
#19
WASHER (10.3X30X5)
90405-HL4-000
|
$6.67 | ||
|
Available to order. Add to View Price |
|||
|
#20
KEY, WOODRUFF (25X18)
90742-KYJ-900
|
$2.60 | ||
|
Available to order. Add to View Price |
|||
|
#21
BEARING, RADIAL BALL SPECIAL (62/28)
91016-HL4-003
|
$37.33 | ||
|
Available to order. Add to View Price |
|||
|
#22
BEARING, NEEDLE (39X44X23.8)
91018-HL4-003
|
$19.07 | ||
|
Available to order. Add to View Price |
|||
|
#23
PIN C, DOWEL (4X6.5)
94303-04065
|
$2.35 | ||
|
Available to order. Add to View Price |
|||
|
#24
ROLLER (4X10)
96220-40100
|
$0.56 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
