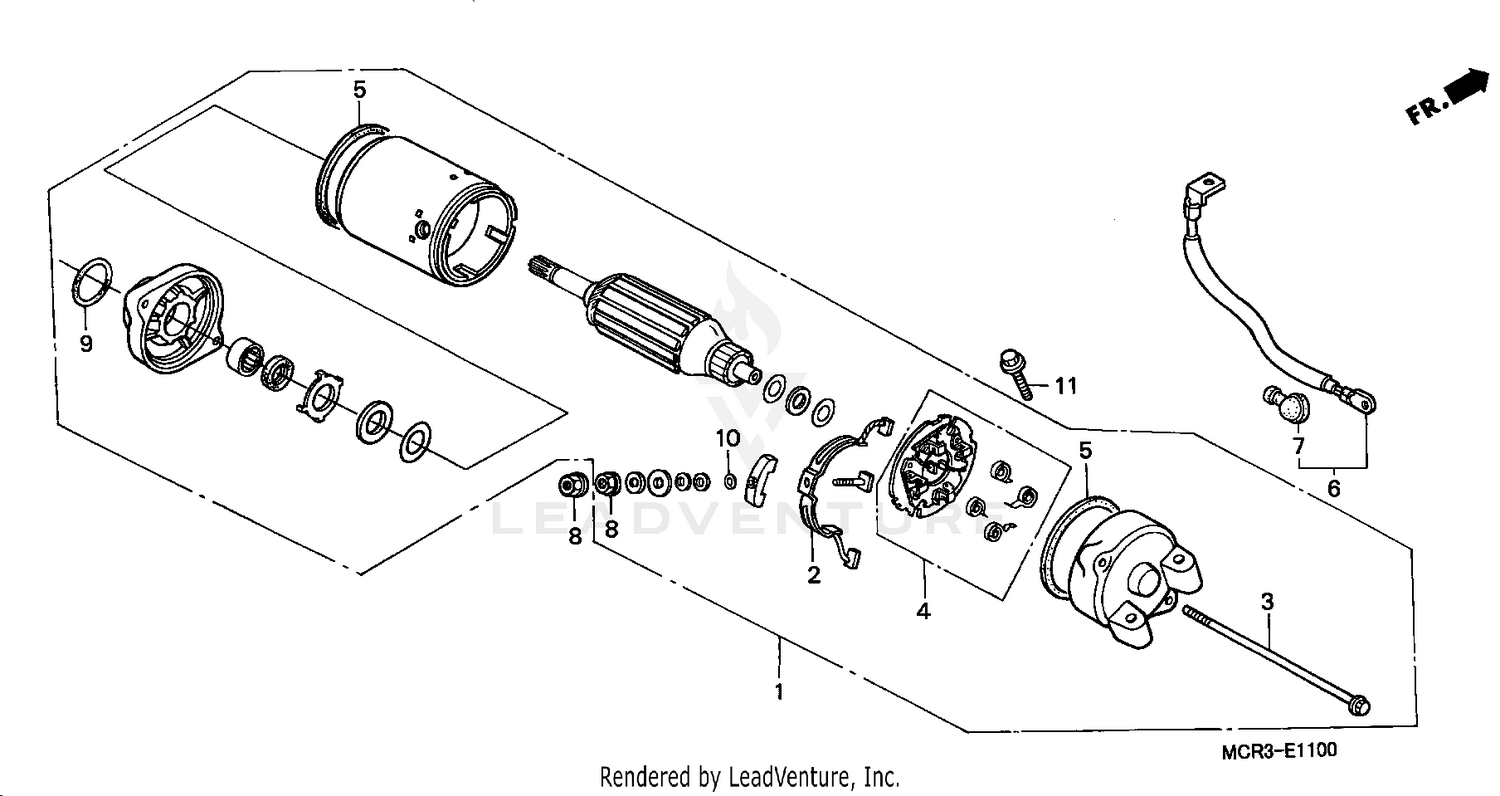

Starting Motor Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
STARTER MOTOR ASSY. (MITSUBA)
31200-MBA-711
|
$454.25 | ||
|
Unavailable |
|||
|
#2
TERMINAL SET, BRUSH
31201-MR6-008
|
$28.35 | ||
|
Available to order. Add to View Price |
|||
|
#3
BOLT, SETTING
31205-MF5-008
Superseded by 31205-MR1-008
|
$6.62 | ||
|
Available to order. Add to View Price |
|||
|
#3
BOLT, SETTING
31205-MR1-008
|
$6.62 | ||
|
Unavailable |
|||
|
#4
HOLDER SET, BRUSH
31206-MR6-008
|
$29.80 | ||
|
Available to order. Add to View Price |
|||
|
#5
RING
31207-KS5-901
|
$3.91 | ||
|
Available to order. Add to View Price |
|||
|
#6
CABLE, STARTER MOTOR
32410-MCL-000
|
$20.17 | ||
|
Unavailable |
|||
|
#7
COVER, STARTER MOTOR TERMINAL
32411-230-000
|
$8.04 | ||
|
Available to order. Add to View Price |
|||
|
#7
COVER, STARTER MOTOR TERMINAL
32411-253-000
Superseded by 32411-230-000
|
$8.04 | ||
|
Unavailable |
|||
|
#8
NUT-WASHER (6MM)
90071-MB0-000
|
$2.36 | ||
|
Available to order. Add to View Price |
|||
|
#9
O-RING (24.4X3.1)
91309-425-003
Superseded by 91312-MG7-003
|
$7.98 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#9
O-RING (24.4X3.1)
91312-MG7-003
|
$7.98 | ||
|
Unavailable |
|||
|
#10
O-RING (4X2)
91320-MB0-000
|
$2.76 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#11
BOLT, FLANGE (6X32)
95801-06032-00
|
$1.28 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
