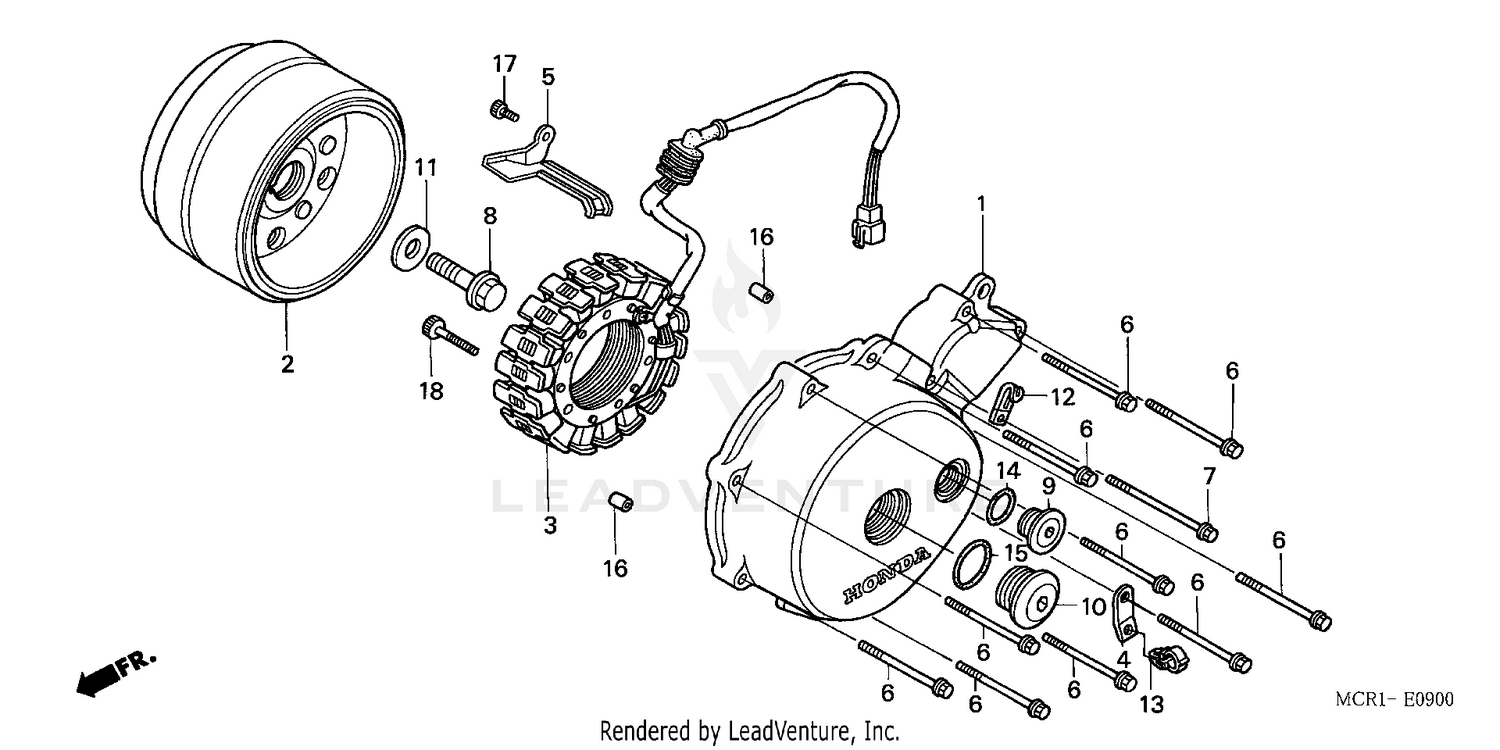

Left Crankcase Cover + Alternator Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
COVER, L. CRANKCASE
11341-MBA-A40
|
$217.09 | ||
|
Available to order. Add to View Price |
|||
|
#2
FLYWHEEL (DENSO)
31110-MBA-004
|
$362.51 | ||
|
Unavailable |
|||
|
#3
STATOR (DENSO)
31120-MBA-004
|
$477.76 | ||
|
Available to order. Add to View Price |
|||
|
#4
STAY, CLIP
32105-MBA-000
|
$3.85 | ||
|
Available to order. Add to View Price |
|||
|
#5
CLAMP, ALTERNATOR WIRE
32961-MBA-000
|
$6.66 | ||
|
Unavailable |
|||
|
#6
BOLT, FLANGE (6X35) (NSHF)
90006-GHB-700
|
$2.20 | ||
|
Available to order. Add to View Price |
|||
|
#7
BOLT, FLANGE (6X45) (NSHF)
90006-GHB-720
|
$2.13 | ||
|
Available to order. Add to View Price |
|||
|
#8
BOLT, FLANGE
90025-MN8-000
|
$15.69 | ||
|
Available to order. Add to View Price |
|||
|
#9
CAP (22MM)
90084-MR1-700
|
$38.05 | ||
|
Available to order. Add to View Price |
|||
|
#10
CAP (30MM)
90087-MR1-700
|
$38.05 | ||
|
Available to order. Add to View Price |
|||
|
#11
WASHER (12.5X34X5)
90402-MCL-000
|
$5.27 | ||
|
Available to order. Add to View Price |
|||
|
#12
CLIP (4X50)
90601-KJ9-000
|
$3.87 | ||
|
Available to order. Add to View Price |
|||
|
#13
CLIP, HARNESS
90659-734-K51
|
$2.44 | ||
|
Available to order. Add to View Price |
|||
|
#14
O-RING (21.5X2) (ARAI)
91310-KE8-003
|
$3.35 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#15
O-RING (29.7X2.4) (NOK)
91356-425-003
Superseded by 91356-425-005
|
$3.51 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#15
O-RING (29.7X2.4) (NOK)
91356-425-005
|
$3.51 | ||
|
Unavailable |
|||
|
#16
PIN, DOWEL (8X14)
94301-08140
|
$2.35 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#17
BOLT, SOCKET (6X12)
96700-06012-00
Superseded by 96600-06012-00
|
$1.82 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#17
BOLT, SOCKET (6X12)
96600-06012-00
|
$1.82 | ||
|
Unavailable |
|||
|
#18
BOLT, SOCKET (6X32)
96700-06032-00
|
$2.05 | ||
|
Available to order. Add to View Price |
|||
