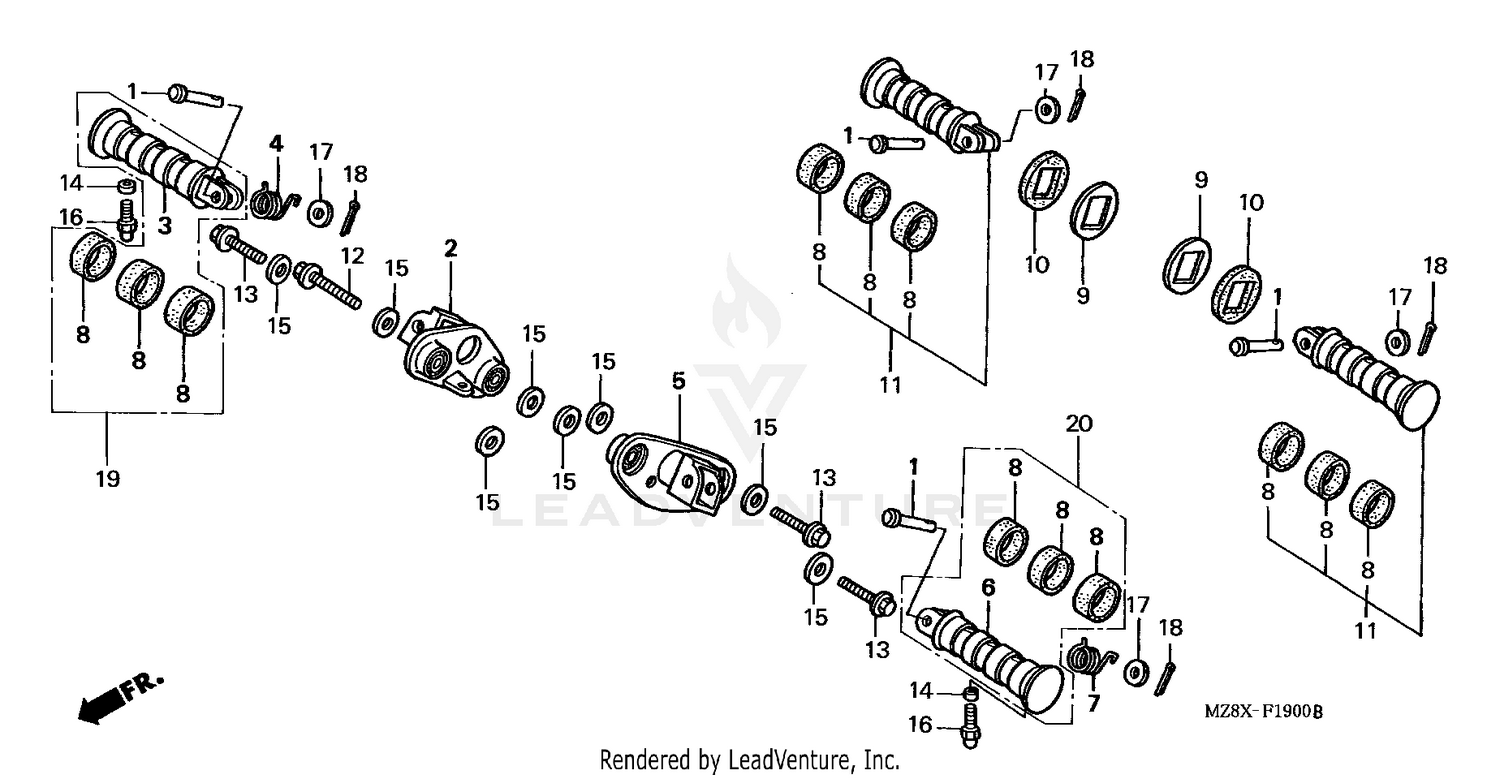

Step Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
PIN, STEP BAR JOINT
50603-033-010
|
$4.02 | ||
|
Available to order. Add to View Price |
|||
|
#2
BRACKET, R. MAIN STEP
50610-MZ8-K00
|
$105.19 | ||
|
Available to order. Add to View Price |
|||
|
#3
BAR, R. STEP
50612-MBA-020
|
$30.18 | ||
|
Available to order. Add to View Price |
|||
|
#4
SPRING, R. STEP RETURN
50617-MZ8-K00
|
$6.15 | ||
|
Available to order. Add to View Price |
|||
|
#5
BRACKET, L. MAIN STEP
50620-MZ8-K00
|
$120.07 | ||
|
Available to order. Add to View Price |
|||
|
#6
BAR, L. STEP
50642-MBA-020
|
$29.16 | ||
|
Available to order. Add to View Price |
|||
|
#7
SPRING, L. STEP RETURN
50644-MZ8-K00
|
$6.15 | ||
|
Available to order. Add to View Price |
|||
|
#8
RUBBER, MAIN STEP
50661-MBA-010
|
$3.40 | ||
|
Available to order. Add to View Price |
|||
|
#9
WASHER, PILLION STEP
50712-MBA-000
|
$6.78 | ||
|
Available to order. Add to View Price |
|||
|
#10
RUBBER, PILLION STEP
50713-MBA-000
|
$4.35 | ||
|
Available to order. Add to View Price |
|||
|
#11
STEP ASSY., PILLION
50715-MBA-020
|
$39.75 | ||
|
Available to order. Add to View Price |
|||
|
#12
BOLT, FLANGE (10X75)
90102-MN0-000
|
$17.35 | ||
|
Available to order. Add to View Price |
|||
|
#13
BOLT, SPECIAL FLANGE (10X40)
90124-KR3-000
Superseded by 90101-MAA-000
|
$13.82 | ||
|
Available to order. Add to View Price |
|||
|
#14
COLLAR (6MM)
90311-GF0-810
|
$4.15 | ||
|
Available to order. Add to View Price |
|||
|
#15
WASHER, PLAIN (10.3MM)
90527-230-000
|
$2.35 | ||
|
Available to order. Add to View Price |
|||
|
#16
BOLT, CAP (6X16)
92501-06016-0A
|
$3.28 | ||
|
Available to order. Add to View Price |
|||
|
#17
WASHER, PLAIN (8MM)
94101-08000
|
$0.87 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#18
PIN, SPLIT (2.0X15)
94201-20150
|
$1.08 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#19
STEP SET, R. MAIN
50613-MBA-305
|
$30.16 | ||
|
Available to order. Add to View Price |
|||
|
#20
STEP SET, L. MAIN
50643-MBA-305
|
$30.16 | ||
|
Available to order. Add to View Price |
|||
