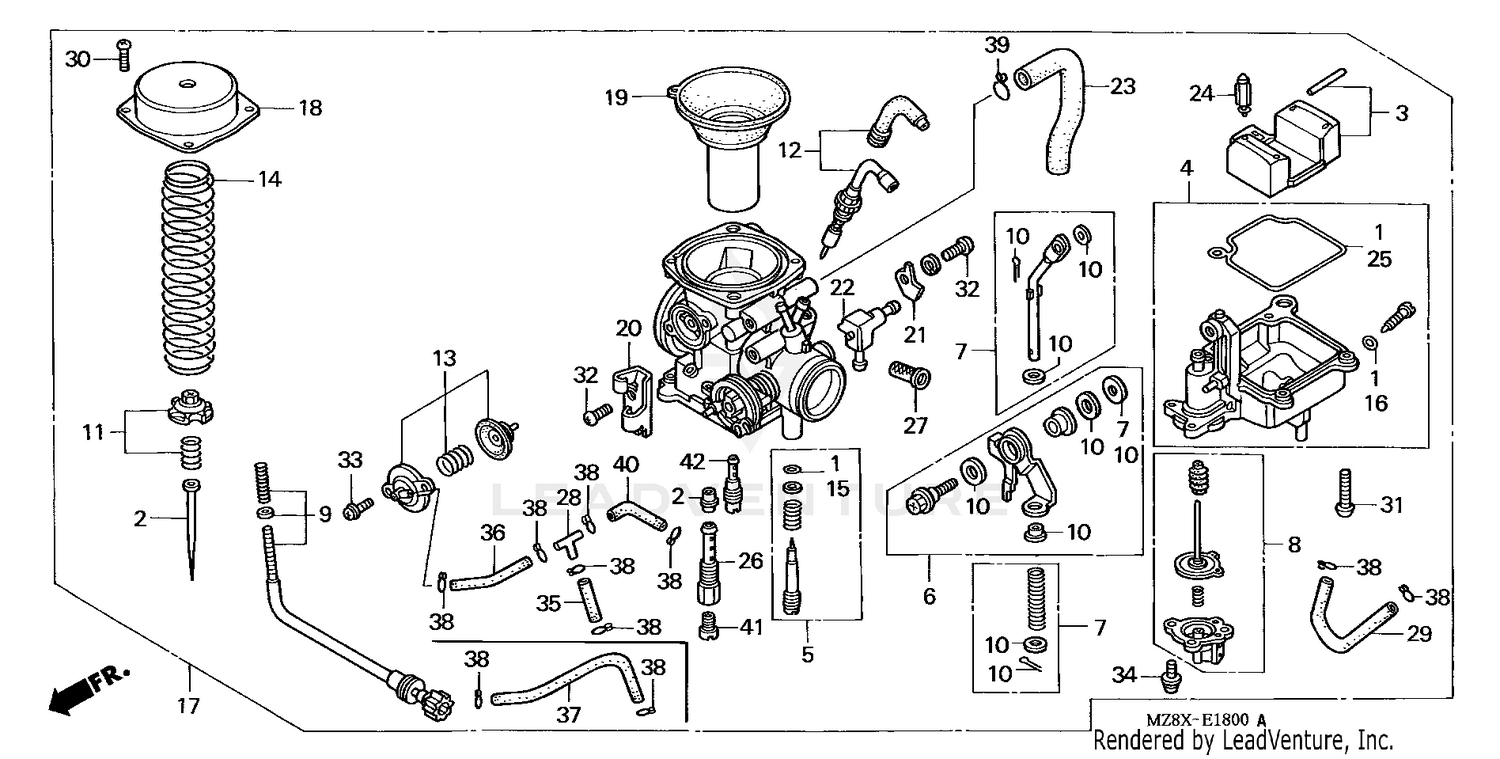

Carburetor Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
GASKET SET
16010-MZ8-H00
Superseded by 16010-KEN-B11
|
$29.65 | ||
|
Available to order. Add to View Price |
|||
|
#2
NEEDLE SET, JET
16012-MZ8-L50
|
$19.30 | ||
|
Unavailable |
|||
|
#3
FLOAT SET
16013-KR3-980
|
$66.96 | ||
|
Available to order. Add to View Price |
|||
|
#4
CHAMBER SET, FLOAT
16015-MZ8-H00
|
$107.69 | ||
|
Unavailable |
|||
|
#5
SCREW SET A
16016-MZ8-S00
|
$27.60 | ||
|
Available to order. Add to View Price |
|||
|
#6
LINK SET
16017-KEN-620
|
$49.95 | ||
|
Available to order. Add to View Price |
|||
|
#7
ROD SET, PUMP
16019-MZ8-H00
|
$16.30 | ||
|
Unavailable |
|||
|
#8
DIAPHRAGM SET, PUMP
16021-KBG-670
Superseded by 16021-KEN-620
|
$146.35 | ||
|
Available to order. Add to View Price |
|||
|
#9
SCREW SET B
16028-MZ8-H00
|
$42.77 | ||
|
Available to order. Add to View Price |
|||
|
#10
WASHER SET
16035-MZ8-H00
|
$9.89 | ||
|
Available to order. Add to View Price |
|||
|
#11
PLATE SET, VALVE
16037-MB0-671
Superseded by 16037-ME5-671
|
$33.73 | ||
|
Available to order. Add to View Price |
|||
|
#12
VALVE SET, STARTER
16046-MZ8-H00
|
$58.00 | ||
|
Available to order. Add to View Price |
|||
|
#13
VALVE SET, AIR CUT
16048-MZ8-H00
|
$134.00 | ||
|
Available to order. Add to View Price |
|||
|
#14
SPRING, COMPRESSION COIL
16050-MZ8-L50
|
$8.49 | ||
|
Unavailable |
|||
|
#15
O-RING (1.1X2.8)
16075-GHB-600
|
$2.65 | ||
|
Available to order. Add to View Price |
|||
|
#16
O-RING (1.3X4.3)
16075-GHB-640
|
$3.33 | ||
|
Available to order. Add to View Price |
|||
|
#17
CARBURETOR ASSY. (VE5AC A)
16100-MZ8-L50
|
$537.13 | ||
|
Unavailable |
|||
|
#18
TOP
16107-KCZ-000
|
$40.09 | ||
|
Available to order. Add to View Price |
|||
|
#19
PISTON, VACUUM
16111-MZ8-H00
|
$152.96 | ||
|
Available to order. Add to View Price |
|||
|
#20
STAY, WIRE
16119-KBR-000
|
$13.06 | ||
|
Unavailable |
|||
|
#21
PLATE, STAY
16120-MZ8-H00
|
$2.17 | ||
|
Available to order. Add to View Price |
|||
|
#22
HEATER
16136-MZ8-H00
|
$20.35 | ||
|
Unavailable |
|||
|
#23
TUBE
16144-MZ8-H00
|
$2.48 | ||
|
Unavailable |
|||
|
#24
VALVE, FLOAT
16155-MN9-004
|
$36.78 | ||
|
Available to order. Add to View Price |
|||
|
#25
GASKET, FLOAT CHAMBER
16163-HM7-700
|
$12.18 | ||
|
Available to order. Add to View Price |
|||
|
#26
HOLDER, NEEDLE JET
16165-MZ8-H00
|
$18.72 | ||
|
Available to order. Add to View Price |
|||
|
#27
SCREEN, FUEL STRAINER
16176-MW3-A80
|
$8.58 | ||
|
Available to order. Add to View Price |
|||
|
#30
SCREW, PAN (4X8)
93500-04008-0A
|
$0.92 | ||
|
Available to order. Add to View Price |
|||
|
#30
SCREW, PAN (4X8)
93500-04008-1A
Superseded by 93500-04008-0A
|
$0.92 | ||
|
Unavailable |
|||
|
#31
SCREW, PAN (4X14)
93500-04014-0A
|
$0.87 | ||
|
Available to order. Add to View Price |
|||
|
#31
SCREW, PAN (4X14)
93500-04014-1A
Superseded by 93500-04014-0A
|
$0.87 | ||
|
Unavailable |
|||
|
#32
SCREW, PAN (5X10)
93500-05010-0A
|
$0.95 | ||
|
Available to order. Add to View Price |
|||
|
#32
SCREW, PAN (5X10)
93500-05010-1A
Superseded by 93500-05010-0A
|
$0.95 | ||
|
Unavailable |
|||
|
#32
SCREW, PAN (5X10)
93510-05010-0A
Superseded by 93500-05010-0A
|
$0.95 | ||
|
Unavailable |
|||
|
#33
SCREW-WASHER (4X10)
93892-04010-08
|
$1.20 | ||
|
Available to order. Add to View Price |
|||
|
#33
SCREW-WASHER (4X10)
93892-04010-18
Superseded by 93892-04010-08
|
$1.20 | ||
|
Unavailable |
|||
|
#34
SCREW-WASHER (4X12)
93892-04012-00
|
$0.76 | ||
|
Available to order. Add to View Price |
|||
|
#34
SCREW-WASHER (4X12)
93892-04012-10
Superseded by 93892-04012-00
|
$0.76 | ||
|
Unavailable |
|||
|
#37
BULK HOSE, FUEL (3.5X3000) (3.5X110)
95001-35003-60M
|
$25.27 | ||
|
Available to order. Add to View Price |
|||
|
#38
CLIP, TUBE (B7)
95002-02079
|
$1.36 | ||
|
Available to order. Add to View Price |
|||
|
#39
CLIP, TUBE (B12)
95002-02120
|
$2.03 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#41
JET, MAIN (#125)
99101-GHB-1250
Superseded by 99101-443-1250
|
$7.27 | ||
|
Available to order. Add to View Price |
|||
|
#42
JET, SLOW (#45)
99103-MZ8-0450
Superseded by 99104-KPF-0450
|
$14.36 | ||
|
Available to order. Add to View Price |
|||
