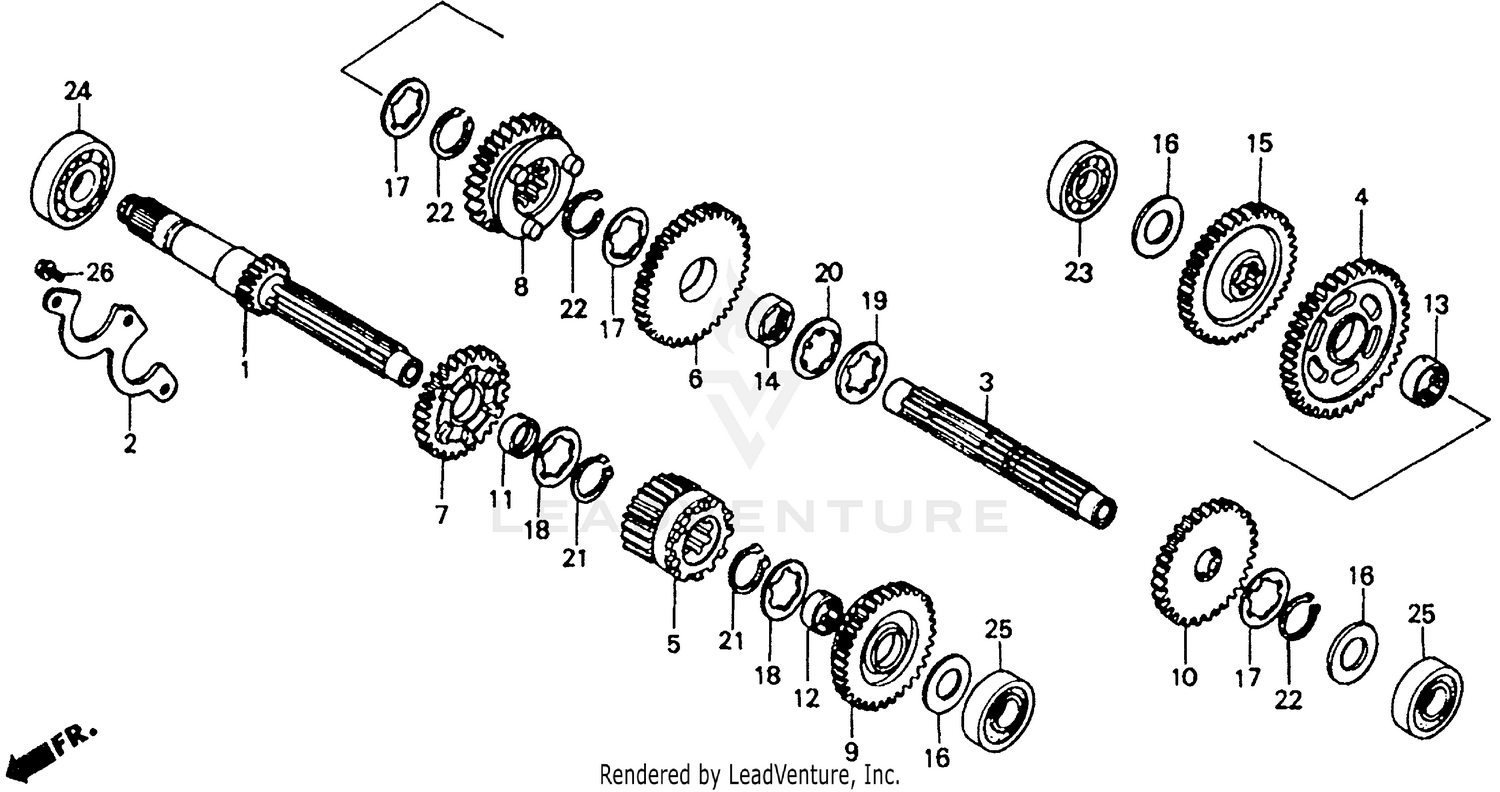

Transmission Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
MAINSHAFT, TRANSMISSION (16T)
23211-MM8-000
|
$173.08 | ||
|
Unavailable |
|||
|
#2
PLATE, BEARING
23212-MK7-670
|
$15.90 | ||
|
Available to order. Add to View Price |
|||
|
#3
COUNTERSHAFT, TRANSMISSION
23220-MM8-000
|
$128.82 | ||
|
Unavailable |
|||
|
#4
GEAR, COUNTERSHAFT LOW (38T)
23421-MM8-000
|
$138.63 | ||
|
Unavailable |
|||
|
#5
GEAR, MAINSHAFT SECOND (22T)
23431-MM8-000
Superseded by 23431-MR6-670
|
$163.85 | ||
|
Unavailable |
|||
|
#5
GEAR, MAINSHAFT SECOND (22T)
23431-MR6-670
|
$163.85 | ||
|
Unavailable |
|||
|
#6
GEAR, COUNTERSHAFT SECOND (33T)
23441-MM8-000
|
$115.00 | ||
|
Unavailable |
|||
|
#7
GEAR, MAINSHAFT THIRD (26T)
23451-MM8-880
|
$131.78 | ||
|
Unavailable |
|||
|
#8
GEAR, COUNTERSHAFT THIRD (28T)
23461-MM8-000
|
$138.72 | ||
|
Unavailable |
|||
|
#9
GEAR, MAINSHAFT FOURTH (30T)
23471-MM8-000
|
$127.26 | ||
|
Unavailable |
|||
|
#10
GEAR, COUNTERSHAFT FOURTH (24T)
23481-MM8-000
|
$108.68 | ||
|
Unavailable |
|||
|
#11
COLLAR (28X13)
23511-MM8-000
Superseded by 23495-MM5-000
|
$26.27 | ||
|
Available to order. Add to View Price |
|||
|
#12
COLLAR, SPLINE (28X26X17)
23512-MM8-000
|
$18.35 | ||
|
Unavailable |
|||
|
#13
COLLAR, SPLINE (30X28X15.7)
23513-MM8-000
|
$17.25 | ||
|
Unavailable |
|||
|
#14
COLLAR, SPLINE (30X28X11)
23514-MM8-000
|
$17.67 | ||
|
Unavailable |
|||
|
#15
GEAR, FINAL DRIVE (36T)
23725-MM8-000
|
$124.55 | ||
|
Unavailable |
|||
|
#16
WASHER (20X37X2)
90404-KK0-000
|
$5.07 | ||
|
Available to order. Add to View Price |
|||
|
#17
WASHER, THRUST (30MM)
90451-MG8-000
|
$4.24 | ||
|
Unavailable |
|||
|
#18
WASHER, THRUST (28MM)
90451-422-000
|
$9.55 | ||
|
Available to order. Add to View Price |
|||
|
#19
WASHER, THRUST (30MM)
90461-MJ4-670
|
$4.12 | ||
|
Unavailable |
|||
|
#20
WASHER, LOCK (30MM)
90462-MJ4-670
|
$3.74 | ||
|
Unavailable |
|||
|
#21
CIRCLIP (OUTER) (28MM)
90601-422-000
|
$3.40 | ||
|
Available to order. Add to View Price |
|||
|
#22
CIRCLIP (30MM)
90604-MG8-000
|
$3.91 | ||
|
Available to order. Add to View Price |
|||
|
#23
BEARING, RADIAL BALL (20X52X15) (TOYO)
91003-MG8-003
|
$45.78 | ||
|
Available to order. Add to View Price |
|||
|
#24
BEARING, RADIAL BALL (305/28) (TOYO)
91004-MG8-003
|
$38.51 | ||
|
Unavailable |
|||
|
#25
BEARING, SEALED BALL (20X52X15) (TOYO)
91005-MG8-003
|
$33.69 | ||
|
Unavailable |
|||
|
#26
BOLT, FLANGE (6X16)
95701-06016-00
|
$1.70 | ||
|
Available to order. Add to View Price |
|||
