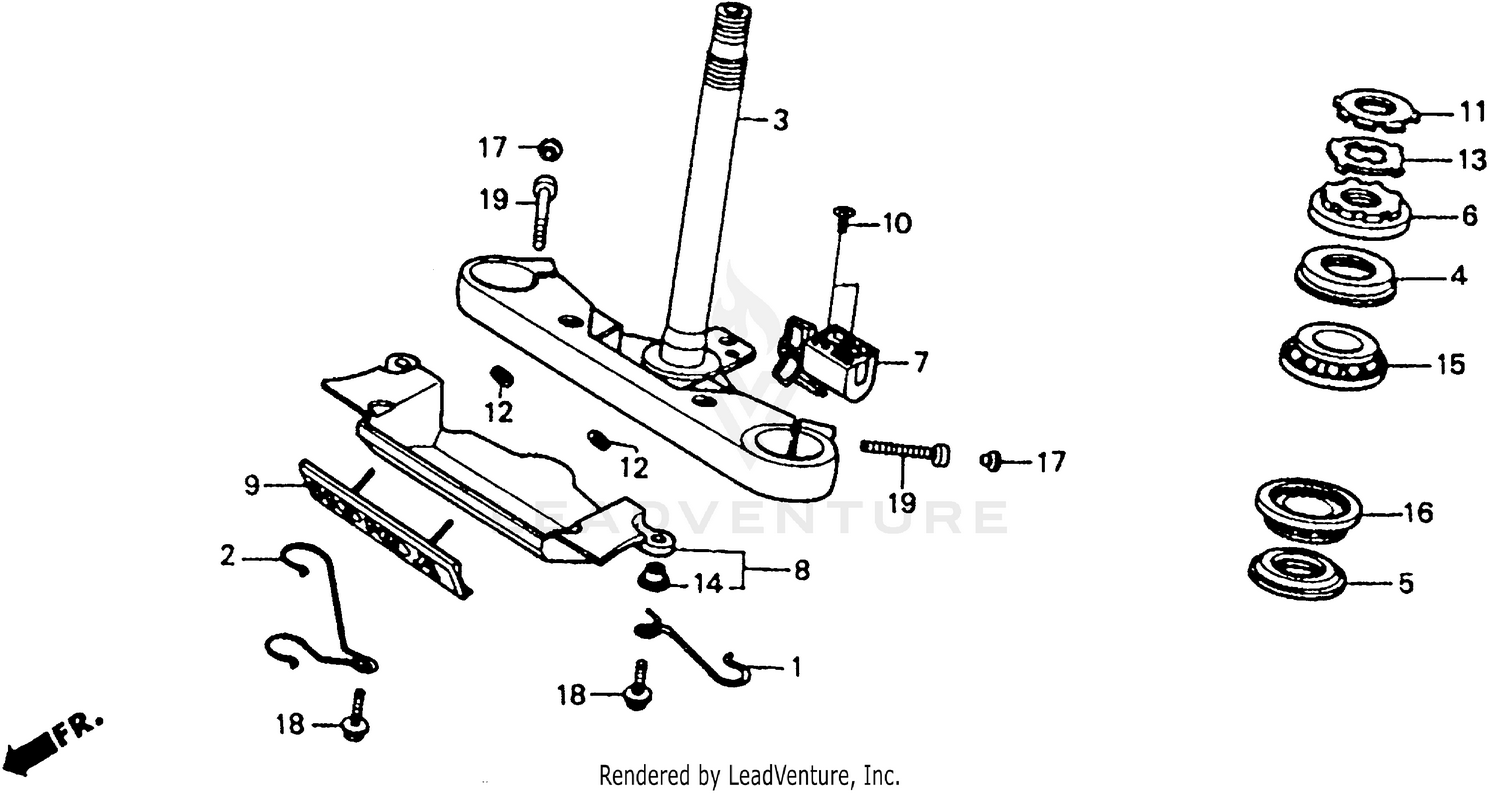

Steering Stem Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CLAMP, SPEEDOMETER CABLE
44832-MM8-000
|
$4.53 | ||
|
Unavailable |
|||
|
#2
CLAMP, FR. BRAKE HOSE
45131-MAA-000
|
$5.38 | ||
|
Unavailable |
|||
|
#3
STEM, STEERING
53200-MM8-881
|
$308.99 | ||
|
Unavailable |
|||
|
#3
STEM, STEERING
53200-MM8-880
Superseded by 53200-MM8-881
|
$308.99 | ||
|
Unavailable |
|||
|
#4
DUST SEAL, STEERING HEAD
53213-MB4-771
|
$14.71 | ||
|
Available to order. Add to View Price |
|||
|
#5
DUST SEAL, STEERING HEAD
53214-371-010
|
$15.22 | ||
|
Available to order. Add to View Price |
|||
|
#6
THREAD, STEERING HEAD (UPPER)
53220-422-000
|
$39.67 | ||
|
Available to order. Add to View Price |
|||
|
#6
THREAD, STEERING HEAD TOP
53220-460-840
Superseded by 53220-422-000
|
$39.67 | ||
|
Unavailable |
|||
|
#7
LOCK, HANDLEBAR (HONDALOCK)
53600-086-007
|
$54.71 | ||
|
Available to order. Add to View Price |
|||
|
#8
COVER (LOWER)
61401-MM8-000
Superseded by 61401-MM8-010
|
$161.68 | ||
|
Available to order. Add to View Price |
|||
|
#8
COVER (LOWER)
61401-MM8-010
|
$161.68 | ||
|
Unavailable |
|||
|
#9
EMBLEM, BRIDGE (LOWER)
61405-MN0-000
|
$23.28 | ||
|
Available to order. Add to View Price |
|||
|
#10
SCREW, U-LOCK FLAT (6X12)
90164-028-000
|
$2.05 | ||
|
Available to order. Add to View Price |
|||
|
#11
THREAD, STEERING HEAD TOP (B)
90302-425-830
|
$26.33 | ||
|
Available to order. Add to View Price |
|||
|
#12
NUT, SPEED (3MM)
90315-504-000
|
$4.03 | ||
|
Available to order. Add to View Price |
|||
|
#13
WASHER, LOCK
90506-425-830
|
$8.85 | ||
|
Available to order. Add to View Price |
|||
|
#14
COLLAR, GEARSHIFT LEVER SETTING
90522-MF5-000
Superseded by 90522-170-700
|
$2.22 | ||
|
Available to order. Add to View Price |
|||
|
#15
BEARING, HEAD PIPE (UPPER)
91015-KT8-005
|
$43.02 | ||
|
Available to order. Add to View Price |
|||
|
#16
BEARING, HEAD PIPE (LOWER)
91016-KT8-005
|
$43.02 | ||
|
Available to order. Add to View Price |
|||
|
#17
CAP, SOCKET BOLT (10MM)
91456-MJ0-000
|
$5.20 | ||
|
Available to order. Add to View Price |
|||
|
#18
BOLT, FLANGE (6X16)
95701-06016-07
|
$1.70 | ||
|
Unavailable |
|||
|
#19
BOLT, SOCKET (10X25)
96700-10025-17
|
$1.55 | ||
|
Unavailable |
|||
