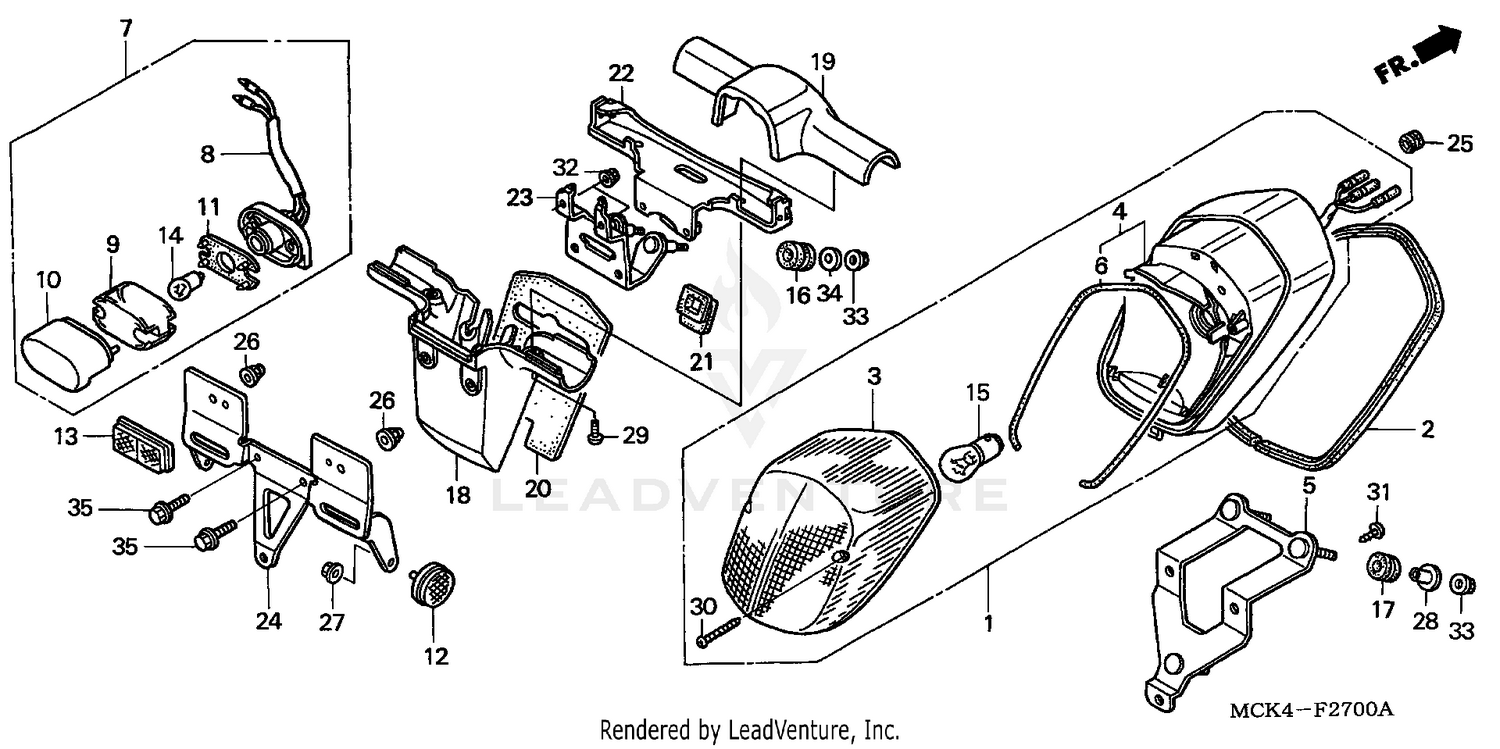

Taillight Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
TAILLIGHT ASSY.
33701-MCK-A01
|
$114.61 | ||
|
Unavailable |
|||
|
#2
MOLDING, RR. FENDER
33702-MBA-000
|
$13.84 | ||
|
Available to order. Add to View Price |
|||
|
#3
LENS, TAILLIGHT
33702-MZ0-003
|
$48.41 | ||
|
Available to order. Add to View Price |
|||
|
#4
BASE, TAILLIGHT
33704-MCK-A01
|
$55.96 | ||
|
Unavailable |
|||
|
#5
BRACKET, TAILLIGHT
33705-MBA-000
|
$21.87 | ||
|
Available to order. Add to View Price |
|||
|
#6
GASKET, TAILLIGHT
33709-MZ0-000
|
$9.55 | ||
|
Available to order. Add to View Price |
|||
|
#7
LIGHT ASSY., LICENSE
33720-MZ0-671
|
$153.58 | ||
|
Available to order. Add to View Price |
|||
|
#8
BASE, LICENSE
33721-MZ0-003
|
$60.42 | ||
|
Available to order. Add to View Price |
|||
|
#9
LENS, LICENSE LIGHT
33722-MB1-013
|
$23.85 | ||
|
Available to order. Add to View Price |
|||
|
#10
COVER, LICENSE LIGHT
33727-KR3-000
|
$33.89 | ||
|
Available to order. Add to View Price |
|||
|
#11
GASKET, LENS
33729-MB1-003
|
$7.91 | ||
|
Available to order. Add to View Price |
|||
|
#12
REFLECTOR, RR. REFLEX
33741-HB9-641
|
$16.07 | ||
|
Available to order. Add to View Price |
|||
|
#13
REFLECTOR, RR. REFLEX
33741-MR1-671
|
$23.05 | ||
|
Available to order. Add to View Price |
|||
|
#14
BULB (12V8W)
34616-568-671
Superseded by 34909-505-003
|
$3.45 | ||
|
Unavailable |
|||
|
#14
BULB (12V8W)
34902-500-003
Superseded by 34909-505-003
|
$3.45 | ||
|
Unavailable |
|||
|
#14
BULB (12V8W)
34908-272-000
Superseded by 34909-505-003
|
$3.45 | ||
|
Unavailable |
|||
|
#14
BULB (12V8W4CP) (67) (STANLEY)
34909-505-003
|
$3.45 | ||
|
Unavailable |
|||
|
#14
BULB (12V8W)
34909-505-610
Superseded by 34909-505-003
|
$3.45 | ||
|
Unavailable |
|||
|
#15
BULB, TURN SIGNAL (12V23/8W) (1034HD) (STANLEY)
34905-425-671
|
$8.13 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#16
RUBBER, FR. FENDER MOUNTING
61103-357-000
|
$4.11 | ||
|
Available to order. Add to View Price |
|||
|
#17
RUBBER, RR. FENDER CUSHION
80101-310-000
|
$2.33 | ||
|
Available to order. Add to View Price |
|||
|
#18
BRACKET, LICENSE LIGHT
80120-MZ0-000
|
$69.71 | ||
|
Available to order. Add to View Price |
|||
|
#19
COVER, LICENSE LIGHT
80121-MZ0-700
|
$67.44 | ||
|
Available to order. Add to View Price |
|||
|
#20
RUBBER, LICENSE LIGHT CUSHION
80125-MBA-000
|
$11.69 | ||
|
Available to order. Add to View Price |
|||
|
#21
GROMMET, LICENSE LIGHT
80126-MBA-000
|
$5.68 | ||
|
Available to order. Add to View Price |
|||
|
#22
STAY, LICENSE LIGHT
80126-MZ0-700
|
$36.22 | ||
|
Available to order. Add to View Price |
|||
|
#23
STAY B, LICENSE LIGHT
80127-MZ0-700
|
$20.45 | ||
|
Available to order. Add to View Price |
|||
|
#24
BRACKET, NUMBER PLATE
84701-MBA-670
|
$48.98 | ||
|
Available to order. Add to View Price |
|||
|
#25
GROMMET, FENDER
88911-MJ3-000
|
$2.24 | ||
|
Available to order. Add to View Price |
|||
|
#26
NUT, FLANGE CAP (5MM)
90167-SA0-980
|
$7.02 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#27
NUT, U (6MM)
90301-473-003
|
$5.11 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#28
COLLAR, HEADLIGHT BRACKET
90501-MJ6-000
|
$5.62 | ||
|
Available to order. Add to View Price |
|||
|
#29
SCREW, PAN (5X14)
93500-05014-0A
|
$0.87 | ||
|
Unavailable |
|||
|
#30
SCREW, TAPPING (4X35)
93901-348G0
|
$2.93 | ||
|
Available to order. Add to View Price |
|||
|
#31
SCREW, TAPPING (5X12)
93911-25220
|
$0.87 | ||
|
Available to order. Add to View Price |
|||
|
#32
NUT, FLANGE (4MM)
94050-04000
|
$1.28 | ||
|
Available to order. Add to View Price |
|||
|
#33
NUT, FLANGE (6MM)
94050-06000
|
$0.68 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#34
WASHER, PLAIN (6MM)
94103-06000
|
$1.03 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#35
BOLT, FLANGE (6X18)
95701-06018-00
|
$1.70 | ||
|
Available to order. Add to View Price |
|||
