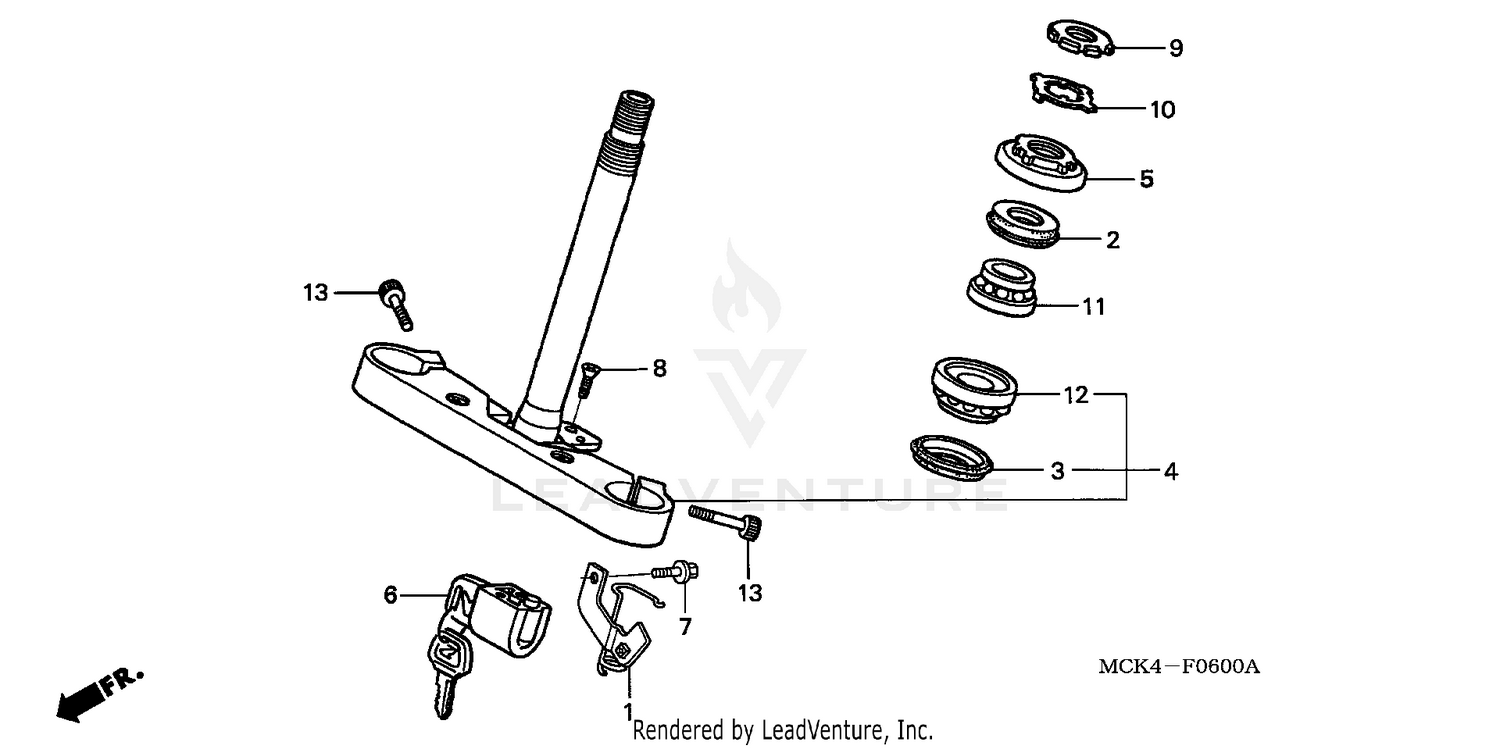

Steering Stem Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CLAMP, FR. BRAKE HOSE
45130-MCK-A00
|
$11.75 | ||
|
Available to order. Add to View Price |
|||
|
#2
DUST SEAL, STEERING HEAD (ARAI)
53213-MB4-771
|
$14.71 | ||
|
Available to order. Add to View Price |
|||
|
#3
DUST SEAL, STEERING HEAD
53214-371-010
|
$15.22 | ||
|
Available to order. Add to View Price |
|||
|
#4
STEM SUB-ASSY., STEERING
53219-MCK-A00
Superseded by 53219-MCK-A50
|
$283.00 | ||
|
Available to order. Add to View Price |
|||
|
#4
STEM SUB-ASSY., STEERING
53219-MCK-A50
|
$283.00 | ||
|
Unavailable |
|||
|
#5
THREAD, STEERING HEAD TOP
53220-422-000
|
$39.67 | ||
|
Available to order. Add to View Price |
|||
|
#6
LOCK, HANDLEBAR (HONDALOCK)
53600-GCN-003
|
$30.45 | ||
|
Available to order. Add to View Price |
|||
|
#7
BOLT, FLANGE (6X12)
90130-ML0-730
|
$3.47 | ||
|
Available to order. Add to View Price |
|||
|
#8
SCREW, U-LOCK FLAT (6X12)
90164-028-000
|
$2.05 | ||
|
Available to order. Add to View Price |
|||
|
#9
THREAD B, STEERING HEAD TOP
90302-425-830
|
$26.33 | ||
|
Available to order. Add to View Price |
|||
|
#10
WASHER, LOCK
90506-425-830
|
$8.85 | ||
|
Available to order. Add to View Price |
|||
|
#11
BEARING, HEAD PIPE (UPPER) (KOYO)
91015-KT8-005
|
$43.02 | ||
|
Available to order. Add to View Price |
|||
|
#12
BEARING, HEAD PIPE (LOWER) (KOYO)
91016-KT8-005
|
$43.02 | ||
|
Available to order. Add to View Price |
|||
|
#13
BOLT, SOCKET (10X25)
96700-10025-10
|
$2.87 | ||
|
Available to order. Add to View Price |
|||
