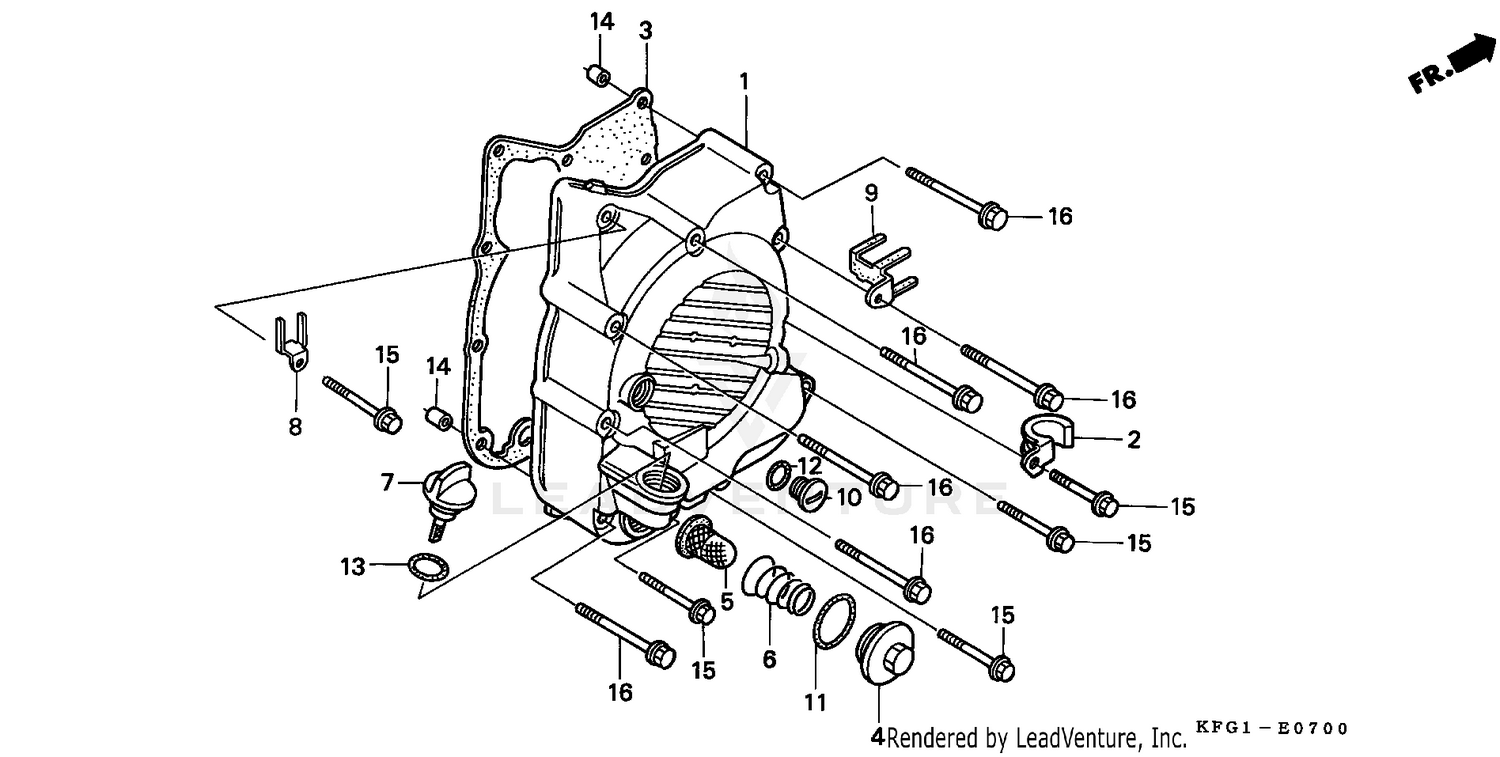

Right Crankcase Cover Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
COVER, R.
11330-KPB-000
|
$154.10 | ||
|
Available to order. Add to View Price |
|||
|
#2
CLAMP, WATER HOSE
11336-KAB-020
|
$5.95 | ||
|
Available to order. Add to View Price |
|||
|
#3
GASKET, R. COVER
11394-KAB-010
Superseded by 11394-KAB-030
|
$12.60 | ||
|
Unavailable |
|||
|
#3
GASKET, R. COVER
11394-KAB-020
Superseded by 11394-KAB-030
|
$12.60 | ||
|
Unavailable |
|||
|
#3
GASKET, R. COVER
11394-KAB-030
|
$12.60 | ||
|
Unavailable |
|||
|
#4
CAP, VALVE ADJ.
12361-035-000
Superseded by 12361-300-000
|
$12.40 | ||
|
Available to order. Add to View Price |
|||
|
#4
CAP, VALVE ADJ.
12361-300-000
|
$12.40 | ||
|
Unavailable |
|||
|
#4
CAP, VALVE ADJ.
12361-371-980
Superseded by 12361-300-000
|
$12.40 | ||
|
Unavailable |
|||
|
#5
SCREEN, OIL FILTER
15421-107-000
|
$7.93 | ||
|
Available to order. Add to View Price |
|||
|
#6
SPRING, OIL FILTER SCREEN
15426-GE1-920
|
$7.05 | ||
|
Available to order. Add to View Price |
|||
|
#7
DIPSTICK, OIL
15651-KN7-673
|
$14.67 | ||
|
Available to order. Add to View Price |
|||
|
#8
CLAMP, WIRE
32964-GK8-000
|
$3.96 | ||
|
Available to order. Add to View Price |
|||
|
#9
CLAMP, WIRE
32965-KAB-000
|
$8.02 | ||
|
Unavailable |
|||
|
#10
CAP, ALTERNATOR
90084-428-000
Superseded by 90084-471-000
|
$11.65 | ||
|
Available to order. Add to View Price |
|||
|
#11
O-RING (30.8MM) (Honda Code 0001065)
91302-001-020
|
$4.70 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#12
O-RING (13.8X2.5)
91303-377-000
|
$4.29 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#13
O-RING (18X3)
91307-035-000
|
$3.40 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#14
PIN, DOWEL (10X16) (Honda Code 0058206)
94301-10160
|
$2.58 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#15
BOLT, FLANGE (6X50) (Honda Code 2410975)
95701-06050-00
|
$2.27 | ||
|
Available to order. Add to View Price |
|||
|
#16
BOLT, FLANGE (6X70)
95701-06070-00
|
$2.40 | ||
|
Available to order. Add to View Price |
|||
