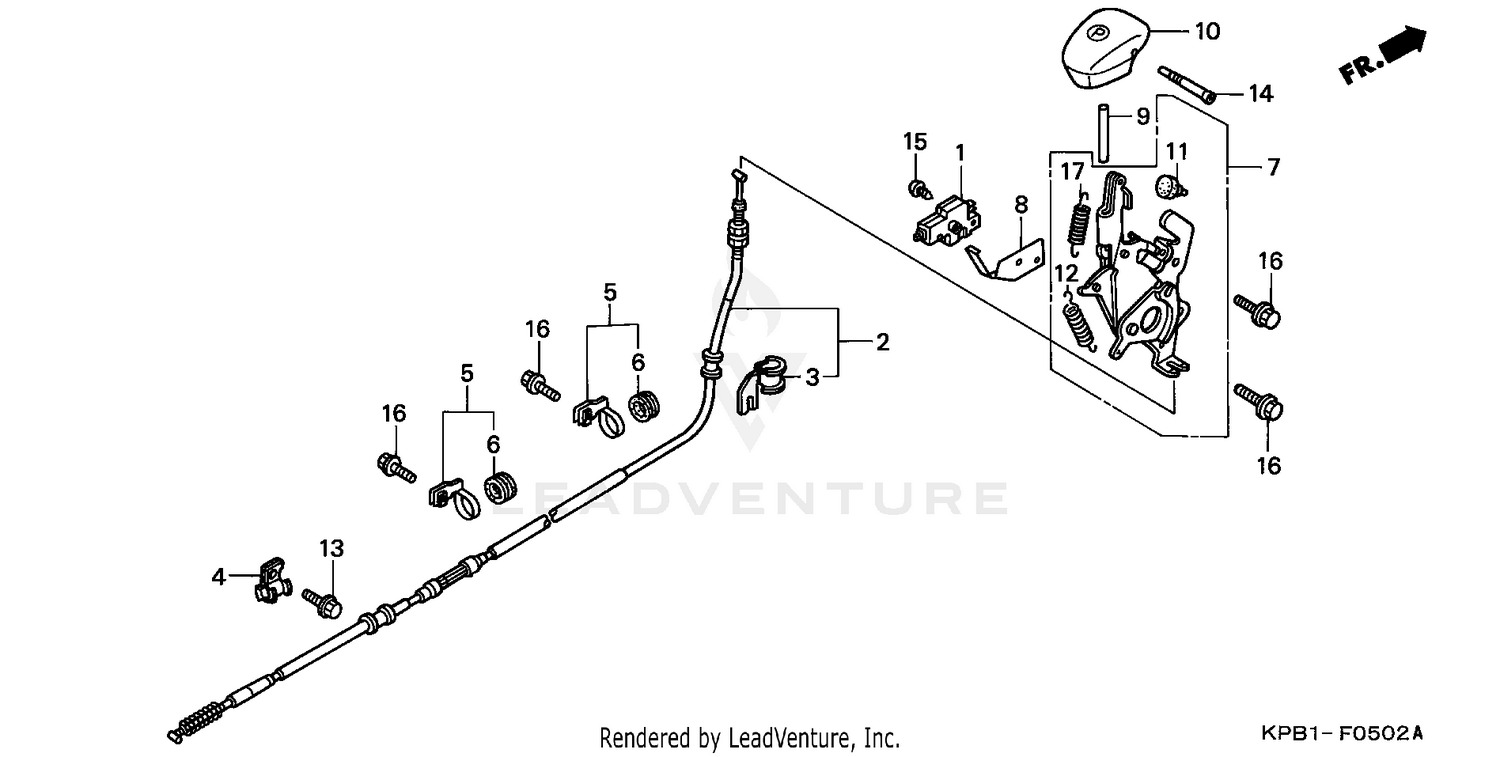

Parking Brake Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
SWITCH ASSY., CLUTCH
35330-MB0-003
|
$22.05 | ||
|
Available to order. Add to View Price |
|||
|
#2
CABLE, PARKING BRAKE
43450-KPB-000
|
$33.24 | ||
|
Unavailable |
|||
|
#3
CLAMP, RR. BRAKE CABLE
43455-KPB-000
|
$3.98 | ||
|
Unavailable |
|||
|
#4
CLAMP B, RR. BRAKE CABLE
43456-KPB-000
|
$7.20 | ||
|
Available to order. Add to View Price |
|||
|
#5
GUIDE ASSY., BRAKE CABLE
43460-GCK-000
|
$3.81 | ||
|
Unavailable |
|||
|
#6
GUIDE, CABLE (INNER)
45466-329-000
|
$3.71 | ||
|
Available to order. Add to View Price |
|||
|
#7
LEVER, HAND BRAKE
47105-KPB-000
Superseded by 47105-KPB-010
|
$95.81 | ||
|
Available to order. Add to View Price |
|||
|
#8
ARM, HAND BRAKE SWITCH
47125-KPB-000
|
$3.02 | ||
|
Available to order. Add to View Price |
|||
|
#9
ROD, PUSH
47140-KPB-000
|
$3.70 | ||
|
Unavailable |
|||
|
#10
GRIP, HAND BRAKE
47150-KPB-000
|
$14.25 | ||
|
Available to order. Add to View Price |
|||
|
#11
RUBBER, STAND STOPPER
50505-GA7-730
|
$2.55 | ||
|
Available to order. Add to View Price |
|||
|
#12
SPRING
50513-GBL-000
|
$3.80 | ||
|
Available to order. Add to View Price |
|||
|
#13
BOLT, FLANGE (6X12)
90118-958-003
|
$4.07 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#14
SCREW, SPECIAL (5MM)
90131-KPB-000
|
$4.53 | ||
|
Available to order. Add to View Price |
|||
|
#15
SCREW, PAN (4X10) SCREW, PAN (4X12)
93500-04010-0A
|
$0.95 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#16
BOLT, FLANGE (6X12) BOLT, SPECIAL (6X12)
95701-06012-00
|
$2.09 | ||
|
Available to order. Add to View Price |
|||
|
#17
SPRING, PARKING LEVER
47160-KPB-000
|
$2.15 | ||
|
Available to order. Add to View Price |
|||
