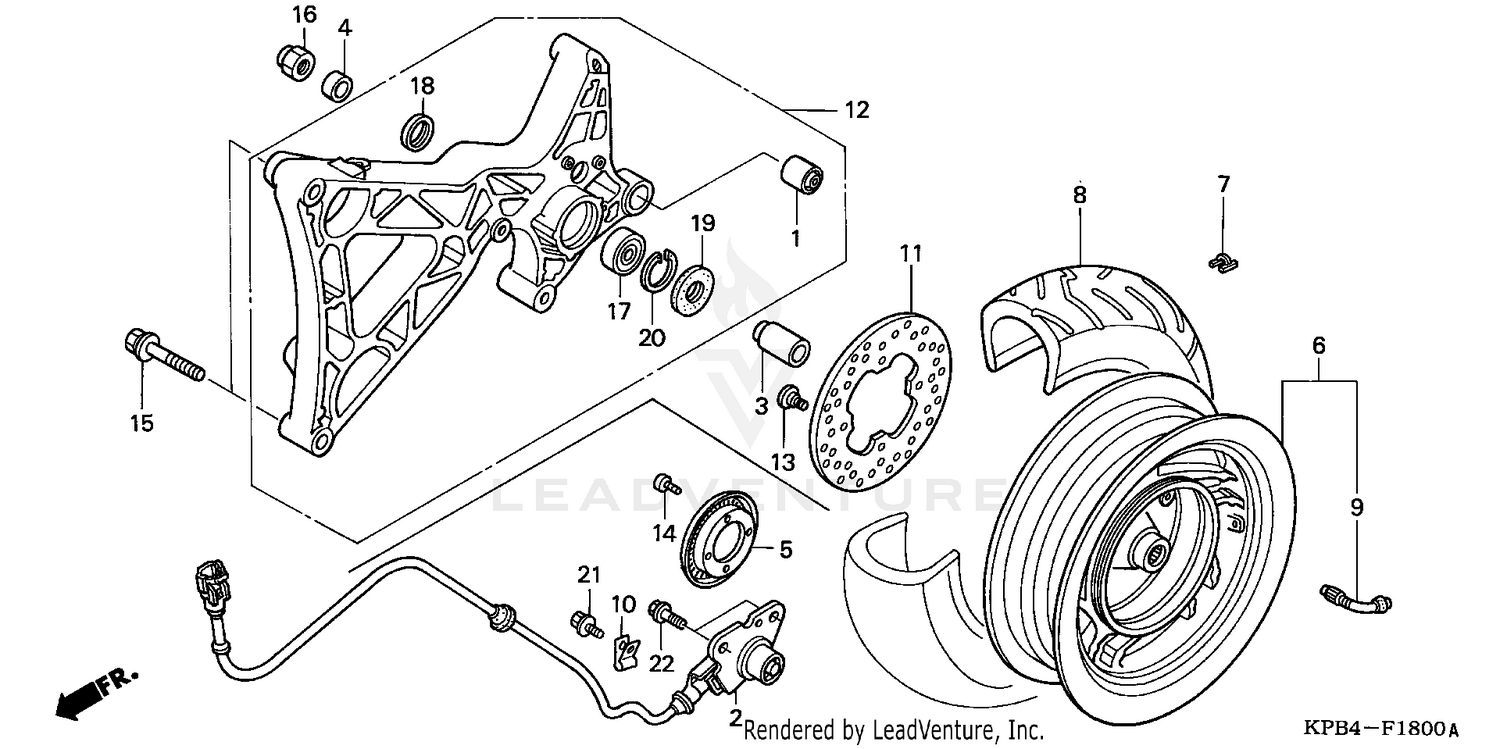

Rear Wheel Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
BUSH, SHOCK ABSORBER
11203-KAB-000
|
$10.96 | ||
|
Available to order. Add to View Price |
|||
|
#2
SENSOR, RR. WHEEL SPEED
38510-KPB-751
|
$211.08 | ||
|
Available to order. Add to View Price |
|||
|
#3
COLLAR, RR. AXLE
42311-KFG-J00
|
$27.07 | ||
|
Unavailable |
|||
|
#4
COLLAR B, RR. AXLE
42312-KM1-000
|
$8.31 | ||
|
Available to order. Add to View Price |
|||
|
#5
RING, PULSER
42515-KPB-750
|
$73.51 | ||
|
Unavailable |
|||
|
#6
WHEEL SUB-ASSY., RR. *NH146M* (ACCURATE SILVER METALLIC)
42650-KPB-750ZB
|
$638.32 | ||
|
Unavailable |
|||
|
#7
WEIGHT, BALANCE (10G)
42704-MB0-000
Superseded by 42704-MCF-D60
|
$15.44 | ||
|
Available to order. Add to View Price |
|||
|
#7
WEIGHT, BALANCE (10) WEIGHT, BALANCE (20G)
42704-MCF-D60
|
$15.44 | ||
|
Unavailable |
|||
|
#7
WEIGHT, BALANCE (20G)
42705-MB0-000
Superseded by 42705-MCF-D60
|
$17.56 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#7
WEIGHT, BALANCE (30G)
42706-MB0-000
Superseded by 42706-MCF-D60
|
$17.55 | ||
|
Available to order. Add to View Price |
|||
|
#8
TIRE, RR. (130/70-12) (56L HOOP B02) (BS)
42711-KFG-904
|
$88.22 | ||
|
Available to order. Add to View Price |
|||
|
#9
VALVE, RIM (BS)
42753-KJ9-003
|
$21.20 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#10
CLIP, RR. SENSOR CABLE
43158-KPB-750
|
$2.92 | ||
|
Unavailable |
|||
|
#11
DISK, RR. BRAKE
43251-KFK-000
|
$274.94 | ||
|
Unavailable |
|||
|
#12
SWINGARM ASSY.
52000-KPB-000
|
$341.20 | ||
|
Available to order. Add to View Price |
|||
|
#13
BOLT, FR. DISK (8X24) (SAGA)
90105-KL8-741
|
$7.42 | ||
|
Available to order. Add to View Price |
|||
|
#14
BOLT, TORX (5X10)
90131-KPB-751
|
$3.04 | ||
|
Available to order. Add to View Price |
|||
|
#15
BOLT-WASHER (10X55)
90132-KPB-000
|
$2.16 | ||
|
Available to order. Add to View Price |
|||
|
#16
NUT, U (16MM)
90305-KBN-901
|
$24.38 | ||
|
Available to order. Add to View Price |
|||
|
#17
BEARING, RADIAL BALL (6303) BEARING, RADIAL BALL (6303UU)
91051-KS4-003
|
$46.44 | ||
|
Available to order. Add to View Price |
|||
|
#18
DUST SEAL (37X25X6)
91258-HB3-003
|
$9.11 | ||
|
Available to order. Add to View Price |
|||
|
#19
SEAL (25X47X5)
91259-KM1-003
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#20
CIRCLIP (INNER) (47MM)
94520-47000
|
$2.67 | ||
|
Available to order. Add to View Price |
|||
|
#21
BOLT, FLANGE (6X10)
96001-06010-00
|
$1.70 | ||
|
Available to order. Add to View Price |
|||
|
#22
BOLT, FLANGE (8X16)
96300-08016-00
|
$1.60 | ||
|
Available to order. Add to View Price |
|||
