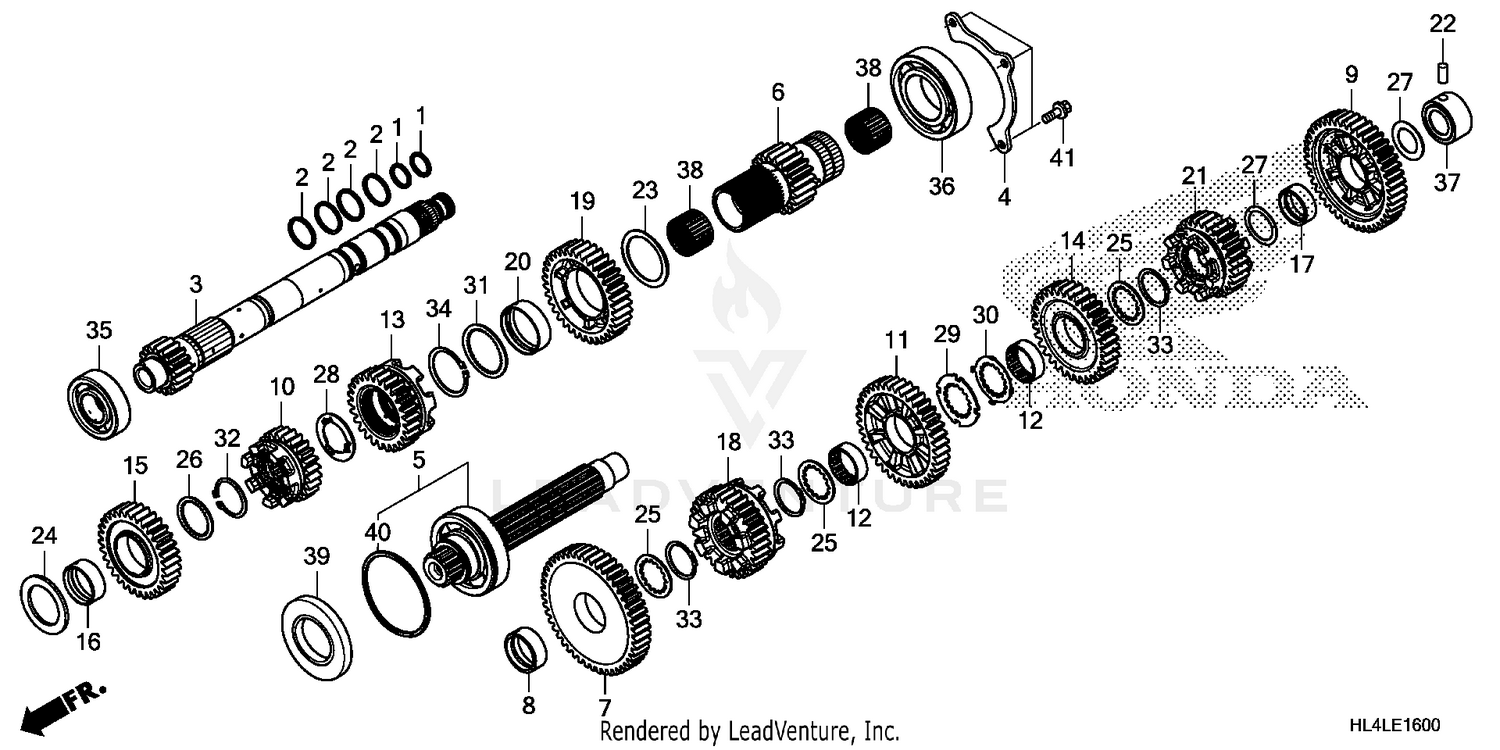

Transmission Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
SEAL, RING (21.2MM)
22814-RGC-003
|
$12.60 | ||
|
Available to order. Add to View Price |
|||
|
#2
RING, SEAL (28MM)
22815-MGE-D01
|
$4.75 | ||
|
Available to order. Add to View Price |
|||
|
#3
MAINSHAFT (INNER)
23210-HL4-000
|
$345.51 | ||
|
Available to order. Add to View Price |
|||
|
#4
PLATE, BEARING SETTING
23213-HL4-000
|
$6.42 | ||
|
Available to order. Add to View Price |
|||
|
#5
COUNTERSHAFT
23220-HL4-000
|
$183.53 | ||
|
Available to order. Add to View Price |
|||
|
#6
MAINSHAFT (OUTER) (21T)
23231-HL4-000
|
$279.45 | ||
|
Available to order. Add to View Price |
|||
|
#7
GEAR, COUNTERSHAFT FIRST (47T)
23421-HL4-000
|
$132.56 | ||
|
Available to order. Add to View Price |
|||
|
#8
COLLAR (30X35X13)
23422-HL4-000
|
$20.25 | ||
|
Available to order. Add to View Price |
|||
|
#9
GEAR, COUNTERSHAFT SECOND (43T)
23441-HL4-000
|
$148.69 | ||
|
Available to order. Add to View Price |
|||
|
#10
GEAR, MAINSHAFT THIRD (24T)
23451-HL4-000
|
$134.29 | ||
|
Available to order. Add to View Price |
|||
|
#11
GEAR, COUNTERSHAFT THIRD (38T)
23461-HL4-000
|
$142.04 | ||
|
Available to order. Add to View Price |
|||
|
#12
COLLAR, SPLINE (30X11)
23462-MAT-000
|
$26.27 | ||
|
Available to order. Add to View Price |
|||
|
#13
GEAR, MAINSHAFT FOURTH (26T)
23471-HL4-000
|
$140.95 | ||
|
Available to order. Add to View Price |
|||
|
#14
GEAR, COUNTERSHAFT FOURTH (32T)
23481-HL4-000
|
$136.51 | ||
|
Available to order. Add to View Price |
|||
|
#15
GEAR, MAINSHAFT FIFTH (32T)
23491-HL4-000
|
$136.51 | ||
|
Available to order. Add to View Price |
|||
|
#16
COLLAR (32X35X13.5)
23492-HL4-000
|
$18.87 | ||
|
Available to order. Add to View Price |
|||
|
#17
COLLAR (22X25X13)
23495-HL4-000
|
$15.33 | ||
|
Available to order. Add to View Price |
|||
|
#18
GEAR, COUNTERSHAFT FIFTH (31T)
23501-HL4-000
|
$153.07 | ||
|
Available to order. Add to View Price |
|||
|
#19
GEAR, MAINSHAFT SIXTH (35T)
23511-HL4-000
|
$137.89 | ||
|
Available to order. Add to View Price |
|||
|
#20
COLLAR (40X43X12.5)
23512-MGE-D00
|
$16.89 | ||
|
Available to order. Add to View Price |
|||
|
#21
GEAR, COUNTERSHAFT SIXTH (28T)
23521-HL4-000
|
$143.22 | ||
|
Available to order. Add to View Price |
|||
|
#22
PIN, GEARSHIFT FORK GUIDE
24261-283-000
|
$5.29 | ||
|
Available to order. Add to View Price |
|||
|
#23
WASHER (40.2X51X1)
90411-MGE-D00
|
$13.47 | ||
|
Available to order. Add to View Price |
|||
|
#24
WASHER (32MM)
90445-KE5-000
|
$11.16 | ||
|
Available to order. Add to View Price |
|||
|
#25
WASHER, SPLINE (30X38X1.5)
90452-HL4-000
|
$3.47 | ||
|
Available to order. Add to View Price |
|||
|
#26
WASHER, SPLINE (32X17X1.667)
90452-MCA-000
|
$3.15 | ||
|
Available to order. Add to View Price |
|||
|
#27
WASHER B, THRUST (22MM) (BLUE)
90455-ML7-000
|
$6.11 | ||
|
Available to order. Add to View Price |
|||
|
#28
WASHER, SPECIAL (28X42X2)
90463-HL4-000
|
$6.47 | ||
|
Available to order. Add to View Price |
|||
|
#29
WASHER, SPLINE (30MM)
90463-MAT-000
|
$5.22 | ||
|
Available to order. Add to View Price |
|||
|
#30
WASHER, LOCK (30MM)
90464-MAT-000
|
$7.67 | ||
|
Available to order. Add to View Price |
|||
|
#31
WASHER, SPLINE (40MM)
90493-MGE-D00
|
$9.22 | ||
|
Available to order. Add to View Price |
|||
|
#32
CIRCLIP (32MM)
90604-MCA-780
|
$3.95 | ||
|
Available to order. Add to View Price |
|||
|
#33
CIRCLIP (30MM)
90604-MM5-000
|
$5.62 | ||
|
Available to order. Add to View Price |
|||
|
#34
CIRCLIP (40MM)
90605-MGE-D00
|
$7.93 | ||
|
Available to order. Add to View Price |
|||
|
#35
BEARING, RADIAL BALL (63/22U)
91010-HL4-003
|
$37.33 | ||
|
Available to order. Add to View Price |
|||
|
#36
BEARING, RADIAL BALL (40X76X18)
91023-HL4-003
|
$58.33 | ||
|
Available to order. Add to View Price |
|||
|
#37
BEARING, NEEDLE (22MM)
91023-MM5-641
|
$32.76 | ||
|
Available to order. Add to View Price |
|||
|
#38
BEARING, NEEDLE (28X32X21)
91024-HL4-003
|
$15.91 | ||
|
Available to order. Add to View Price |
|||
|
#39
OIL SEAL (39X72X8.4)
91207-HL4-003
|
$23.91 | ||
|
Available to order. Add to View Price |
|||
|
#40
RING, SNAP (72MM)
94560-72200
|
$3.92 | ||
|
Available to order. Add to View Price |
|||
|
#41
BOLT, FLANGE (6X16) (Honda Code 2410892)
95701-06016-00
|
$1.70 | ||
|
Available to order. Add to View Price |
|||
