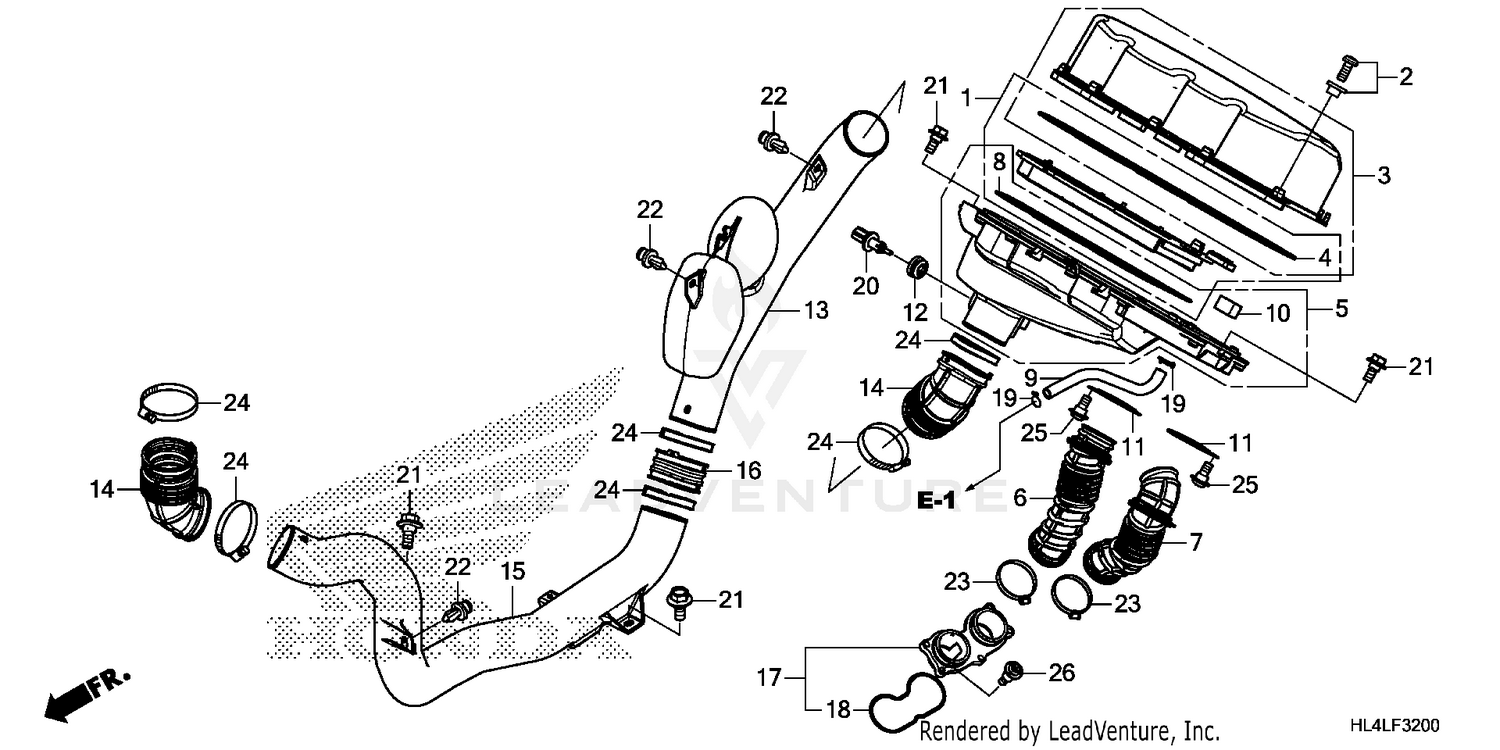

Air Cleaner Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
SET, ELEMENT COMP
17215-HL4-A02
Superseded by 17215-HL4-AK0
|
$65.56 | ||
|
Available to order. Add to View Price |
|||
|
#2
SCREW, SPL (5X12)
17216-HL4-A00
Superseded by 90102-HL4-AK0
|
$5.87 | ||
|
Available to order. Add to View Price |
|||
|
#3
COVER SUB-ASSY., AIR CLEANER
17220-HL4-A01
|
$62.33 | ||
|
Available to order. Add to View Price |
|||
|
#4
SEAL, COVER
17222-HL4-A01
|
$18.95 | ||
|
Available to order. Add to View Price |
|||
|
#5
CASE SUB-ASSY., AIR CLEANER
17230-HL4-A01
|
$99.55 | ||
|
Available to order. Add to View Price |
|||
|
#6
TUBE A, AIR CLEANER CONNECTING
17232-HL4-A00
|
$35.62 | ||
|
Available to order. Add to View Price |
|||
|
#7
TUBE B, AIR CLEANER
17233-HL4-A00
|
$63.60 | ||
|
Available to order. Add to View Price |
|||
|
#8
SEAL, CASE
17234-HL4-A01
|
$23.93 | ||
|
Available to order. Add to View Price |
|||
|
#9
TUBE, BREATHER
17235-HL4-A00
|
$10.55 | ||
|
Available to order. Add to View Price |
|||
|
#10
FILTER, BREATHER ROOM
17237-HL4-A00
|
$0.67 | ||
|
Available to order. Add to View Price |
|||
|
#11
PLATE, RING
17238-HL4-A00
|
$4.35 | ||
|
Available to order. Add to View Price |
|||
|
#12
GROMMET, TA SENSOR
17239-HL4-A00
|
$1.31 | ||
|
Available to order. Add to View Price |
|||
|
#13
DUCT A, SNORKEL
17241-HL4-A01
|
$46.11 | ||
|
Available to order. Add to View Price |
|||
|
#14
TUBE A, SNORKEL
17242-HL4-A00
|
$18.18 | ||
|
Available to order. Add to View Price |
|||
|
#15
DUCT B, SNORKEL
17243-HL4-F00
Superseded by 17243-HL4-F02
|
$61.82 | ||
|
Unavailable |
|||
|
#16
TUBE B, SNORKEL
17244-HL4-F00
|
$3.05 | ||
|
Available to order. Add to View Price |
|||
|
#17
PLATE ASSY., THROTTLE BODY SETTING
17250-HL4-A00
|
$10.89 | ||
|
Available to order. Add to View Price |
|||
|
#18
SEAL, SETTING PLATE
17252-HL4-305
|
$4.42 | ||
|
Available to order. Add to View Price |
|||
|
#19
CLIP, OIL DRAIN TUBE
17316-611-000
|
$11.18 | ||
|
Available to order. Add to View Price |
|||
|
#20
SENSOR ASSY., AIR TEMPERATURE
37880-RE1-Z01
|
$42.87 | ||
|
Available to order. Add to View Price |
|||
|
#21
BOLT, FLANGE (6MM)
90111-162-000
|
$3.29 | ||
|
Available to order. Add to View Price |
|||
|
#22
CLIP, SPLASH GUARD (Honda Code 3795994)
90653-HC4-900
|
$0.67 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#23
BAND, AIR CLEANER CONNECTING TUBE (62)
90662-HN5-M00
|
$1.67 | ||
|
Available to order. Add to View Price |
|||
|
#24
BAND, AIR CLEANER ELEMENT
90680-HP5-600
|
$12.82 | ||
|
Available to order. Add to View Price |
|||
|
#25
SCREW, PAN (5MM)
91508-HL4-A00
|
$0.53 | ||
|
Available to order. Add to View Price |
|||
|
#26
SCREW, PAN (5MM)
91508-MM5-000
|
$5.13 | ||
|
Available to order. Add to View Price |
|||
