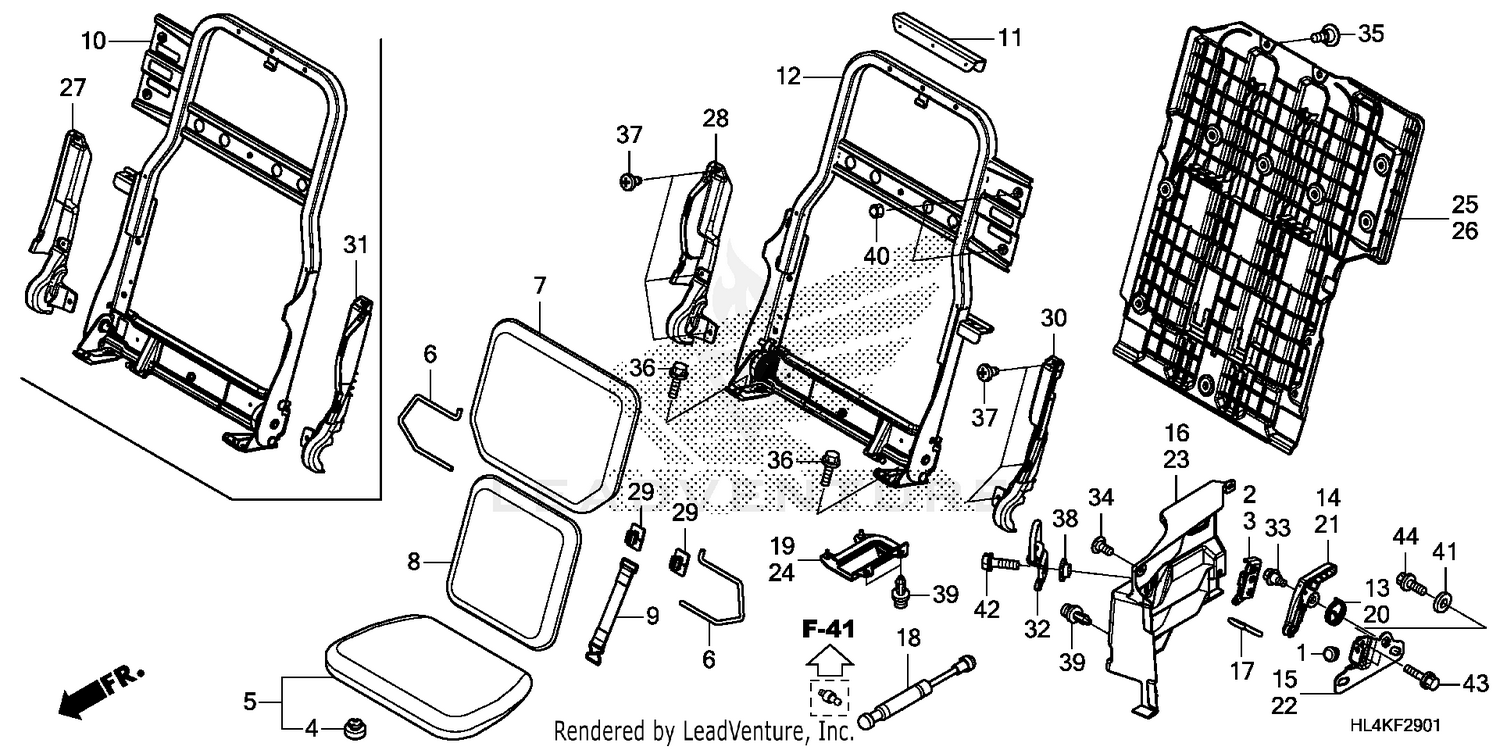

Rear Seat Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
RUBBER, STOPPER
47117-196-000
|
$3.20 | ||
|
Available to order. Add to View Price |
|||
|
#2
LATCH, R. DOOR
67236-HL1-A01
|
$18.35 | ||
|
Available to order. Add to View Price |
|||
|
#3
LATCH, L. DOOR
67237-HL1-A01
|
$18.58 | ||
|
Available to order. Add to View Price |
|||
|
#4
RUBBER B, SEAT STOPPER
77215-GC2-000
|
$6.35 | ||
|
Available to order. Add to View Price |
|||
|
#5
CUSHION ASSY., RR. SEAT
77500-HL3-A01
|
$103.78 | ||
|
Available to order. Add to View Price |
|||
|
#6
WIRE (A)
77626-HL3-A01
|
$5.16 | ||
|
Available to order. Add to View Price |
|||
|
#7
CUSHION ASSY. (UPPER)
77630-HL4-A01
|
$89.58 | ||
|
Available to order. Add to View Price |
|||
|
#8
CUSHION ASSY. (LOWER)
77631-HL3-A01
|
$125.20 | ||
|
Available to order. Add to View Price |
|||
|
#9
STRAP ASSY., HOOK
77632-HL3-A01
|
$19.33 | ||
|
Available to order. Add to View Price |
|||
|
#10
FRAME, R. RR. SEAT
77800-HL4-A02
|
$243.38 | ||
|
Available to order. Add to View Price |
|||
|
#11
GUARD, SEAT-BACK PIPE
77806-HL3-A01
|
$5.62 | ||
|
Available to order. Add to View Price |
|||
|
#12
FRAME, L. RR. SEAT
77850-HL4-A02
|
$232.51 | ||
|
Available to order. Add to View Price |
|||
|
#13
SPRING, R. SEAT LATCH
77902-HL3-A00
|
$8.20 | ||
|
Available to order. Add to View Price |
|||
|
#14
HANDLE, R. SEAT LATCH
77903-HL3-A00
|
$8.82 | ||
|
Available to order. Add to View Price |
|||
|
#15
BRACKET, R. SEAT LATCH
77904-HL4-A00
|
$12.91 | ||
|
Available to order. Add to View Price |
|||
|
#16
COVER, R. SEAT LATCH *NH1* (BLACK)
77905-HL4-A00ZA
|
$8.98 | ||
|
Available to order. Add to View Price |
|||
|
#17
ROD, SEAT LATCH
77906-HL3-A00
|
$1.07 | ||
|
Available to order. Add to View Price |
|||
|
#18
DAMPER, RR. SEAT
77908-HL3-A01
|
$35.44 | ||
|
Available to order. Add to View Price |
|||
|
#19
RUBBER, R. RR. SEAT DAMPER
77909-HL4-A00
|
$4.47 | ||
|
Available to order. Add to View Price |
|||
|
#20
SPRING, L. SEAT LATCH
77952-HL3-A00
|
$8.20 | ||
|
Available to order. Add to View Price |
|||
|
#21
HANDLE, L. SEAT LATCH
77953-HL3-A00
|
$8.82 | ||
|
Available to order. Add to View Price |
|||
|
#22
BRACKET, L. SEAT LATCH
77954-HL4-A00
|
$10.93 | ||
|
Available to order. Add to View Price |
|||
|
#23
COVER, L. SEAT LATCH *NH1* (BLACK)
77955-HL4-A00ZA
|
$8.98 | ||
|
Available to order. Add to View Price |
|||
|
#24
RUBBER, L. RR. SEAT DAMPER
77959-HL4-A00
|
$4.47 | ||
|
Available to order. Add to View Price |
|||
|
#25
PLATE, R. FR. TOP BED
81510-HL4-A01
|
$95.49 | ||
|
Available to order. Add to View Price |
|||
|
#26
PLATE, L. FR. TOP BED
81511-HL4-A01
|
$95.49 | ||
|
Available to order. Add to View Price |
|||
|
#27
COVER, R. RR. SEAT SPRING
81512-HL3-A01
|
$7.33 | ||
|
Available to order. Add to View Price |
|||
|
#28
COVER, R. RR. SEAT SPRING
81512-HL4-A01
|
$7.16 | ||
|
Available to order. Add to View Price |
|||
|
#29
CLIP, BED TOP
81514-HL3-A01
|
$2.15 | ||
|
Available to order. Add to View Price |
|||
|
#30
COVER, L. RR. SEAT SPRING
81562-HL3-A01
|
$7.02 | ||
|
Available to order. Add to View Price |
|||
|
#31
COVER, L. RR. SEAT SPRING
81562-HL4-A01
|
$6.85 | ||
|
Available to order. Add to View Price |
|||
|
#32
HOOK ASSY., TIE DOWN
84614-S06-000
|
$14.00 | ||
|
Available to order. Add to View Price |
|||
|
#33
BOLT, FLANGE (6MM)
90101-HL3-A00
|
$2.24 | ||
|
Available to order. Add to View Price |
|||
|
#34
SCREW, SPLASH GUARD
90103-HC4-770
|
$2.55 | ||
|
Available to order. Add to View Price |
|||
|
#35
SCREW, SPECIAL (6MM)
90103-HF1-670
|
$7.64 | ||
|
Available to order. Add to View Price |
|||
|
#36
BOLT, FLANGE (8X20)
90103-MW3-670
|
$4.76 | ||
|
Available to order. Add to View Price |
|||
|
#37
SCREW, TAPPING (5X10)
90134-SE3-003
|
$4.37 | ||
|
Available to order. Add to View Price |
|||
|
#38
WASHER, RR. COWL SETTING
90511-MAT-000
|
$3.60 | ||
|
Available to order. Add to View Price |
|||
|
#39
CLIP, SPLASH GUARD (Honda Code 3795994)
90653-HC4-900
|
$0.67 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#40
NUT, CAP (6MM)
94021-06070-0S
|
$1.70 | ||
|
Available to order. Add to View Price |
|||
|
#41
WASHER, PLAIN (8MM)
94103-08800
|
$0.98 | ||
|
Unavailable |
|||
|
#42
BOLT, FLANGE (6X20)
95701-06020-07
|
$1.70 | ||
|
Available to order. Add to View Price |
|||
|
#43
BOLT, FLANGE (6X20)
95701-06020-08
|
$0.40 | ||
|
Unavailable |
|||
|
#44
BOLT, FLANGE (8X16)
95701-08016-08
|
$1.83 | ||
|
Unavailable |
|||
