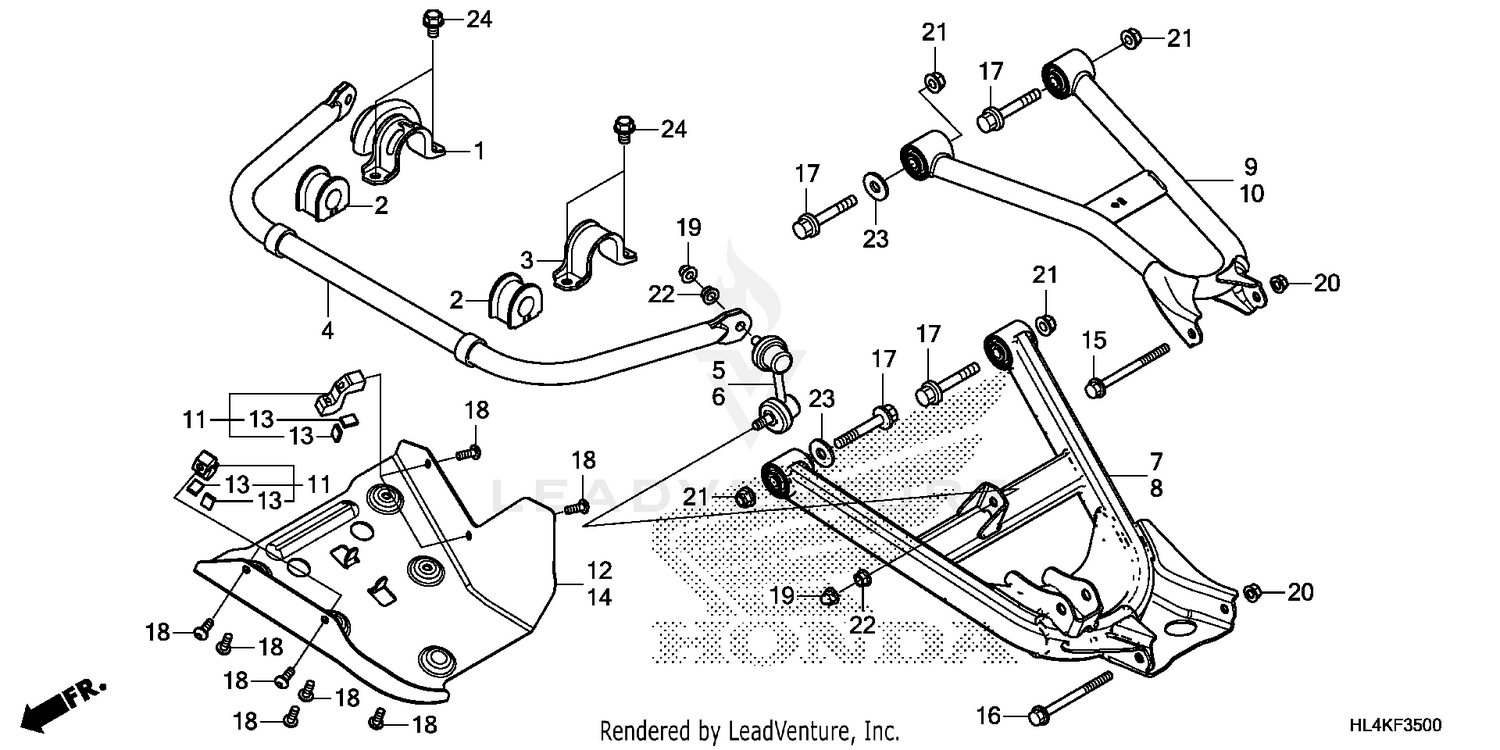

Rear Arm@rear Stabilizer Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
HOLDER, STABILIZER BUSH
52305-HL4-A00
|
$17.91 | ||
|
Available to order. Add to View Price |
|||
|
#2
BUSH, STABILIZER HOLDER
52306-SJC-A01
|
$6.78 | ||
|
Available to order. Add to View Price |
|||
|
#3
HOLDER, STABILIZER BUSH
52308-SJC-A00
|
$22.65 | ||
|
Available to order. Add to View Price |
|||
|
#4
SPRING, RR. STABILIZER (25.4MMXT3.5)
52310-HL4-A01
|
$95.05 | ||
|
Available to order. Add to View Price |
|||
|
#5
LINK, R. RR. STABILIZER
52320-S5A-013
|
$33.15 | ||
|
Available to order. Add to View Price |
|||
|
#6
LINK, L. RR. STABILIZER
52321-S5A-013
|
$40.12 | ||
|
Available to order. Add to View Price |
|||
|
#7
ARM ASSY., R. RR. (LOWER) (TYPE2)
52350-HL4-F00ZC
|
$573.77 | ||
|
Available to order. Add to View Price |
|||
|
#8
ARM ASSY., L. RR. (LOWER) (TYPE2)
52360-HL4-F00ZC
|
$599.55 | ||
|
Available to order. Add to View Price |
|||
|
#9
ARM ASSY., R. RR. (UPPER) (TYPE2)
52370-HL4-F00ZC
|
$435.35 | ||
|
Available to order. Add to View Price |
|||
|
#10
ARM ASSY., L. RR. (UPPER) (TYPE2)
52380-HL4-F00ZC
|
$435.35 | ||
|
Available to order. Add to View Price |
|||
|
#11
BRACKET, RR. GUARD
52710-HL4-A00
|
$7.75 | ||
|
Available to order. Add to View Price |
|||
|
#12
GUARD, R. RR. ARM
52711-HL4-F00
|
$100.11 | ||
|
Available to order. Add to View Price |
|||
|
#13
RUBBER, RR. BRACKET
52718-HL4-A00
|
$7.84 | ||
|
Available to order. Add to View Price |
|||
|
#14
GUARD, L. RR. ARM
52721-HL4-F00
|
$100.11 | ||
|
Available to order. Add to View Price |
|||
|
#15
BOLT, FLANGE (10X120) (SATO)
90009-371-015
|
$12.98 | ||
|
Available to order. Add to View Price |
|||
|
#16
BOLT, FLANGE (10X153)
90103-MY1-000
|
$17.47 | ||
|
Available to order. Add to View Price |
|||
|
#17
BOLT, FLANGE (12X70)
90122-HL1-A00
|
$5.33 | ||
|
Available to order. Add to View Price |
|||
|
#18
BOLT, SOCKET (8X22)
90122-HL4-A00
|
$0.65 | ||
|
Available to order. Add to View Price |
|||
|
#19
NUT, FLANGE CAP (10MM)
90201-HA0-000
|
$8.09 | ||
|
Available to order. Add to View Price |
|||
|
#19
NUT, CAP (10MM)
90202-HA0-000
Superseded by 90201-HA0-000
|
$8.09 | ||
|
Unavailable |
|||
|
#20
NUT, SELF-LOCK (10MM)
90305-HC0-770
|
$3.76 | ||
|
Available to order. Add to View Price |
|||
|
#21
NUT, SELF-LOCK (12MM)
90305-HC4-000
|
$5.27 | ||
|
Available to order. Add to View Price |
|||
|
#22
NUT, FLANGE (10MM)
94050-10000
|
$1.62 | ||
|
Available to order. Add to View Price |
|||
|
#23
WASHER, PLAIN (12MM)
94101-12000
|
$1.28 | ||
|
Unavailable |
|||
|
#24
BOLT, FLANGE (8X12)
95801-08012-00
|
$1.28 | ||
|
Available to order. Add to View Price |
|||
